Onkyo TX-8522 - Page 29

TX-8522

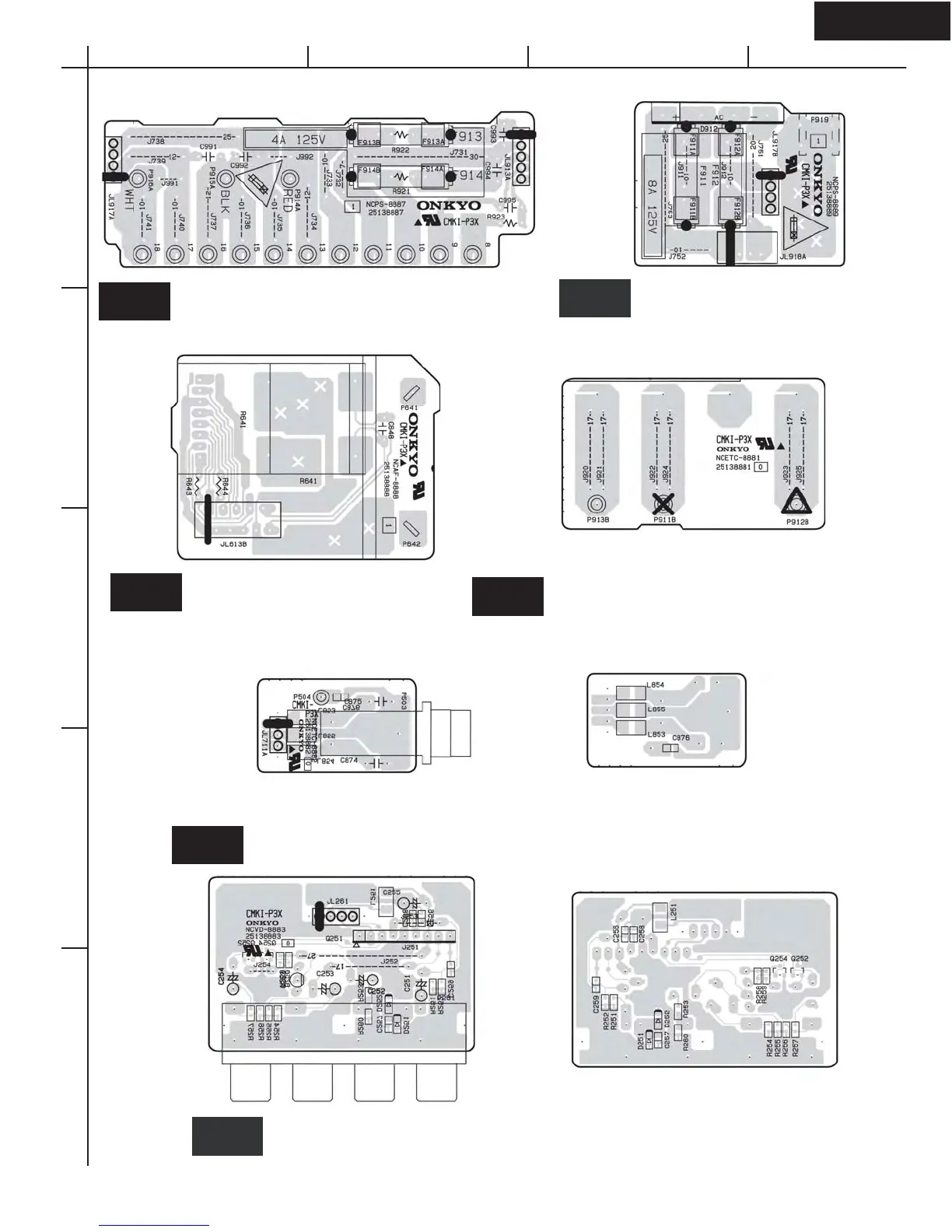

PRINTED CIRCUIT BOARD VIEW 4
U017
HEADPHONE TERMINAL PC BOARD (NAETC-8882)
COMPONENT SIDE
SOLDERING SIDE
U022
TRANSFORMER TERMINAL
PC BOARD (NAPS-8887)
U023
VOLUME PC BOARD
(NAAF-8888)
U016
TRANSFORMER TERMINAL
PC BOARD (NAETC-8881)
FUSE TERMINAL
PC BO
ARD (NAPS-8889)
U024
North American model only
U018
VIDEO TERMINAL PC BOARD (NAVD-8883)
SOLDERING SIDECOMPONENT SIDE
A
1
2
3
4
5
BCD
Reversal letter:
D901
:Soldering side parts
