Advanced Speaker Connection
56
11.4 ch Playback
The maximum 11.4 ch playback is possible when a 9 ch
internal power amplifier and 2 ch external power amplifier
are combined.
Connections
1.

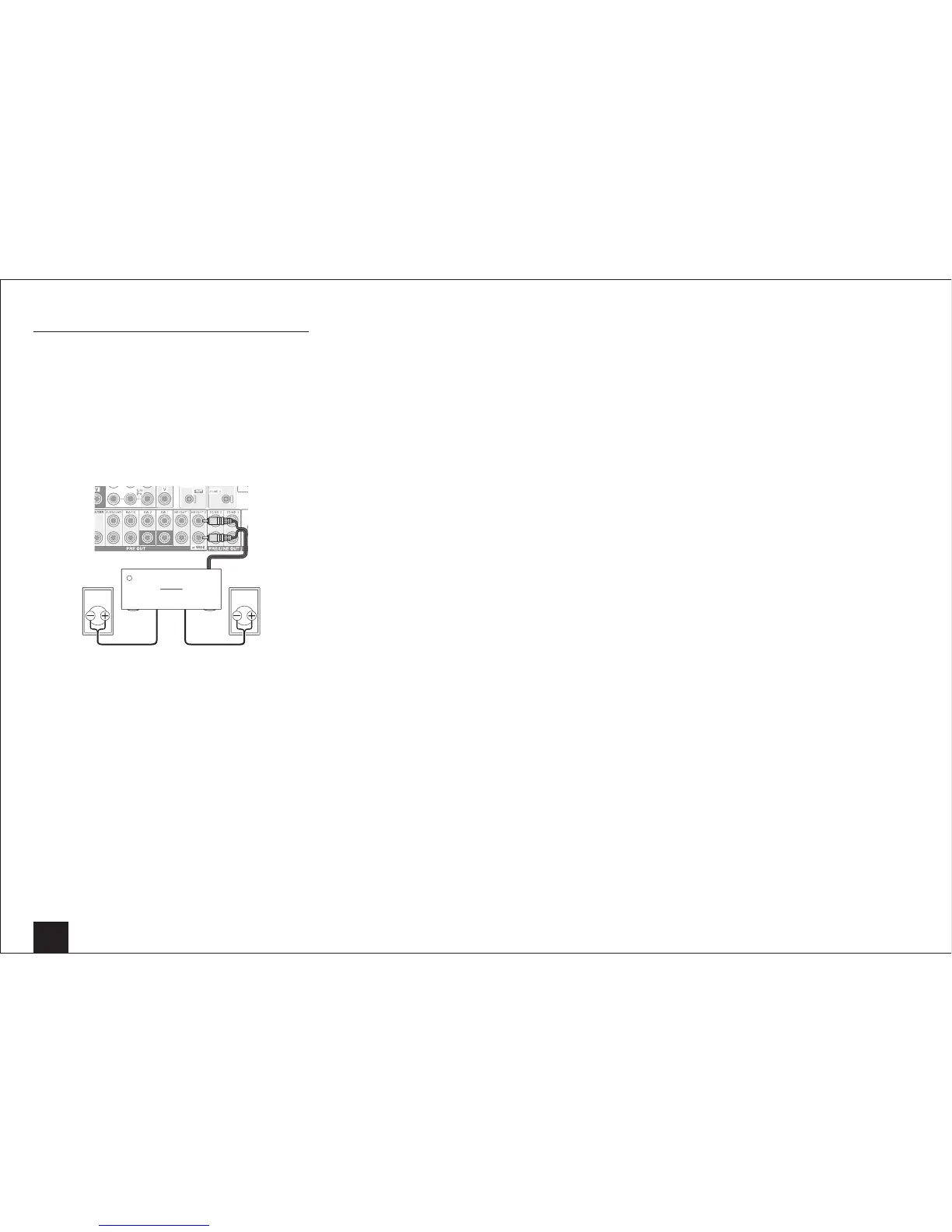

See the figure below and connect the analog audio
input terminals of an external power amplifier and the
HEIGHT 2 or WIDE PRE OUT terminals of the unit using
the RCA cable.
2.
Turn the unit on and set "11ch Playback" to "Yes".
1
After pressing Receiver, press Home on the remote
controller.
2
Select "Setup" with the cursors and press Enter.
3
With the cursors, select "2. Speaker Setup" -
"Speaker Settings" - "11ch Playback".
4
Select "Yes" with the cursors.
r
Audio will be output from "HEIGHT 2" or
"WIDE" depending on the setting of "Speaker
Configuration".
r
When "11ch Playback" is set to "Yes", audio will
not be output from the HEIGHT 2 or WIDE PRE
OUT speaker terminals.
