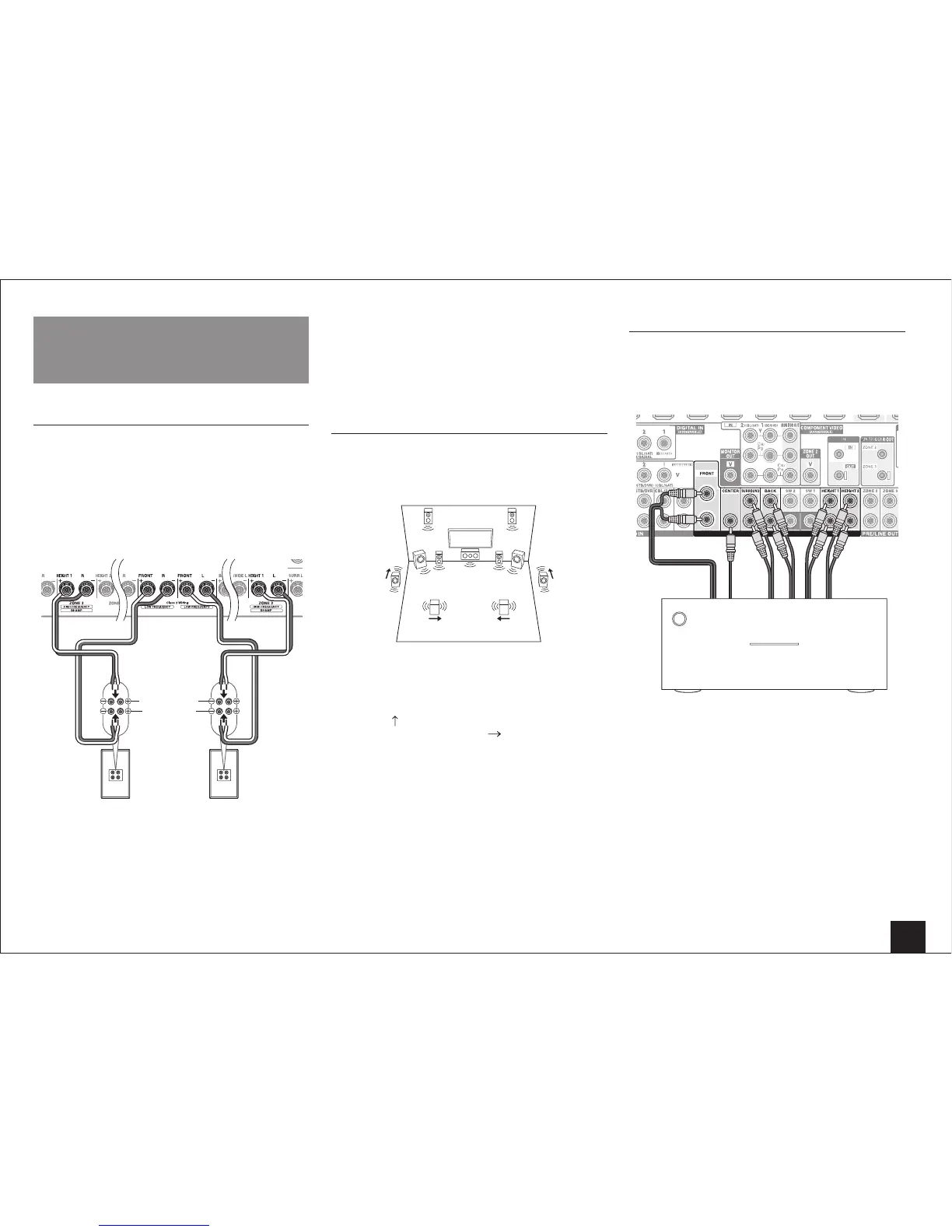

Advanced Speaker Connection
Advanced Speaker Connection
Bi-Amping
It is possible to connect speakers supporting bi-amping to
played in bi-amping.
Connections
1.
Connect as below using the FRONT terminals and
HEIGHT 1 (Bi-AMP) terminals.
Front R Front L
Tweeter (treble)
Woofer (bass)
2.
Turn the unit on and set "Speaker Setup" to "Bi-Amp".
1
After pressing RECEIVER, press HOME on the
remote controller.
2
Select "Setup" with the cursors and press ENTER.
3
"Speaker Settings" - "Front Speakers Type".
4
Select "Bi-Amp" with the cursors.
r
Before bi-amping, be sure to remove the short-
circuit connector that connects the tweeter (treble)
terminal and the woofer (bass) terminal.
r
Use speakers supporting bi-amping only. For
details, refer to the speakers' instruction manual.
Connecting Dipole Speakers
It is possible to use dipole speakers instead of surround
speakers and surround back speakers. A dipole speaker
is bidirectional speaker outputting the same sound in two
directions, for example forward and backward.
aa
bb
TV
Connections
An arrow for matching the phases (
¼
) is marked on a
dipole speaker. Place the surround speakers (a) so that
their arrows ( ) point to the TV and the surround back
speakers (b) so that their arrows ( ) point to each other.
½
Phase: A waveform position in one cycle (0 to 360 degree) of sine
wave. If the phases do not match due to mistake in speaker distance,
installation angle or positive (+)/negative (–) of wiring, sound image and
sound field may be unclear or hard of listening.
Connecting a Power Amplifier
You can connect a power amplifier to the unit and use the
unit as a pre-amplifier in order to produce a large volume
that cannot be output with the unit only. Connect the
speakers to the power amplifier. For details, refer to the
power amplifier's instruction manual.
Power amplifier
r
Set the unconnected channels to "None" in "Speaker
Configuration".
– After pressing RECEIVER, press HOME on the
remote controller. Select "Setup" with the cursors
- "Speaker Configuration" and set the unconnected
channels to "None".
