Onkyo TX-NR3009

10
En

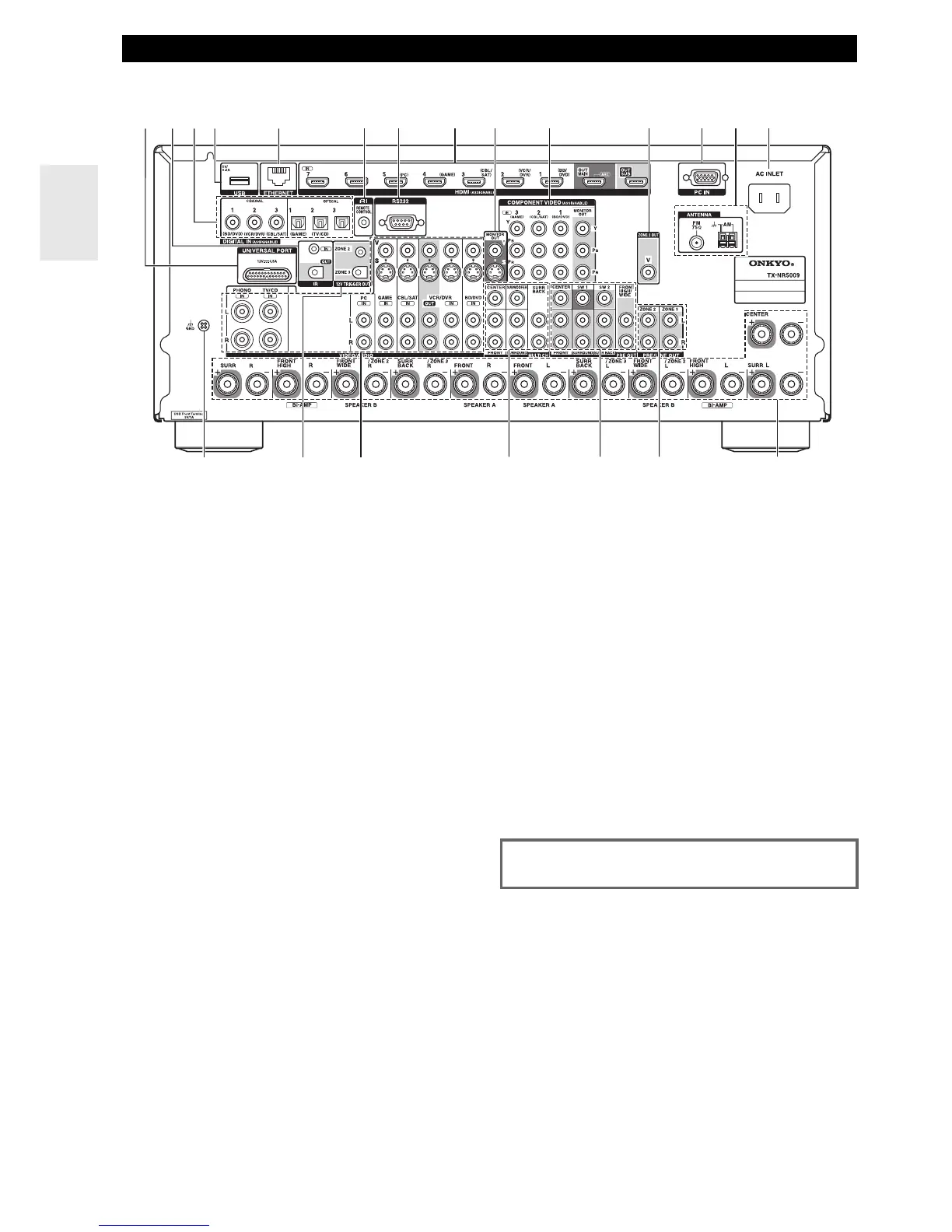

Illustration based on TX-NR5009.
a UNIVERSAL PORT jack
b IR IN and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 port
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k ZONE 2 OUT V jack
l PC IN jack
m FM ANTENNA jack and AM ANTENNA terminal
n AC INLET
o GND screw
p ZONE 2 and ZONE 3 12V TRIGGER OUT jacks
q Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN and PHONO IN)
r MULTI CH input jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R and SUBWOOFER)
s PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2)
t ZONE 2 and ZONE 3 PRE/LINE OUT jacks
u Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK/ZONE 3 L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)
Rear Panel
fg h jikml
n
o
qr
s
e
tu
b
p
adc
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 23).
