Onkyo TX-NR3009

73
En

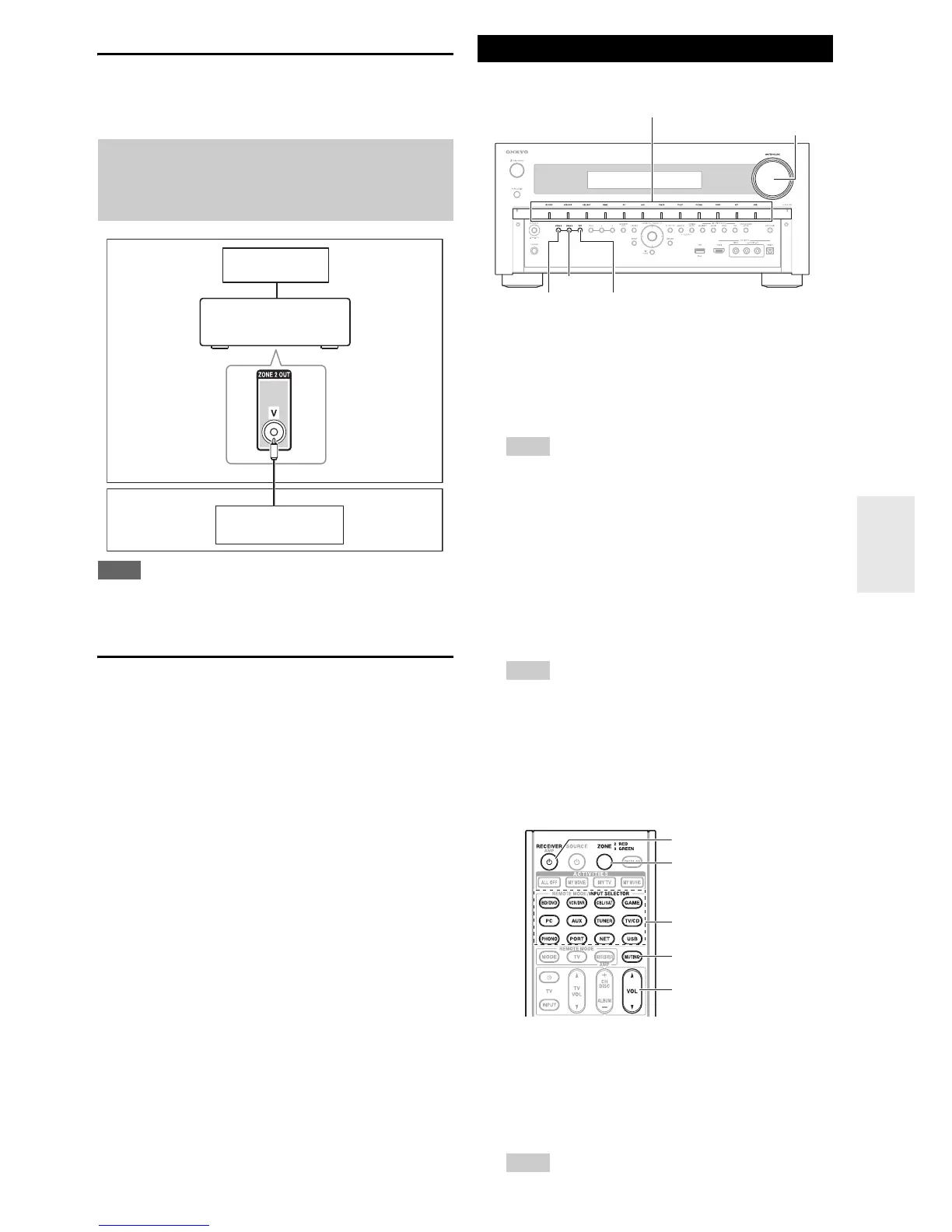

Zone 2 Video Output
The AV receiver features a composite video output for
connection to a TV in Zone 2, so you can enjoy both audio
and video in that zone.
Note
•The ZONE 2 OUT V jack outputs video from components con-
nected to composite video only.
12V Trigger Out
When Zone 2/3 is turned on, the output from the 12V
TRIGGER OUT jack goes high (+12 V and max. 150 mA
for Zone 2, +12 V and max. 25 mA for Zone 3).
Connecting this jack to a 12-volt trigger input on a
component in Zone 2/3 will make that component turn on
or off as the AV receiver turns on or off the Zone 2/3.
■ Operating on the AV receiver
■ Operating on the remote controller
To control Zone 2/3, you must press the remote
controller’s ZONE first.
ZONE turns red while Zone 2 is on, and green while
Zone 3 is on.
Hookup
• Use a composite video cable to connect the AV receiver’s
ZONE 2 OUT V jack to a composite video input on your
Zone 2 TV.
Main room
TV
Zone 2
AV receiver
TV
Controlling Zone 2/3 Components
1
To turn on Zone 2/3 and select an input source,
press ZONE 2 or ZONE 3 followed by an input
selector button within 8 seconds.
Zone 2/3 turns on, the Z2/3 indicator lights on the
display.
Tip
• The corresponding trigger output goes high (+12 V).
To select AM or FM, press TUNER input selector
and ZONE 2 or ZONE 3 repeatedly.
To select the same source as the main room’s, press
ZONE 2 or ZONE 3 twice. “Z2 Selector: Source”
or “Zone 3 Selector: Source” appears on the display.
2
To turn off Zone 2/3, press ZONE 2 or ZONE 3.
The Z2/3 indicator on the display flash. Press OFF.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press ZONE repeatedly, then point the remote
controller at the AV receiver and press
8RECEIVER.
Zone 2/3 turns on, the Z2/3 indicator lights on the
display.
Tip
• The corresponding trigger output goes high (+12 V).
ZONE 3
ZONE 2 OFF
MASTER VOLUME
Input selector buttons
8RECEIVER
MUTING
VOLq/w
ZONE
Input selector buttons
