Onkyo TX-RZ830

Diagnostic Function
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
COMMON

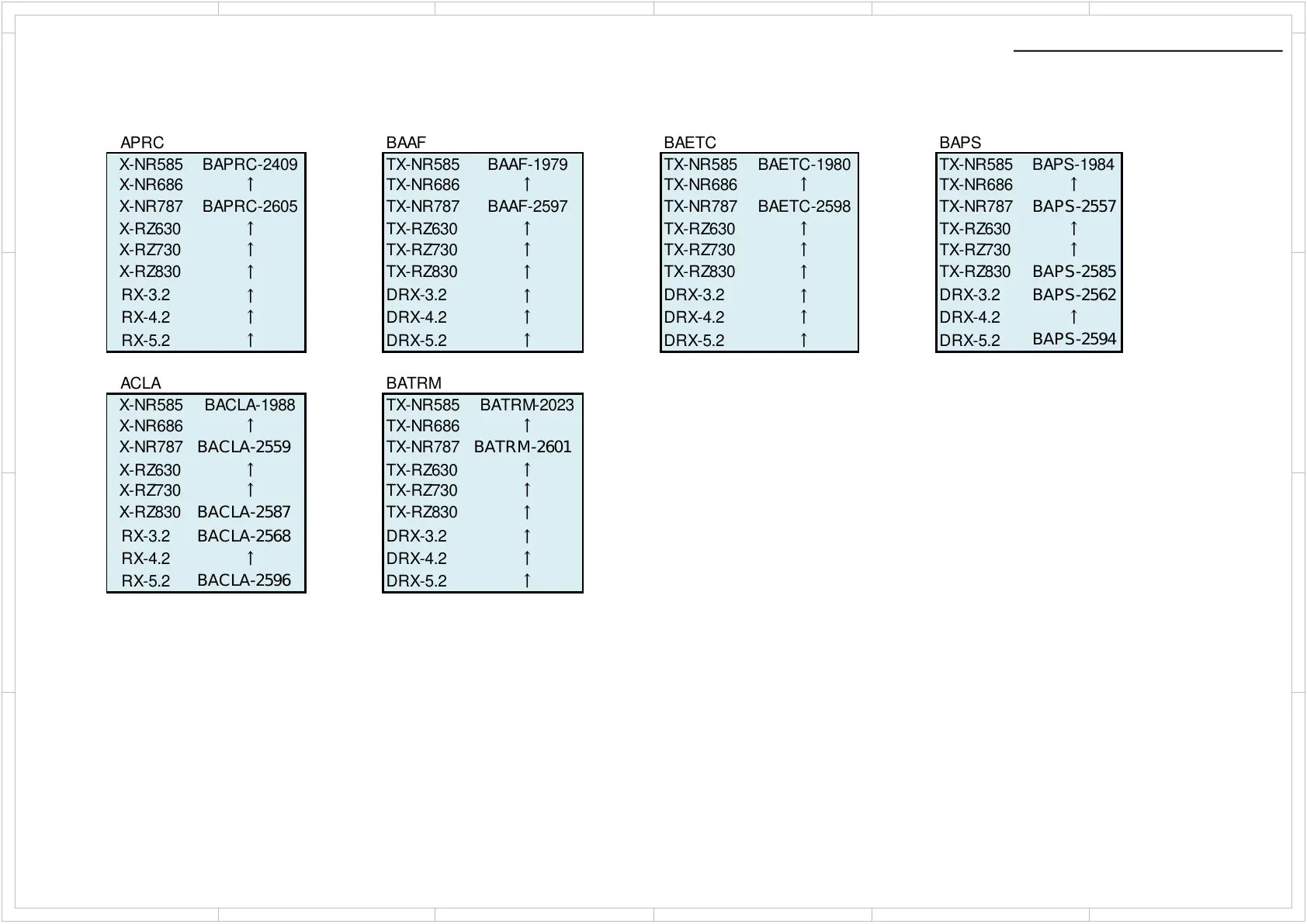

PCB Information
BAPRC BAAF BAETC BAPS
TX-NR585 BAPRC-2409 TX-NR585 BAAF-1979 TX-NR585 BAETC-1980 TX-NR585 BAPS-1984
TX-NR686 ↑ TX-NR686
↑ TX-NR686 ↑ TX-NR686 ↑
TX-NR787 BAPRC-2605 TX-NR787 BAAF-2597 TX-NR787 BAETC-2598 TX-NR787 BAPS-2557
TX-RZ630 ↑ TX-RZ630 ↑ TX-RZ630 ↑ TX-RZ630 ↑
TX-RZ730 ↑ TX-RZ730 ↑ TX-RZ730 ↑ TX-RZ730 ↑
TX-RZ830
↑
TX-RZ830
↑
TX-RZ830
↑
TX-RZ830 BAPS-2585
DRX-3.2
↑
DRX-3.2
↑
DRX-3.2
↑
DRX-3.2 BAPS-2562
DRX-4.2 ↑ DRX-4.2 ↑ DRX-4.2 ↑ DRX-4.2 ↑
DRX-5.2 ↑ DRX-5.2 ↑ DRX-5.2 ↑ DRX-5.2
BAPS-2594
BACLA BATRM
TX-NR585 BACLA-1988 TX-NR585 BATRM-2023
TX-NR686 ↑ TX-NR686
↑
TX-NR787 BACLA-2559 TX-NR787 BATRM-2601
TX-RZ630 ↑ TX-RZ630 ↑
TX-RZ730 ↑ TX-RZ730 ↑
TX-RZ830 BACLA-2587 TX-RZ830
↑
DRX-3.2 BACLA-2568 DRX-3.2
↑
DRX-4.2 ↑ DRX-4.2 ↑
DRX-5.2
BACLA-2596
DRX-5.2 ↑
