Onkyo TX-SV434 Instruction Manual

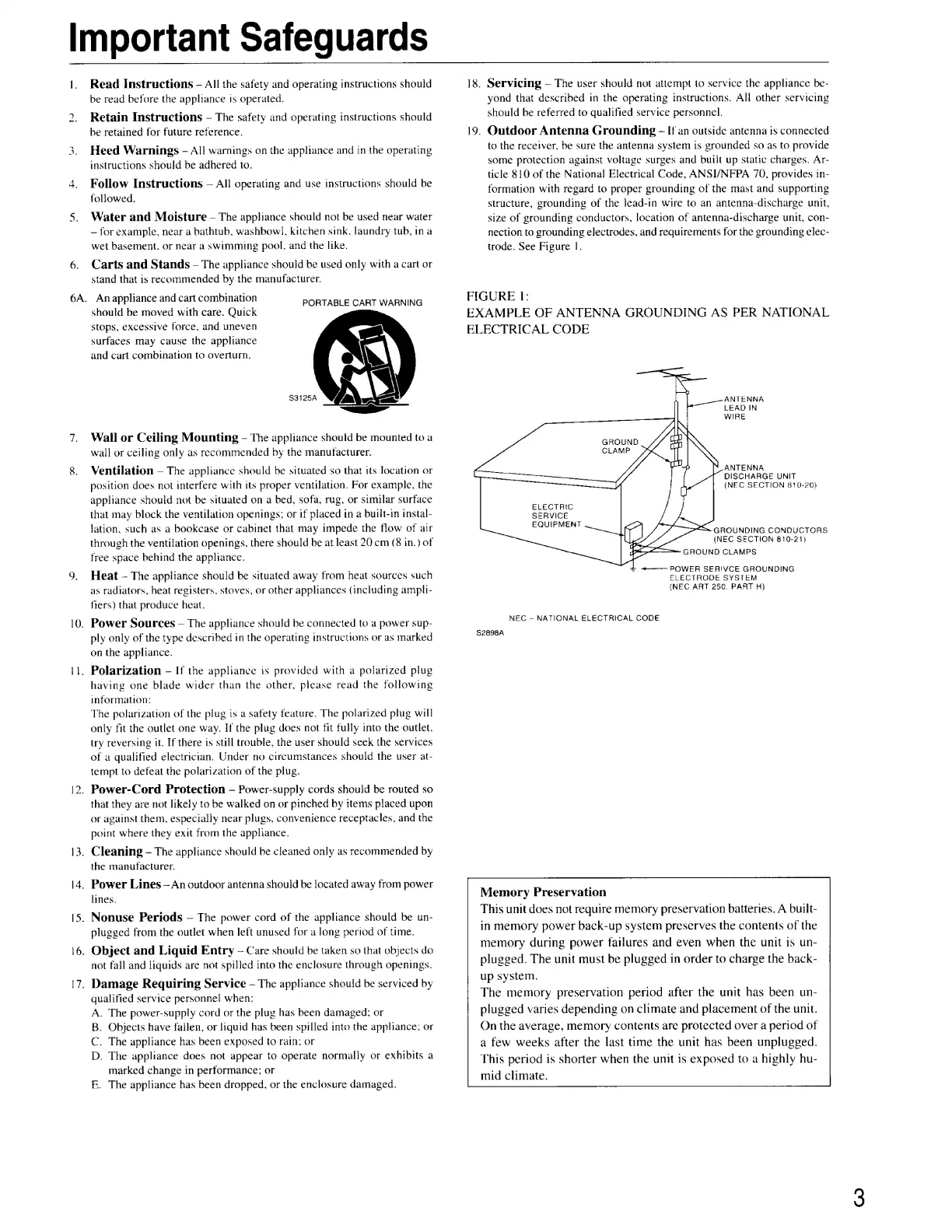

Important Safeguards
|. Read Instructions — All the safety and operating instructions should
be read before the appliance is operated.
to
Retain Instructions — The safety and operating instructions should
be retained for future reference.
3. Heed Warnings — All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow Instructions — All operating and use instructions should be
followed.
5. Water and Moisture — The appliance should not be used near water
— for example, near a bathtub, washbow], kitchen sink. laundry tub, in a
wet basement. or near a swimming pool. and the like.
6. Carts and Stands — The appliance should be used only with a cart or
stand that is recommended by the manufacturer,
6A. An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
PORTABLE CART WARNING
S3125A
7. Wall or Ceiling Mounting — The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
8. Ventilation — The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or if placed tn a built-in instal-
lation, such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings, there should be at least 20 cm (8 in.) of
tree space behind the appliance.
9. Heat — The appliance should be situated away from heat sources such
as radiators, heat registers. stoves, or other appliances (including ampli-
hers) that produce heat.
10. Power Sources — The appliance should be connected to a power sup-
ply only of the type described in the operating instructions or as marked
on the appliance,
11, Polarization — If the appliance is provided with a polarized plug
having one blade wider than the other, please read the following
information:
The polarization of the plug is a safety feature. The polarized plug will
only fit the outlet one way. If the plug does not fit fully into the outlet.
try reversing it. Ef there is still trouble, the user should seek the services
of a qualified electrician. Under no circumstances should the user at-
tempt to defeat the polarization of the plug.
12. Power-Cord Protection — Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed upon
or against them, especially near plugs, convenience receptacles, and the
point where they exit from the appliance.
13. Cleaning — The appliance should be cleaned only as recommended by
the manufacturer.
14. Power Lines — An outdoor antenna should be located away from power
lines.
15. Nonuse Periods — The power cord of the appliance should be un-
plugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry — Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through openings.
17. Damage Requiring Service — The appliance should be serviced by
qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain: or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
The appliance has been dropped, or the enclosure damaged.
7
18. Servicing — The user should not attempt to service the appliance be-
yond that described in the operating instructions. All other servicing
should be referred to qualified service personnel.
19. Outdoor Antenna Grounding - If an outside antenna is connected
to the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges. Ar-
ticle 810 of the National Electrical Code, ANSI/NFPA 70, provides in-
formation with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-discharge unit,
size of grounding conductors, location of antenna-discharge unit, con-
nection to grounding electrodes, and requirements for the grounding elec-
trode. See Figure |.
FIGURE I:
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
{NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT {—~
—~ GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERIVCE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC — NATIONAL ELECTRICAL CODE
S2898A
Memory Preservation
This unit does not require memory preservation batteries. A buiit-
in memory power back-up system preserves the contents of the
memory during power failures and even when the unit is un-
plugged. The unit must be plugged in order to charge the back-
up system.
The memory preservation period after the unit has been un-
plugged varies depending on climate and placement of the unit.
On the average, memory contents are protected over a period of
a few weeks after the last tme the unit has been unplugged.
This period is shorter when the unit is exposed to a highly hu-
mid climate.

Onkyo TX-SV434 Specifications

Power Output

front L/R channels power output	65 watts per channel
continuous power output	2x 70 watts at 8 ohms
surround mode front L/R and center channels power output	55 watts per channel

Power Supply

U.S.A. & Canadian models power supply	AC 120 V, 60 Hz
European & Australian models power supply	AC 230 V, 50 Hz
worldwide models power supply	AC 220-230 V and 120 V switchable, 50/60 Hz

Weight and Dimensions

dimensions (W x H x D)	455 x 150 x 322 mm
weight	9.6 kg
remote control dimensions (W x H x D)	65 x 18 x 194 mm
