Fingertips

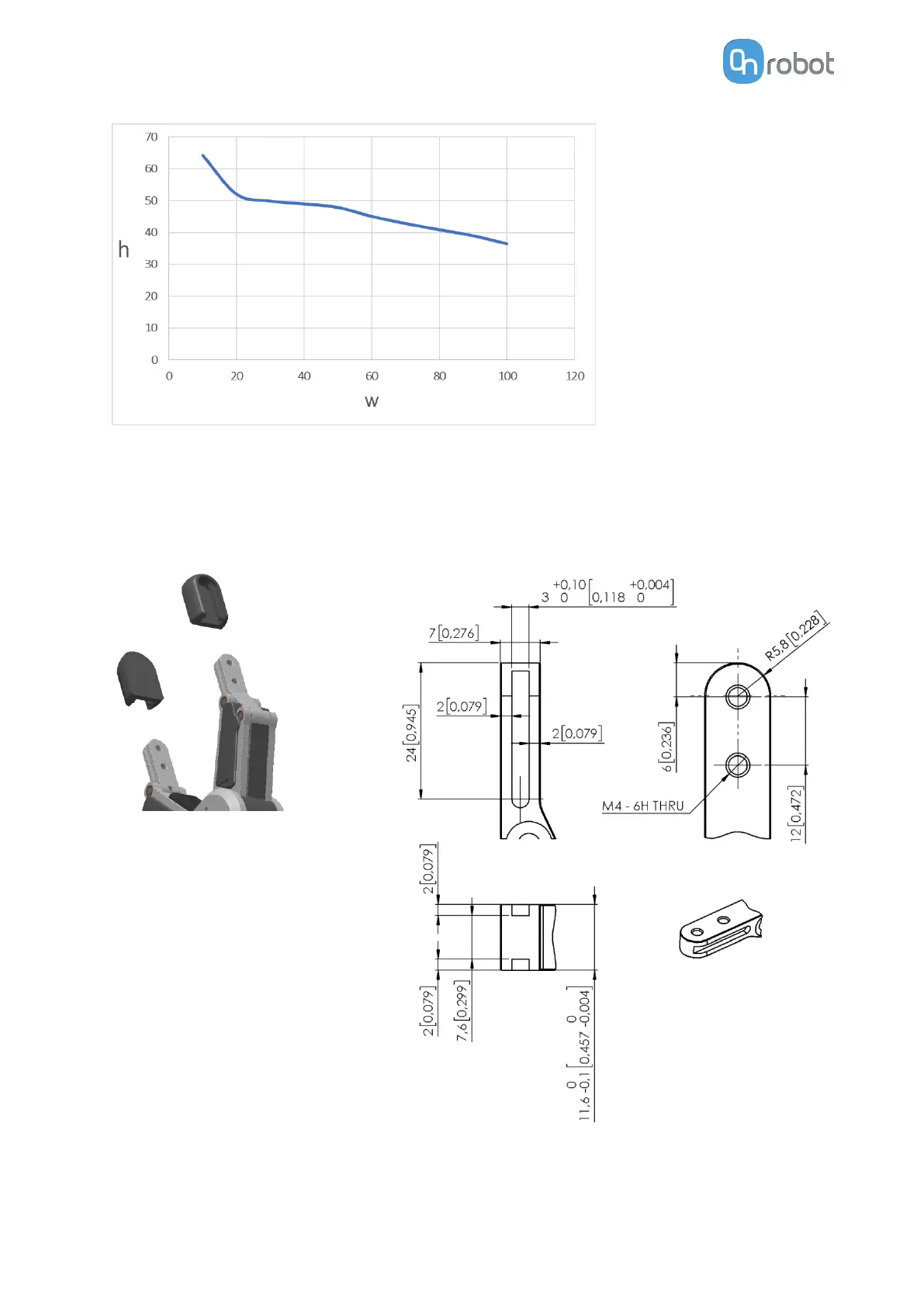

The standard fingertips can be used for many dierent workpieces. If custom fingertips are
required, they can be made to fit the Gripper’s fingers according to the dimensions (mm)
shown below:
HARDWARE SPECIFICATION
177
