19 OPAL-RT Technologies OP5600/OP5650 User Manual
OP5600 Series/OP5650 Simulator
RJ45 channel Assignments
RJ45 CHANNEL ASSIGNMENTS
Each mezzanine is assigned two columns of RJ45 connectors. Each column represents a series of
channels, divided into 4 channels per jack, as shown in Figure 11.
SLOT xA
SLOT xB
Column 1:
Channels 0-3
Channels 4-7
Channels 8-11
Channels 12-15
Column 2:
Channels 16-19
Channels 20-23
Channels 24-27
Channels 28-31
Analog boards use only channels 0-15
0-3
4-7
8-11
12-15
16-19
20-23
24-27
28-31
Digital boards use channels 0-31

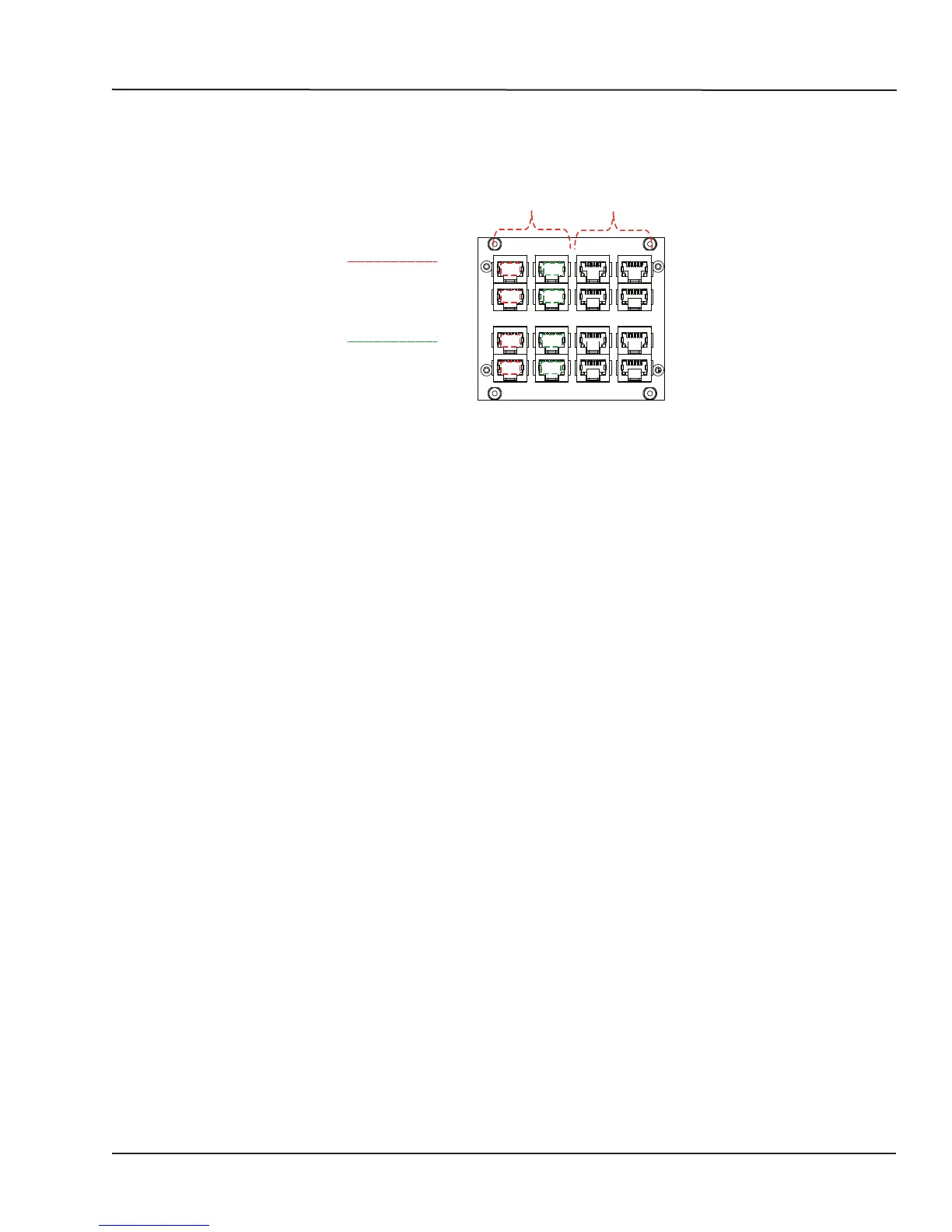

Figure 9: RJ45 channel assignments
