Optex AX-330PLUS User Manual

1-2

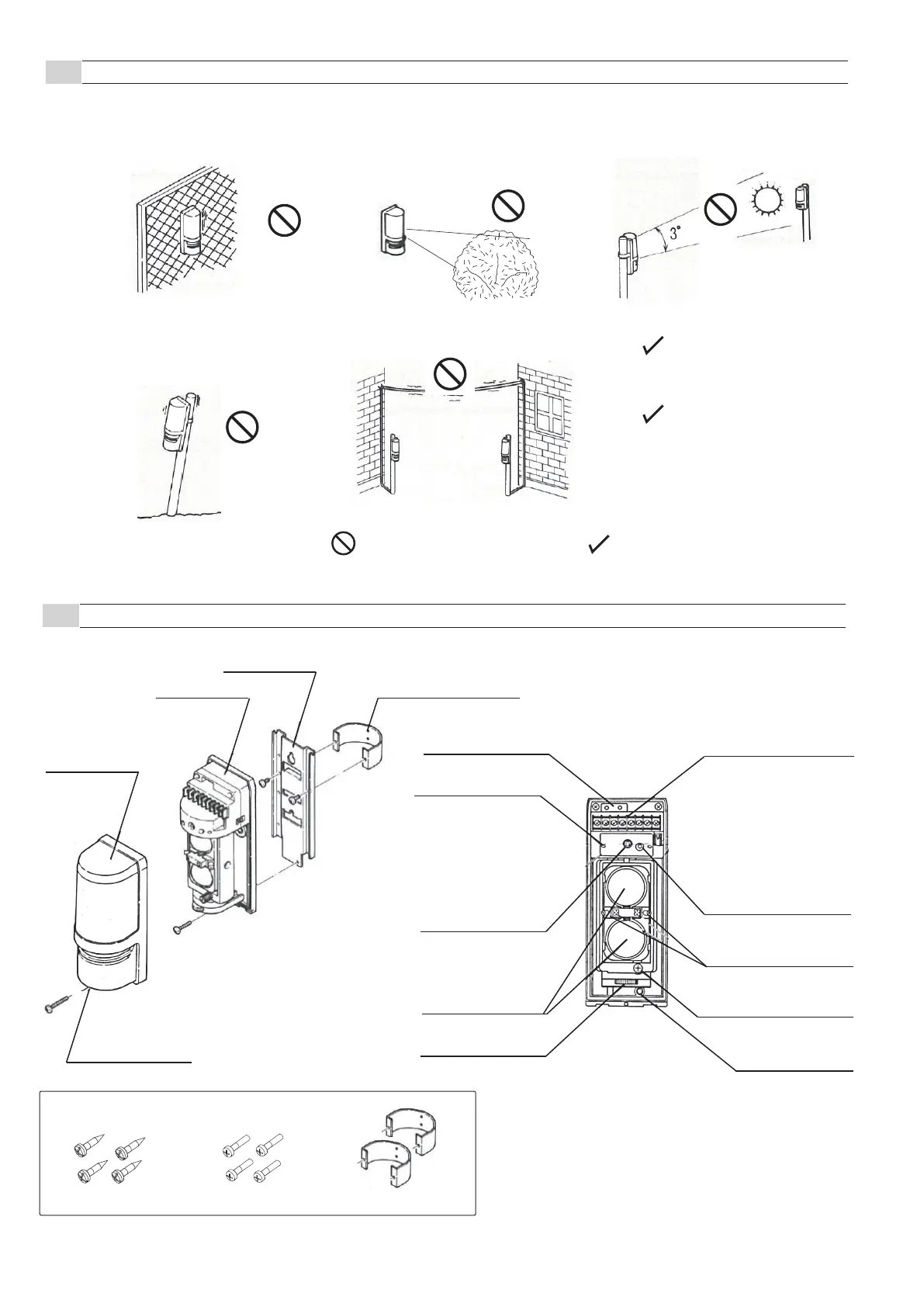

PRECAUTIONS
This symbol indicates prohibition.
This symbol indicates recommendation.
Do not install the unit on an
unstable surface.
Do not install the unit in a location
where trees, leaves, or other objects
that may swing in the wind and block
the beam.
Do not install the receiver in a location
where it is exposed to direct sunlight.
1-3
PARTS IDENTIFICATION
The mounting pole should have a
solid basis with little movement at
the top of the pole.
Avoid aerial wiring.
For indoor application, the wiring
installation is similar to that of
telephone wirings or the Internet.
For outdoor application, use wire
conduit as far as possible. Some
places require shielded wires or
underground wiring.
- 2 -
Mounting Plate
Unit Base
Front Cover
Cover Lock Screw
Wiring Knockout
Monitor Jack
Beam Interruption
Time Adjustment
Lens
Horizontal Alignment
Dial
Terminals
Alarm Indicator
(Receiver)
Transmitting Condition
(Transmitter)
View Finder
Vertical
Alignment Dial
Unit Base Mounting
Screw
U-Shaped Bracket
(accessory)
ACCESSORIES >>
U-Shaped brackets x 24×20 self tapping x 4 M4×14 screws x 4

Optex AX-330PLUS Specifications

General

Product color	Black
Transmission range	100 - 1000 m
Output voltage	10.5 - 28 V
Maximum current	0.046 A
Ambient temperature (min)	-25 °C

Weight and Dimensions

Depth	83 mm
Width	78 mm
Height	196 mm
Weight	1040 g
