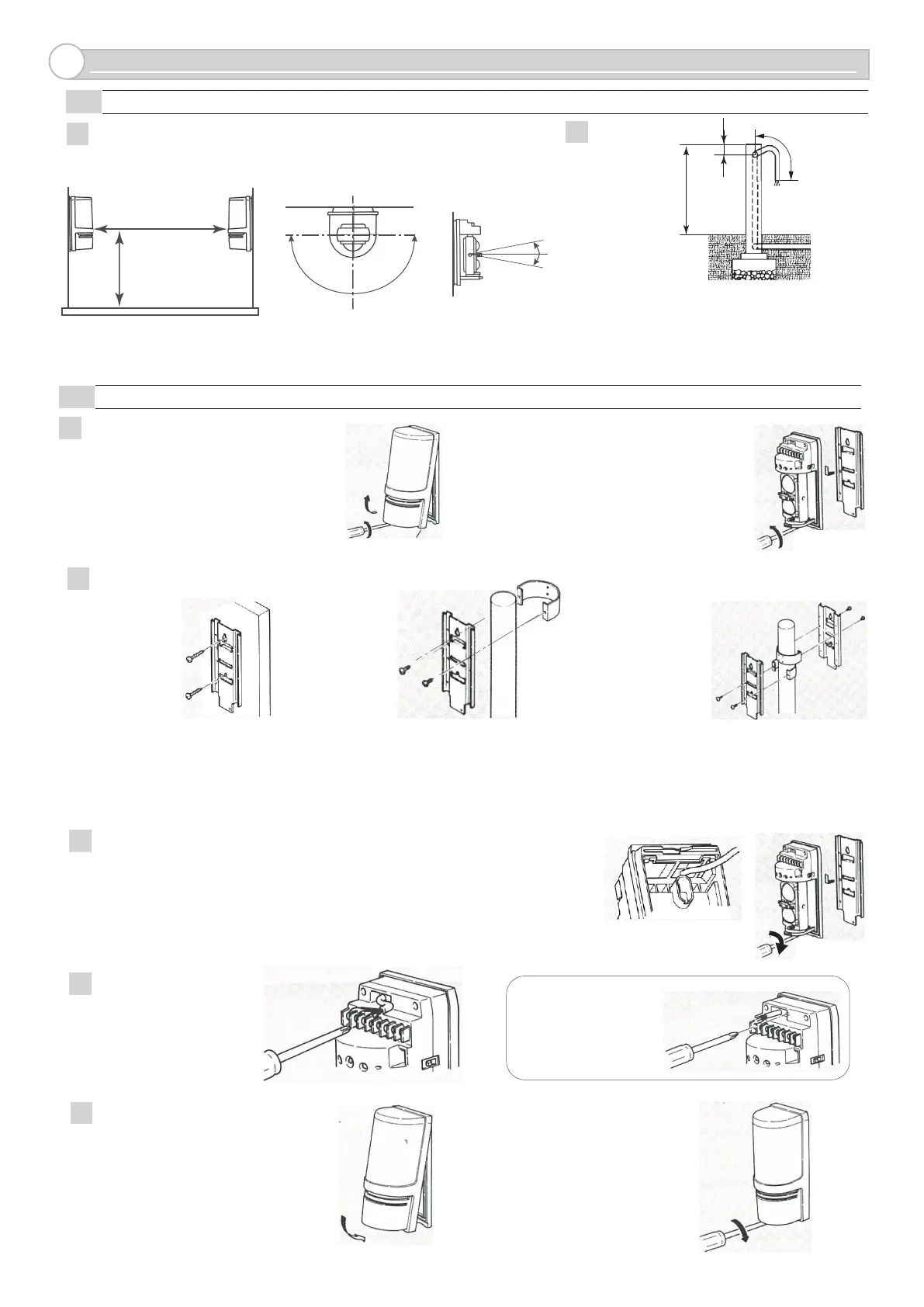

Optex AX-330PLUS User Manual

2-1
Normal installation
INSTALLATION
2
1
Range/ height/ angle
2
Pole installation
2-2
Installing method
1
2
3
4
5
- 3 -
Mounting height;
0.7 to 1.0 m
(2.3 to 3.3 ft.)
Detection range;
100 m (330 ft.)
max.
Horizontal Vertical
180° (±90°)
10° (±5°)
* Mounting pole; φ43~48 mm (1 11/16’’~1 7/8’’)
(Standard U.S. 1 1/2’’pipe)
* The length of wiring cable out of the pole;
within 0.6 m (2.0 ft.)
* After finishing the pole installation,
align the transmitter and receiver with each other.
Loosen the cover lock screw and
remove the front cover.
Pull out wires through the wiring
hole on the mounting plate and
fix the mounting plate on the wall
with screws.
Pole mounting
Two unit mounting
( back to back)
Place the front cover after the optical
alignment and the walk test.
( Refer to optical alignment in Section 4).
Connect wires to the terminals.
(refer to Terminal and wiring
in Section 2-3).
Dig out a hole on the right
side of the rubber bushing
marked with ◎, when it is
need for the second wire.
Pull the wires through the wiring holes of the unit base.
Connect the unit base to the mounting plate through the hook on the top of the unit base.
Push the unit base until it is fully engaged with the mounting plate.
Tighten the mounting screws on the bottom of the unit base.
Place the U-shaped bracket on the mounting
pole, and pull out wires through the wiring
hole on the mounting plate and fix the
mounting plate on the U-shaped bracket
with screws.
Fix two U-shaped brackets in layers on a pole, two
units can be mounted back-to-back on a pole at the
same height.
Wall mounting
Loosen the unit base mounting screw and
slide the mounting plate downwards relative
to the unit base to remove it.
Separating
Mounting
Wires and fixing
Connecting
Place the front cover
Tighten the cover lock screw.
about 0.6 m
(2.0 ft.)
about
1 m
(3.3 ft.)
about
0.1 m
(3.9 inch.)
Alignment angle;
Knockout for the second wire

Optex AX-330PLUS Specifications

General

Product color	Black
Transmission range	100 - 1000 m
Output voltage	10.5 - 28 V
Maximum current	0.046 A
Ambient temperature (min)	-25 °C

Weight and Dimensions

Depth	83 mm
Width	78 mm
Height	196 mm
Weight	1040 g
