Optex AX-330PLUS User Manual

200
100
350
500
50
2-3

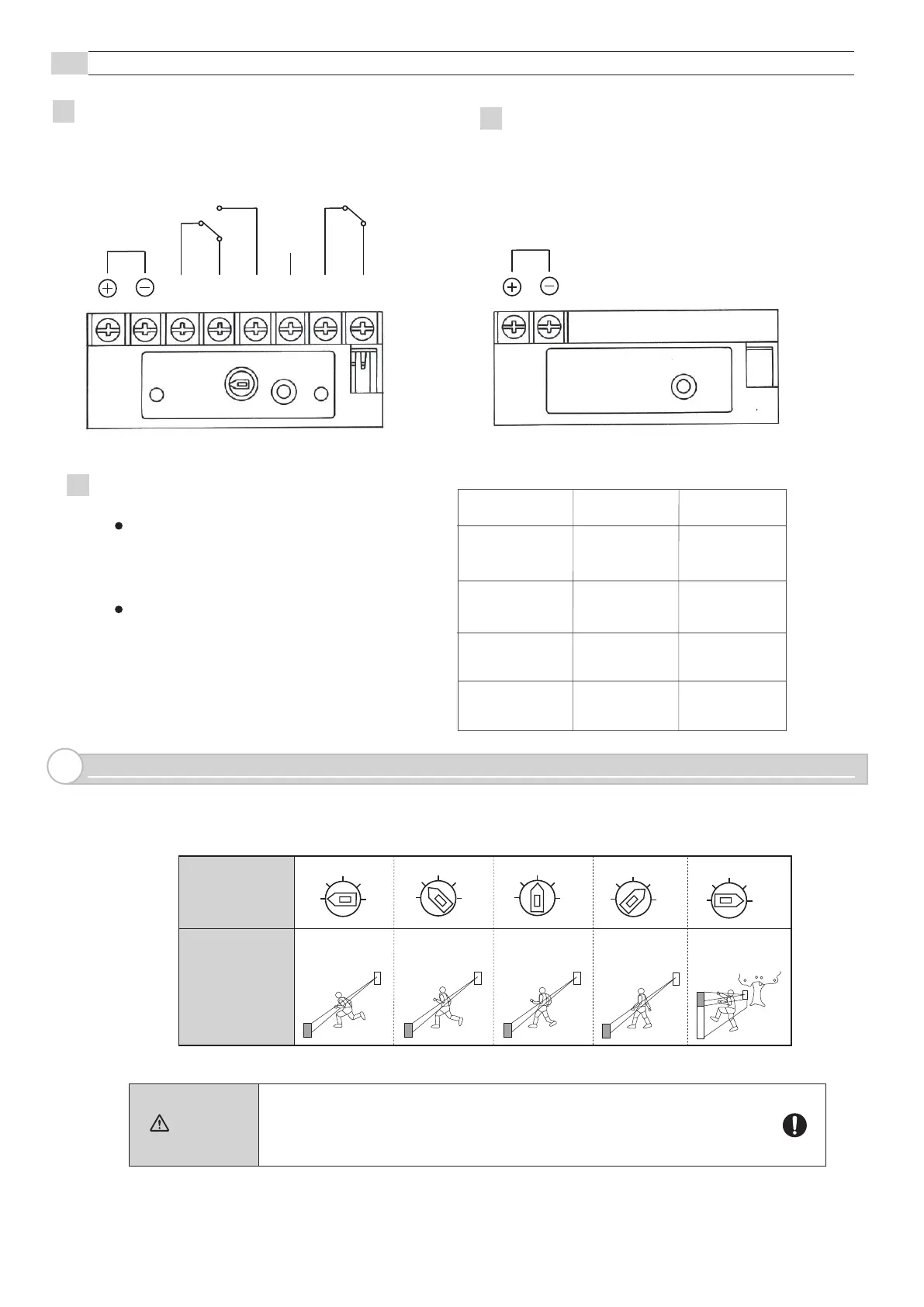

Terminal and wiring
1
Receiver
2 Transmitter
3
Wiring distance
- 4 -
Caution
The speed shown above is the maximum detectable speed for each setting.
Faster speed will not be detected. For cases where birds, newspapers, or
suspended matters may accidentally interrupt the beam, adjust the set value to
a slower speed (longer interruption time).
(50 msec) (100 msec) (200 msec)
(500 msec)
Typical
interruption
time setting
Time adjustment
(Receiver)
Running Jogging Walk fast
Slow movement
Beam interruption time adjustment
3
When using two or more units on one wire,
the maximum length is obtained by dividing
the maximum wire length listed right by the
number of units.
(a detector = a receiver or a transmitter. )
The power wire should not exceed that.
(350 msec)
Walk slow
COM N.C. N.O. SP TAMPER
POWER INPUT
10.5 to 28 VDC
ALARM OUTPUT
Form C
(28 VDC 0.2 A max.)
SPARE
TAMPER
(N.C.)
POWER INPUT
10.5 to 28 VDC
200
100
350
500
50
200
100
350
500
50
200
100
350
500
50
200
100
350
500
50
Beam interruption time adjustment is on the receiver unit. This function allows you to adjust the sensitivity of the device to
fit to surroundings. A slower setting means less sensitivity.
Wire size 12 VDC 24 VDC
AWG 22 500 2 500
(0.33 mm ) (1 600) (8 100)
AWG 20 800 4 000
(0.52 mm ) (2 600) (13 000)
AWG 18 1 200 6 000
(0.83 mm ) (4 000) (19 500)
AWG 16 2 000 10 000
(1.31 mm ) (6 500) (32 500)
2
2
2
2
m (ft.)

Optex AX-330PLUS Specifications

General

Product color	Black
Transmission range	100 - 1000 m
Output voltage	10.5 - 28 V
Maximum current	0.046 A
Ambient temperature (min)	-25 °C

Weight and Dimensions

Depth	83 mm
Width	78 mm
Height	196 mm
Weight	1040 g
