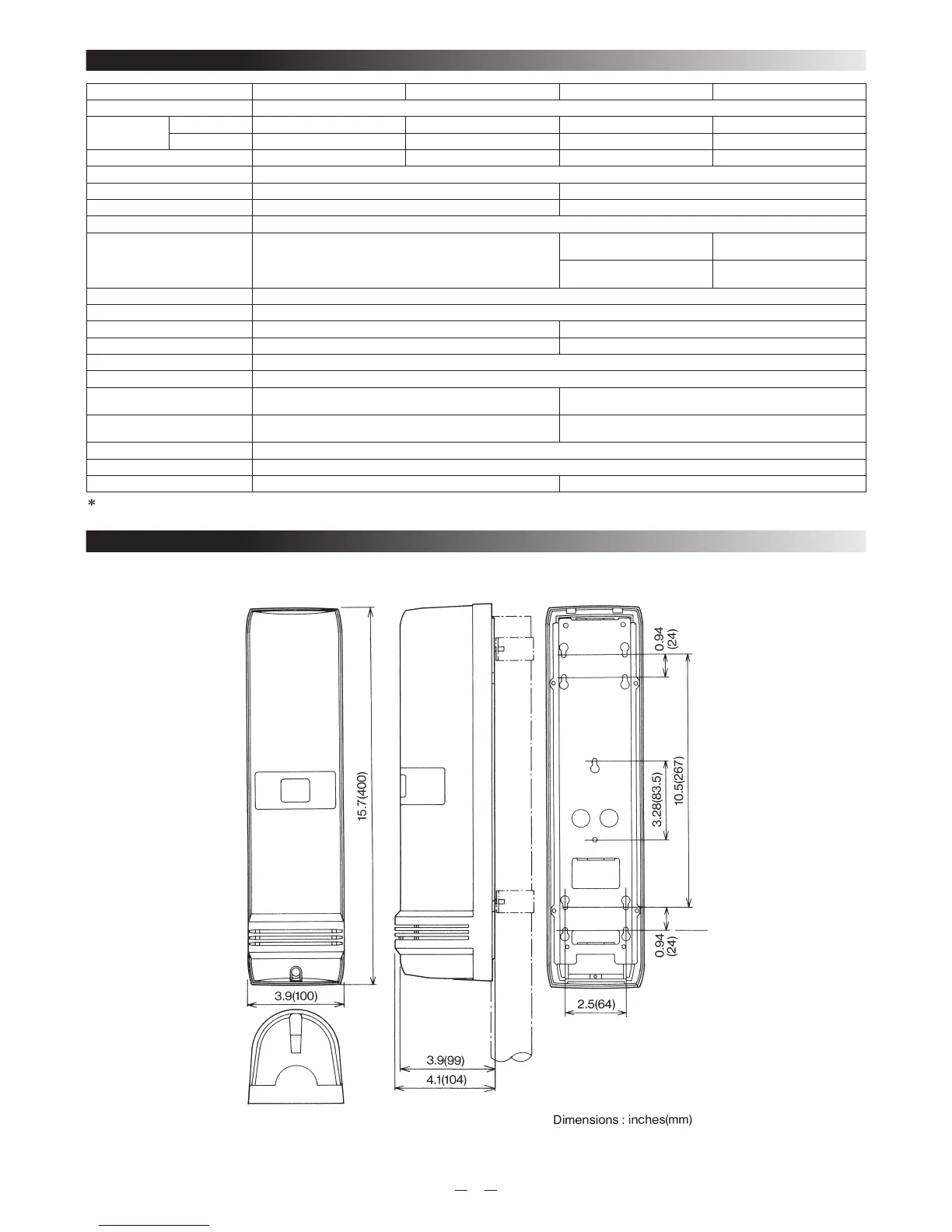

8. SPECIFICATIONS
MODEL AX-250PLUS AX-500PLUS AX-350TF AX-650TF
Detection Method Infrared Photoelectric
Range
Outdoor 250ft(75m) 500ft(150m) 350ft(100m) 650ft(200m)
Indoor 500ft(150m) 1000ft(300m) 700ft(200m) 1300ft(400m)
Maximum Arrival Distance 2500ft(750m) 5000ft(1500m) 3500ft(1000m) 6500ft(2000m)
Beam Characteristics Pulsed Infrared
Selectable Beam Frequency
—
4 channel
Interruption Period 50~500 msec (Selectable) 50, 100, 250, 500 msec (4steps)
Power Input 10.5~30VDC
Current Draw
(transmitter + receiver)
Normal operation 50 mA max
T:22mA+R:28mA
Normal operation 60 mA max
T:11mA+R:49mA
Normal operation 62 mA max
T:13mA+R:49mA
During optical alignment 78 mA max
T:11mA+R:67mA
During optical alignment 80 mA max
T:13mA+R:67mA
Alarm Period 2sec(±1) nominal
Alarm Output Form C Relay (28VDC 0.2A max)
Tamper Switch N.C. opens when cover is removed (RECEIVER only) N.C. opens when cover is removed
Operating Temperature -13°F~131°F (-25°C~+55°C) -30°F~140°F (-35°C~+60°C)
Environment Humidity 95% max
Alignment Angle ±10° Vertical, ±90° Horizontal
Alarm Memory
—
LED indicates memory status.
Selectable Negative & Positive
Environmental Disqualifi cation
Circuit
—
Form C relay operates when beam energy has been
gradually reduced to abnormal level.
Mounting Wall or Pole
Weatherproof IP54
Weight 95.2 oz (2700g) Transmitter and Receiver 97.0 oz (2750g) Transmitter and Receiver
Specifi cations and design are subject to change without prior notice.
