Optex VX-402R User Manual

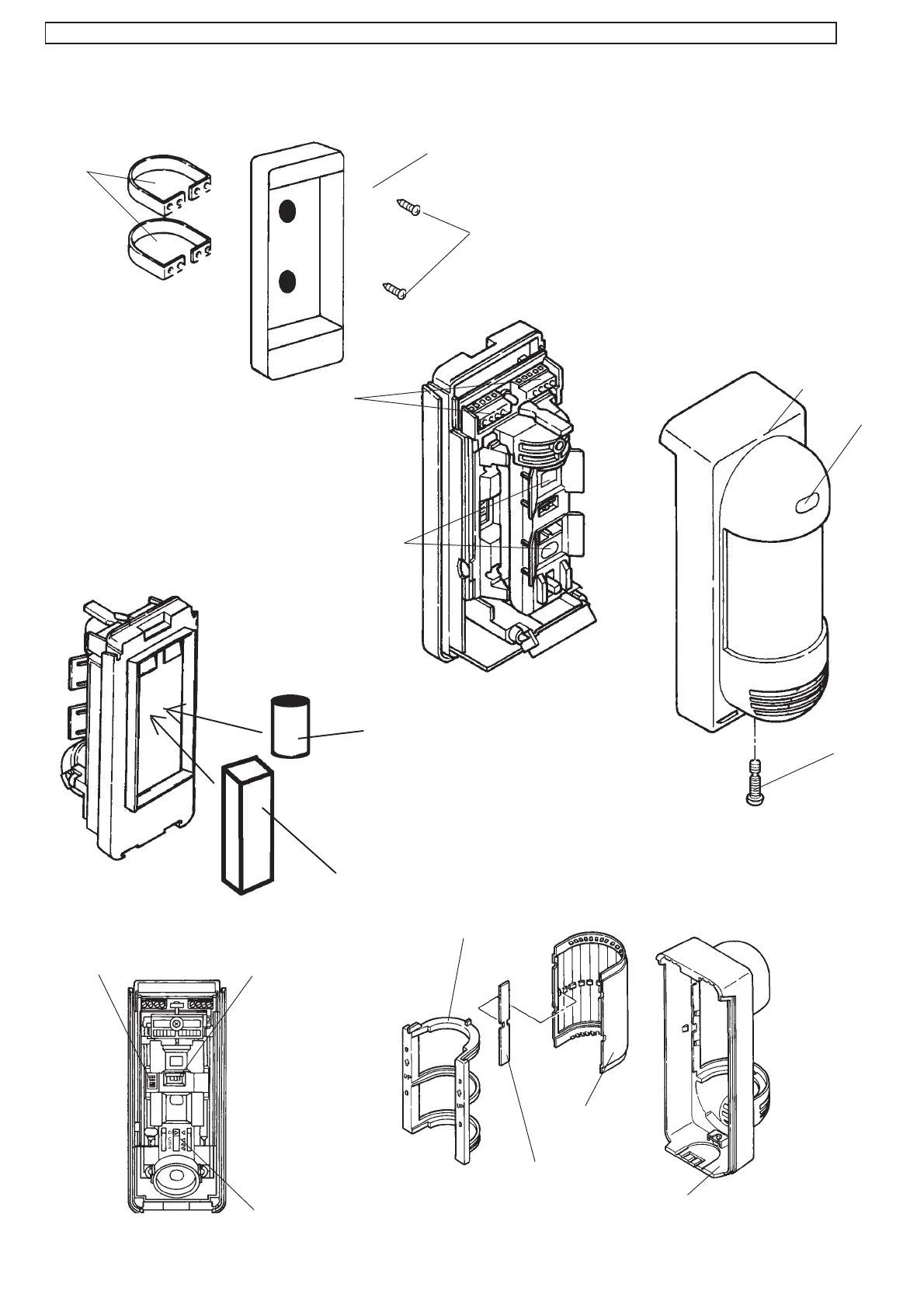

2.DESCRIPTION AND OPERATION
M4 x 30
Lens Holder
Lens
Cover
Area Masking Plate
Pole Mount Bracket
Mounting Screw
T4 x 20
Terminals
Pyro Electric Sensor
(Do not touch)
Lock Screw
Cover
LED Indicator
DIP Switch (See 6-2.)
Detection Length
Adjustment Switch
Sensitivity Select Switch
(See 6-1.)
Battery
(Not included)
Transmitter
(Not included)

Optex VX-402R Specifications

General

Sensor type	Passive infrared (PIR) sensor
Connectivity technology	Wireless
Static current	0.01 mA
Battery voltage	9 V
Power consumption	3 mA
Power source type	Battery
Battery technology	-
Rechargeable battery	Yes
Operating temperature (T-T)	-20 - 50 °C
Package type	Box
Switch	Form C-Solid
LED color	Red
Placement	Outdoor
Certification	EMC 89/336 EEC
Mounting type	Wall
Product color	White
Housing material	Plastic
Installation height (max)	2 m
Installation height (min)	0.8 m
International Protection (IP) code	IP54

Weight and Dimensions

Depth	108 mm
Width	80 mm
Height	198 mm
Weight	480 g
