Optex VX-402R User Manual

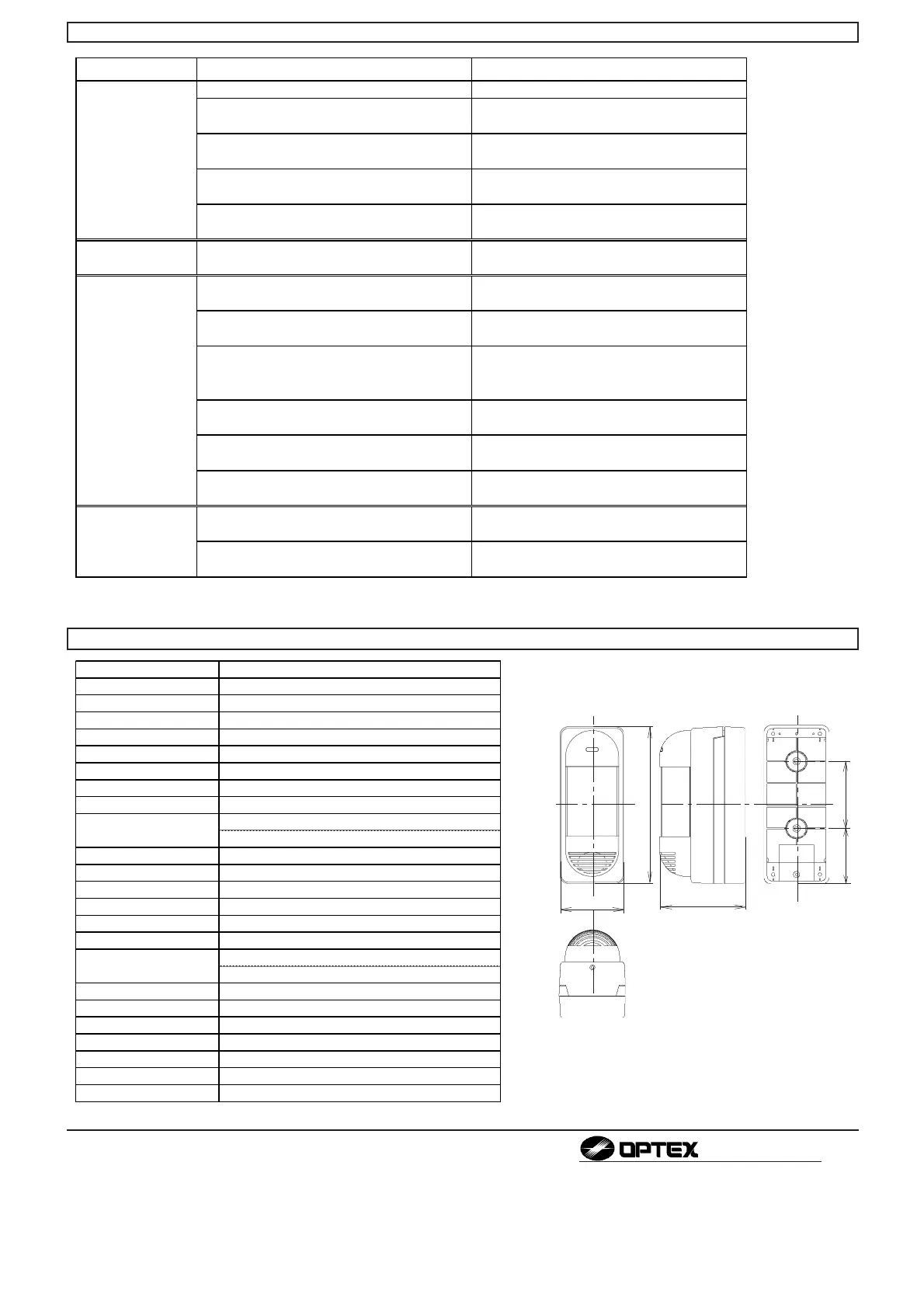

9.SPECIFICATION
8.TROUBLE SHOTING
This unit is designed to detect movement of an intruder
and activate an alarm control panel.
Being only a part of a complete system, we cannot
accept responsibility for any damages or other
consequences resulting from an intrusion.
This Product conforms to the EMC Directive.89/336 EEC.
Note: Specifications and design are subject to change without prior notice.
NOTE
OPTEX CO., LTD. (ISO 9001 Certified by LRQA)
4-7-5 Nionohama Otsu 520-0801 Japan
TEL(077)524-6047 FAX(077)522-9022
URL http://www.optex.co.jp/e/sec/index.html
OPTEX INCORPORATED
1845W 205th Street Torrance,CA 90501-1510 U.S.A.
TEL(310)533-1500 FAX(310)533-5910
URL http://www.optexamerica.com
OPTEX (EUROPE) LTD. (ISO 9002 Certified by NQA)
Unit 9, Four Seasons Crescent, Sutton, Surrey. SM3 9QR. UK
TEL: (02082)542222 FAX: (02086)410017
URL http://www.optexeurope.com
PROBLEM PROBABLE CAUSE REMEDY
Incorrect pow er supply voltage. Set supply voltage for a range of 3 to 9 battery.
Faulty w iring to detector. Transmitter is not connected to
VX-402R.
Rew ire alarm correcty.
Wireless transmission dose not reach the receiver. Check transmitter.
Battery is dead. Change batteries.
Walk Test Sw itch is OFF. Battery saving circuit .
LED blinks continuously Incorrect pow er supply voltage. Set supply voltage for a range of 3 to 9 battery.
Detector is not installed perpendicularly to the ground. Reinstall the detector perpendicularly to the ground.
Low er detection area is unnecessarily long. Confirm and reset the detection area.
Low er detection area receives reflected sunlight or car
light, etc.
Remove the reflector or reset the detection area or mask
the area exposed to reflected light.
Low er detection area is exposed to direct sunlight or car
light.
Reset the area so it may not receive direct light.
There is any heat source (stove or heater, etc.) in the
area that may cause temperature change.
Reset the area or remove the heat source.
There is any moving object (laundry on clothesline, plants,
etc.) in the area.
Reset the area or remove moving objects.
Detection area is not set appropriately. Reset the area appropriately.
Sensitivity is set for L(ow ). Reset sensitivity for M(edium) or H(igh).
No detection
occasionally
Make alarms even
though no moving object
is in the area
No alarm event even
though someone is
w alking in detection
area.
Pitch 83.5mm(3.28•h)68.5mm(2.7•h)
198mm(7.8•”)
80mm(3.15”)
108(4.25•”)
mm(inch)
[Dimensions]
MODEL VX-402R
Detection Method Passive Infrared
Coverage 12m(40ft)90°wide
Detection Zone 14zones
Mountiong Height 0.8-1.2m(2.7-4ft)
Sensitivity 2.0°C at 0.6m/s (3.6°F at 2.0ft./s)
Detectable Speed 0.3-1.5m/s(1-5ft/s)
Power Input 3-9VDC Alkaline or Lithium Battery
Operating Voltage 2.5
Ｖ
- 10VDC
Max. 3mA(In Walktest
，
LED on)
10uA(In Standby)
Alarm Period Approx 2.5sec
Alarm Output Form C-Solid State Switch: 10VDC
，
0.01A
Battery Saving Timer Approx. 120sec or 5sec
Tamper Switch Form C opens when cover removed
Pulse Count Approx 20sec 2or4
Warm-up Period Approx.2min
Disable during normal operation
Enable during walk test
Weatherproof IP54
Operating Tamperature -20 - +50°C (-4 - +122°F)
Environment Humidity 95% Max
RF Interference No Alarm 30V/m
Mountiong Wall,Pole
Weight 480g(16.9oz)
Accessories Pole mount kit, Screw kit, Area Masking Plate
LED Indicator
Current Draw

Optex VX-402R Specifications

General

Sensor type	Passive infrared (PIR) sensor
Connectivity technology	Wireless
Static current	0.01 mA
Battery voltage	9 V
Power consumption	3 mA
Power source type	Battery
Battery technology	-
Rechargeable battery	Yes
Operating temperature (T-T)	-20 - 50 °C
Package type	Box
Switch	Form C-Solid
LED color	Red
Placement	Outdoor
Certification	EMC 89/336 EEC
Mounting type	Wall
Product color	White
Housing material	Plastic
Installation height (max)	2 m
Installation height (min)	0.8 m
International Protection (IP) code	IP54

Weight and Dimensions

Depth	108 mm
Width	80 mm
Height	198 mm
Weight	480 g
