18
mm230.2hctip–*LXMnoitceS mm80.5hctip–LXnoitceS
.oNtleB
.oN
hteetfo.oNtleB
.oN
hteetfo.oNtleB
.oN
hteetfo
)hcni()mm()hcni()mm()hcni()mm(
Further sizes on request. * Non stock: minimum order 1 sleeve
3.2 ZRM/ZRP timing belt range

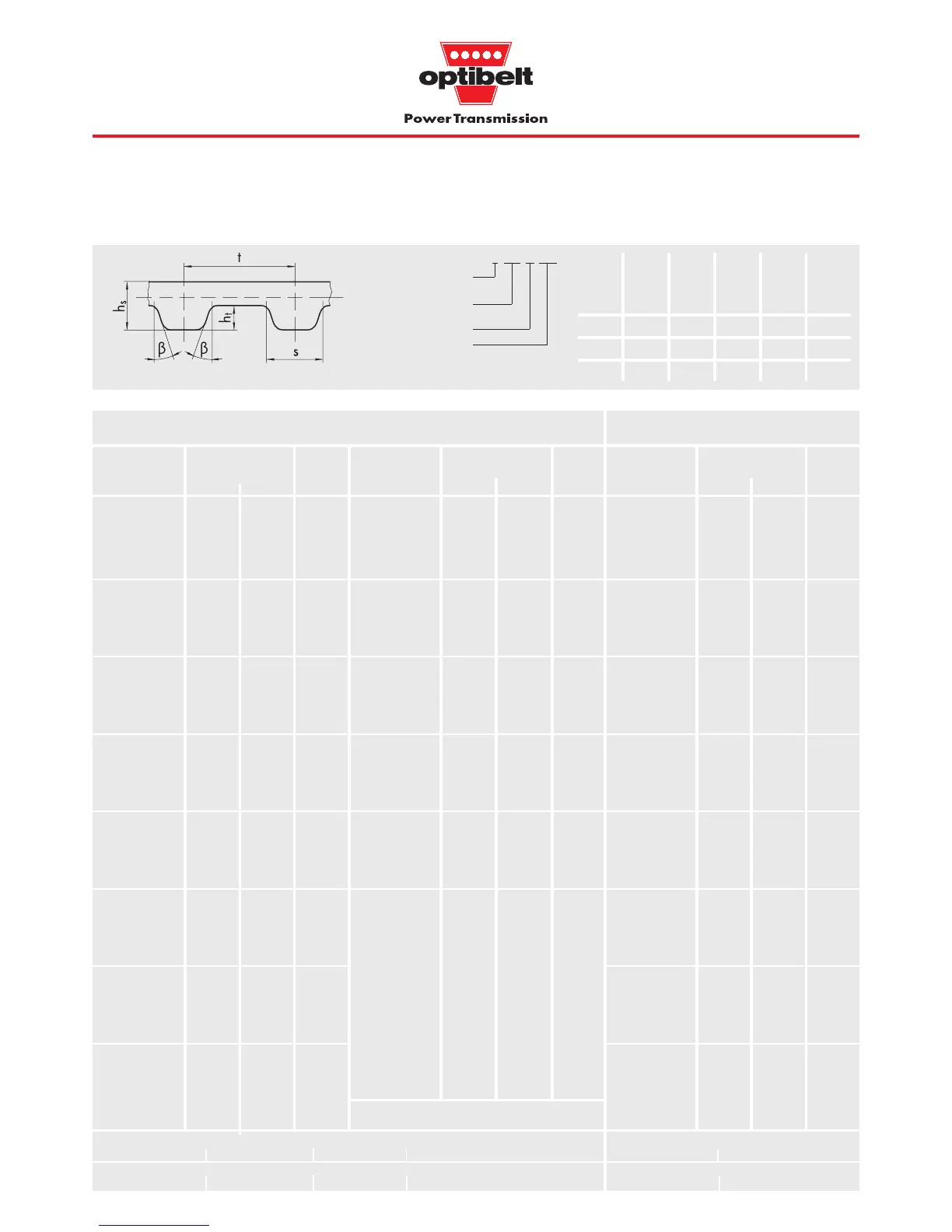

optibelt ZRP timing belts, inch sizes
Section Pitch Tooth Overall Tooth Tooth
depth belt width angle
thickness
th
t
h
s
s2 β
(mm) (mm) (mm) (mm) (°)
MXL 2.032 0.51 1.14 1.14 40
XL 5.080 1.27 2.30 2.57 50
L 9.525 1.91 3.60 4.65 40
Table 3.3: ZRP timing belt range
Construction: polyurethane with Aramid (MXL) or steel tension cord (XL, L)
K 240 MXL 2.40 60.96 30
K 280 MXL 2.80 71.12 35
K 320 MXL 3.20 81.28 40
K 360 MXL 3.60 91.44 45
K 400 MXL 4.00 101.60 50
K 440 MXL 4.40 111.76 55
K 480 MXL 4.80 121.92 60
K 520 MXL 5.20 132.08 65
K 560 MXL 5.60 142.24 70
K 600 MXL 6.00 152.40 75
K 640 MXL 6.40 162.56 80
K 680 MXL 6.80 172.72 85
K 720 MXL 7.20 182.88 90
K 760 MXL 7.60 193.04 95
K 800 MXL 8.00 203.20 100
K 840 MXL 8.40 213.36 105
K 880 MXL 8.80 223.52 110
K 920 MXL 9.20 233.68 115
K 960 MXL 9.60 243.84 120
K 1000 MXL 10.00 254.00 125
K 1040 MXL 10.40 264.16 130
K 1080 MXL 10.80 274.32 135
K 1120 MXL 11.20 284.48 140
K 1160 MXL 11.60 294.64 145
K 1200 MXL 12.00 304.80 150
K 1240 MXL 12.40 314.96 155
K 1280 MXL 12.80 325.12 160
K 1320 MXL 13.20 335.28 165
K 1360 MXL 13.60 345.44 170
K 1400 MXL 14.00 355.60 175
K 1440 MXL 14.40 365.76 180
K 1480 MXL 14.80 375.92 185
K 1520 MXL 15.20 386.08 190
K 1560 MXL 15.60 396.24 195
K 1600 MXL 16.00 406.40 200
K 1640 MXL 16.40 416.56 205
K 1680 MXL 16.80 426.72 210
K 1720 MXL 17.20 436.88 215
K 1760 MXL 17.60 447.04 220
K 1800 MXL 18.00 457.20 225
K 1840 MXL 18.40 467.36 230
K 1880 MXL 18.80 477.52 235
K 1920 MXL 19.20 487.68 240
K 1960 MXL 19.60 497.84 245
K 2000 MXL 20.00 508.00 250
K 2040 MXL 20.40 518.16 255
K 2080 MXL 20.80 528.32 260
K 2120 MXL 21.20 538.48 265
K 2160 MXL 21.60 548.64 270
K 2200 MXL 22.00 558.80 275
K 2240 MXL 22.40 568.96 280
K 2280 MXL 22.80 579.12 285
K 2320 MXL 23.20 589.28 290
K 2360 MXL 23.60 599.44 295
K 2400 MXL 24.00 609.60 300
K 2480 MXL 24.80 629.92 310
K 2560 MXL 25.60 650.24 320
K 2640 MXL 26.40 670.56 330
K 2720 MXL 27.20 690.88 340
K 2800 MXL 28.00 711.20 350
K 2880 MXL 28.80 731.52 360
K 2960 MXL 29.60 751.84 370
K 3040 MXL 30.40 772.16 380
K 3120 MXL 31.20 792.48 390
K 3200 MXL 32.00 812.80 400
z
R
Pitch length
L
wSt
z
R
Pitch length
L
wSt
z
R
Pitch length
L
wSt
K 60 XL* 6.00 152.40 30
K 70 XL* 7.00 177.80 35
K 76 XL* 7.60 193.04 38
K 80 XL* 8.00 203.20 40
K 84 XL* 8.40 213.36 42
K 90 XL* 9.00 228.60 45
K 94 XL* 9.40 238.76 47
K 96 XL* 9.60 243.84 48
K 100 XL 10.00 254.00 50
K 102 XL* 10.20 259.08 51
K 104 XL* 10.40 264.16 52
K 106 XL* 10.60 269.24 53
K 110 XL 11.00 279.40 55
K 114 XL* 11.40 289.56 57
K 116 XL* 11.60 294.64 58
K 120 XL 12.00 304.80 60
K 124 XL* 12.40 314.96 62
K 126 XL* 12.60 320.04 63
K 128 XL* 12.80 325.12 64
K 130 XL 13.00 330.20 65
K 136 XL* 13.60 345.44 68
K 140 XL 14.00 355.60 70
K 150 XL 15.00 381.00 75
K 152 XL* 15.20 386.08 76
K 154 XL* 15.40 391.16 77
K 160 XL 16.00 406.40 80
K 166 XL* 16.60 421.64 83
K 170 XL 17.00 431.80 85
K 180 XL 18.00 457.20 90
K 186 XL* 18.60 472.44 93
K 190 XL 19.00 482.60 95
K 200 XL 20.00 508.00 100
K 210 XL 21.00 533.40 105
K 212 XL* 21.20 538.48 106
K 220 XL 22.00 558.80 110
K 230 XL 23.00 584.20 115
K 240 XL 24.00 609.60 120
K 250 XL 25.00 635.00 125
K 254 XL* 25.40 645.16 127
K 260 XL 26.00 660.40 130
Sleeve width: 127 ± 10 mm
Order example for ZRP: K 120 XL 037
K = plastic
(polyurethane)
Pitch length code
Pitch length (inch x 10)
Section
Width code
Width (inch x 100)
Standard widths b
St
:
1/8" = 3.175 mm 3/16" = 4.764 mm 1/4" = 6.35 mm 5/16" = 7.94 mm
Code No.:
012 019 025 031
Standard widths b
St
, continued on page 19:
1/4" = 6.35 mm 5/16" = 7.94 mm
Code No.:
025 031
•
•
•
•
•••••
•
•
•
