21
Construction: polyurethane with steel-wire cord
5.0
1.8
1.2
2.2
10.0
3.5
2.5
4.5
20.0
6.5
5.0
8.0
Standard widths:
16 mm – Code 16; 25 mm – Code 25; 32 mm – Code 32; 50 mm – Code 50; 75 mm – Code 75; 100 mm – Code 100.

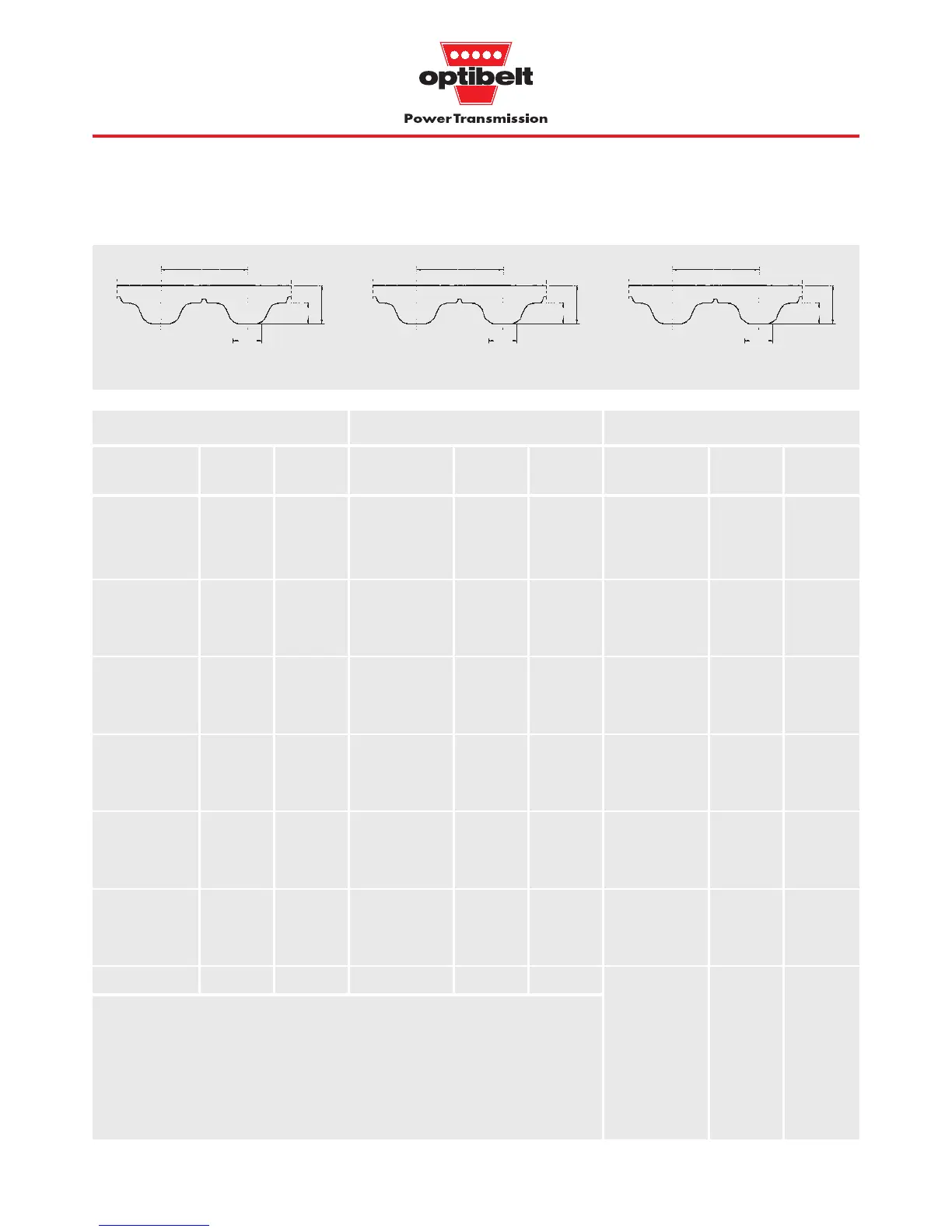

3.2 ZRM/ZRP timing belt range
optiflex
timing belts, endless manufactured
T5/1500• 1500.00 300
T5/1600• 1600.00 320
T5/1700• 1700.00 340
T5/1800• 1800.00 360
T5/1900• 1900.00 380
T5/2000• 2000.00 400
T5/2100• 2100.00 420
T5/2200• 2200.00 440
T5/2300• 2300.00 460
T5/2400• 2400.00 480
T5/2500• 2500.00 500
T5/2600• 2600.00 520
T5/2700• 2700.00 540
T5/2800• 2800.00 560
T5/2900• 2900.00 580
T5/3000• 3000.00 600
T5/3200• 3200.00 640
T5/3400• 3400.00 680
T5/3600• 3600.00 720
T5/3800• 3800.00 760
T5/4000• 4000.00 800
T5/4200• 4200.00 840
T5/4400• 4400.00 880
T5/4600• 4600.00 920
T5/4800• 4800.00 960
T5/5000• 5000.00 1000
T5/5200• 5200.00 1040
T5/5400• 5400.00 1080
T5/5600• 5600.00 1120
T5/5800• 5800.00 1160
T5/6000• 6000.00 1200
T10/1500• 1500.00 150
T10/1600• 1600.00 160
T10/1700• 1700.00 170
T10/1800• 1800.00 180
T10/1900• 1900.00 190
T10/2000• 2000.00 200
T10/2100• 2100.00 210
T10/2200• 2200.00 220
T10/2300• 2300.00 230
T10/2400• 2400.00 240
T10/2500• 2500.00 250
T10/2600• 2600.00 260
T10/2700• 2700.00 270
T10/2800• 2800.00 280
T10/2900• 2900.00 290
T10/3000• 3000.00 300
T10/3200• 3200.00 320
T10/3400• 3400.00 340
T10/3600• 3600.00 360
T10/3800• 3800.00 380
T10/4000• 4000.00 400
T10/4200• 4200.00 420
T10/4400• 4400.00 440
T10/4600• 4600.00 460
T10/4800• 4800.00 480
T10/5000• 5000.00 500
T10/5200• 5200.00 520
T10/5400• 5400.00 540
T10/5600• 5600.00 560
T10/5800• 5800.00 580
T10/6000• 6000.00 600
T20/1500• 1500.00 75
T20/1600• 1600.00 80
T20/1700• 1700.00 85
T20/1800• 1800.00 90
T20/1900• 1900.00 95
T20/2000• 2000.00 100
T20/2100• 2100.00 105
T20/2200• 2200.00 110
T20/2300• 2300.00 115
T20/2400• 2400.00 120
T20/2500• 2500.00 125
T20/2600• 2600.00 130
T20/2700• 2700.00 135
T20/2800• 2800.00 140
T20/2900• 2900.00 145
T20/3000• 3000.00 150
T20/3200• 3200.00 160
T20/3400• 3400.00 170
T20/3600• 3600.00 180
T20/3800• 3800.00 190
T20/4000• 4000.00 200
T20/4200• 4200.00 210
T20/4400• 4400.00 220
T20/4600• 4600.00 230
T20/4800• 4800.00 240
T20/5000• 5000.00 250
T20/5200• 5200.00 260
T20/5400• 5400.00 270
T20/5600• 5600.00 280
T20/5800• 5800.00 290
T20/6000• 6000.00 300
Type T5 – pitch 5 mm Type T10 – pitch 10 mm Type T20 – pitch 20 mm
Optiflex timing belts are available with PAZ fabric.
Length: 1500 mm - 24000 mm
Minimum quantity: according to production capability (100 mm or 150 mm)
Double-toothed timing belts section T5D / T10D – on request.
Lengths over 6000 mm on request.
• Non stock items.
Belt No.
Pitch length
(mm)
Number
of teeth
Belt No.
Pitch length
(mm)
Number
of teeth
Belt No.
Pitch length
(mm)
Number
of teeth
