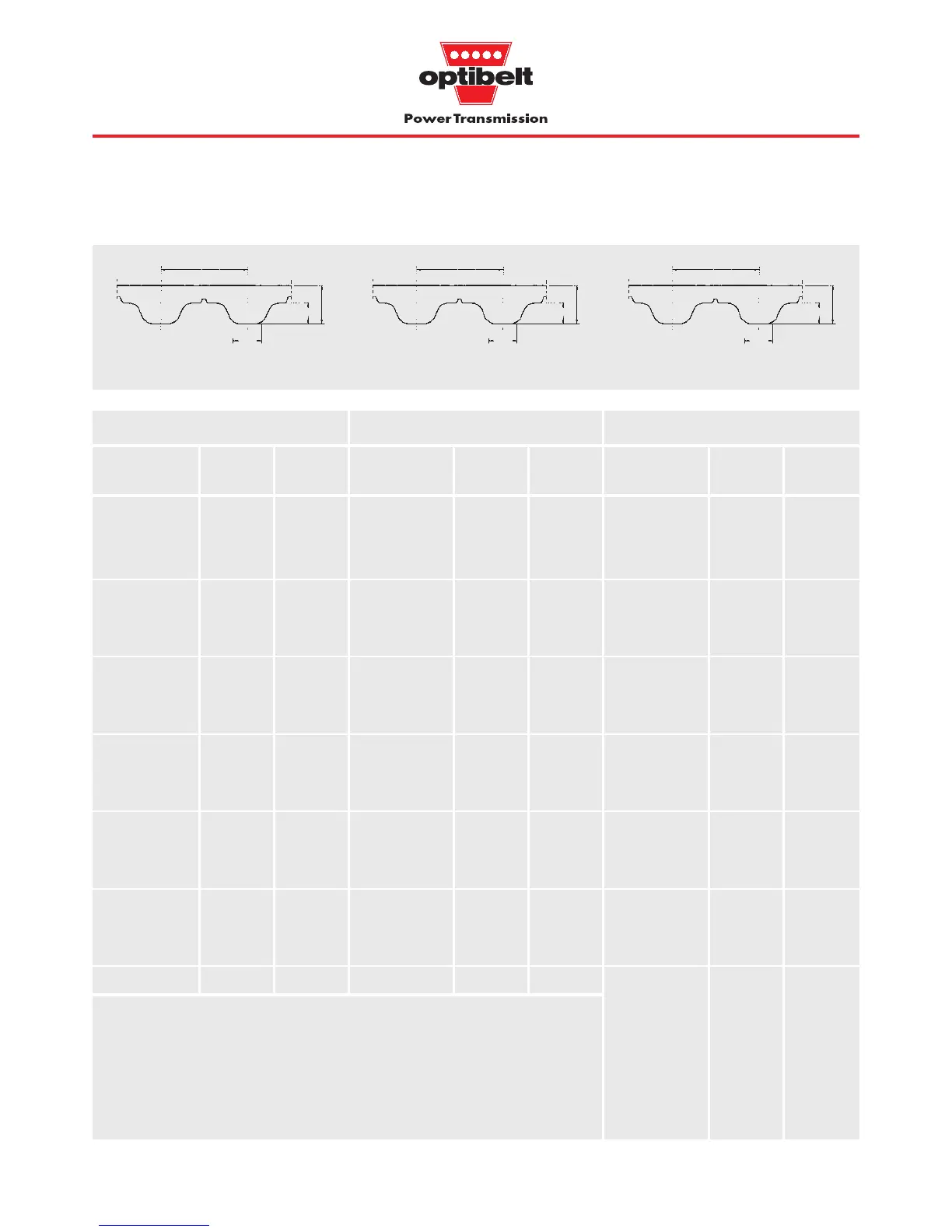

Optibelt ZRP - Page 23

22
Construction: polyurethane with steel-wire cord
Type AT5 – pitch 5 mm Type AT10 – pitch 10 mm Type AT20 – pitch 20 mm
5.0
2.5
1.2
2.7
10.0
5.0
2.5
4.5
20.0
10.0
5.0
8.0
Standard widths:
16 mm – Code 16; 25 mm – Code 25; 32 mm – Code 32; 50 mm – Code 50; 75 mm – Code 75; 100 mm – Code 100.
AT5/1500• 1500.00 300
AT5/1600• 1600.00 320
AT5/1700• 1700.00 340
AT5/1800• 1800.00 360
AT5/1900• 1900.00 380
AT5/2000• 2000.00 400
AT5/2100• 2100.00 420
AT5/2200• 2200.00 440
AT5/2300• 2300.00 460
AT5/2400• 2400.00 480
AT5/2500• 2500.00 500
AT5/2600• 2600.00 520
AT5/2700• 2700.00 540
AT5/2800• 2800.00 560
AT5/2900• 2900.00 580
AT5/3000• 3000.00 600
AT5/3200• 3200.00 640
AT5/3400• 3400.00 680
AT5/3600• 3600.00 720
AT5/3800• 3800.00 760
AT5/4000• 4000.00 800
AT5/4200• 4200.00 840
AT5/4400• 4400.00 880
AT5/4600• 4600.00 920
AT5/4800• 4800.00 960
AT5/5000• 5000.00 1000
AT5/5200• 5200.00 1040
AT5/5400• 5400.00 1080
AT5/5600• 5600.00 1120
AT5/5800• 5800.00 1160
AT5/6000• 6000.00 1200
AT10/1500• 1500.00 150
AT10/1600• 1600.00 160
AT10/1700• 1700.00 170
AT10/1800• 1800.00 180
AT10/1900• 1900.00 190
AT10/2000• 2000.00 200
AT10/2100• 2100.00 210
AT10/2200• 2200.00 220
AT10/2300• 2300.00 230
AT10/2400• 2400.00 240
AT10/2500• 2500.00 250
AT10/2600• 2600.00 260
AT10/2700• 2700.00 270
AT10/2800• 2800.00 280
AT10/2900• 2900.00 290
AT10/3000• 3000.00 300
AT10/3200• 3200.00 320
AT10/3400• 3400.00 340
AT10/3600• 3600.00 360
AT10/3800• 3800.00 380
AT10/4000• 4000.00 400
AT10/4200• 4200.00 420
AT10/4400• 4400.00 440
AT10/4600• 4600.00 460
AT10/4800• 4800.00 480
AT10/5000• 5000.00 500
AT10/5200• 5200.00 520
AT10/5400• 5400.00 540
AT10/5600• 5600.00 560
AT10/5800• 5800.00 580
AT10/6000• 6000.00 600
AT20/1500• 1500.00 75
AT20/1600• 1600.00 80
AT20/1700• 1700.00 85
AT20/1800• 1800.00 90
AT20/1900• 1900.00 95
AT20/2000• 2000.00 100
AT20/2100• 2100.00 105
AT20/2200• 2200.00 110
AT20/2300• 2300.00 115
AT20/2400• 2400.00 120
AT20/2500• 2500.00 125
AT20/2600• 2600.00 130
AT20/2700• 2700.00 135
AT20/2800• 2800.00 140
AT20/2900• 2900.00 145
AT20/3000• 3000.00 150
AT20/3200• 3200.00 160
AT20/3400• 3400.00 170
AT20/3600• 3600.00 180
AT20/3800• 3800.00 190
AT20/4000• 4000.00 200
AT20/4200• 4200.00 210
AT20/4400• 4400.00 220
AT20/4600• 4600.00 230
AT20/4800• 4800.00 240
AT20/5000• 5000.00 250
AT20/5200• 5200.00 260
AT20/5400• 5400.00 270
AT20/5600• 5600.00 280
AT20/5800• 5800.00 290
AT20/6000• 6000.00 300
Optiflex timing belts are available with PAZ fabric.
Length: 1500 mm - 24000 mm
Minimum quantity: according to production capability (100 mm or 150 mm)
Double-toothed timing belts section AT5D / AT10D – on request.
Lengths over 6000 mm on request.
• Non stock items.
3.2 ZRM/ZRP timing belt range
optiflex timing belts, endless manufactured
Belt No.
Pitch length
(mm)
Number
of teeth
Belt No.
Pitch length
(mm)
Number
of teeth
Belt No.
Pitch length
(mm)
Number
of teeth
