ELECTRICAL CONNECTION
Power cables
Five different OptiClimate models are available. For your safety and the safety of the OptiClimate, the fo-
llowing specications should be observed when connecting the power supply: use the circuit breakers and
cable thickness specied
Model
2000 PRO3 & PRO4 1 phase D16 MCB 2.5mm2 cable
2000 PRO3 & PRO4 3 phase D16 MCB 2.5mm2 cable
3500 PRO3 & PRO4 1 phase D16 MCB 2.5mm2 cable
3500 PRO3 & PRO4 3 phase D10 MCB 2.5mm2 cable
6000 PRO3 & PRO4 1 phase D25 MCB 4.0mm2 cable
6000 PRO3 & PRO4 3 phase D16 MCB 2.5mm2 cable
10000 PRO3 & PRO4 1 phase D35 MCB 4.0mm2 cable
10000 PRO3 & PRO4 3 phase D20 MCB 2.5mm2 cable
15000 PRO3 & PRO4 inverter 1 phase D50 MCB 6.0mm2 cable
15000 PRO3 & PRO4 inverter 3 phase D35 MCB 4.0mm2 cable
15000 PRO3 & PRO4 3 phase D25 MCB 4.0mm2 cable *
* The compressor of this unit is divided over 3 phases

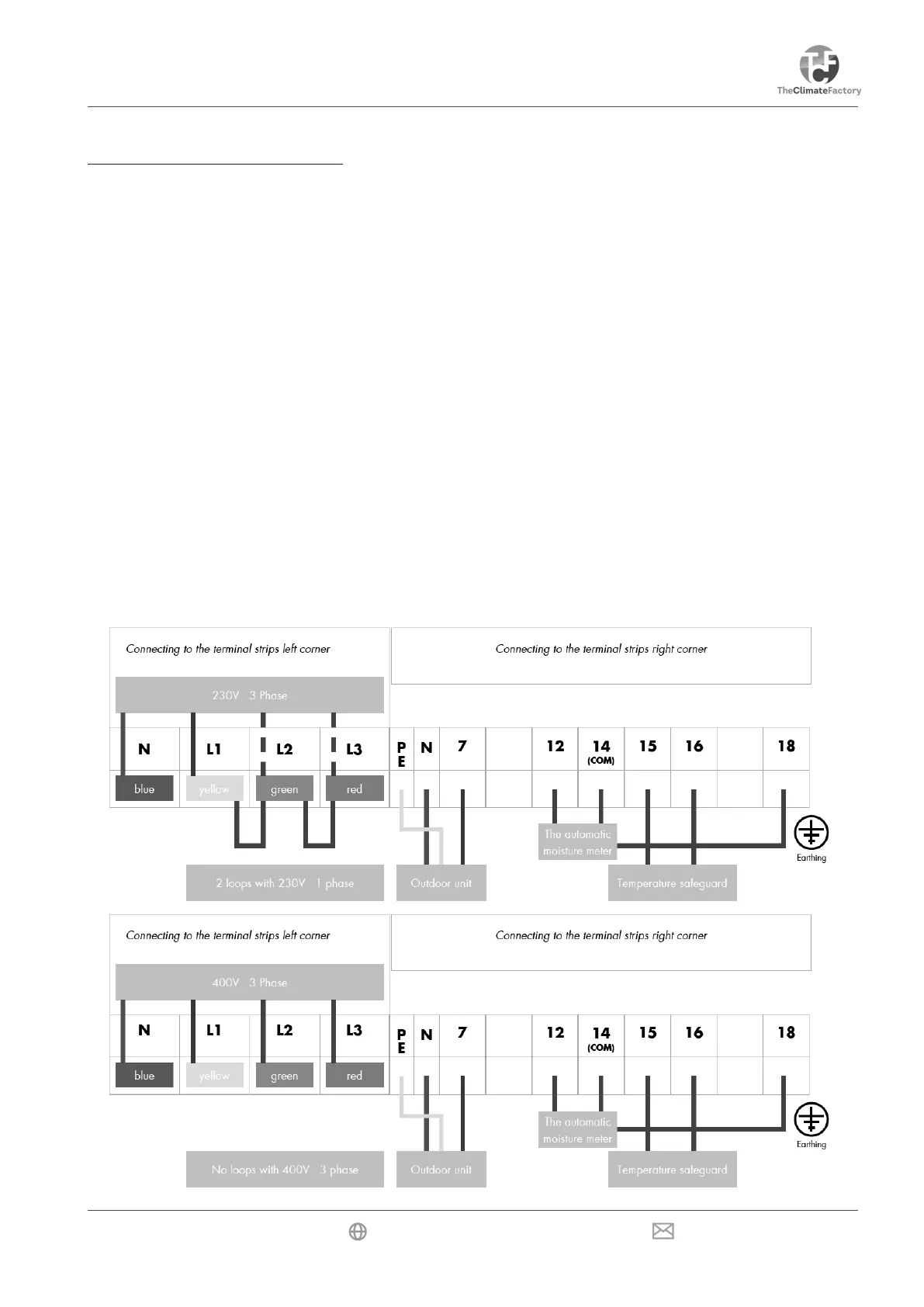

The cables for the supply voltage should be led through the feed-through rubber at the side and connected to
the lefthand side of the terminal strip as described in the illustration. The earthing can be connected to the PE
terminal or to the screw on the metal housing at the bottom right of the terminal strip.
HumidistatoElectroválvulaSin puentes con 400V trifásico
