Inverter models
Note: Failure to observe the above description can cause irreparable damage to compressor/ inverter.

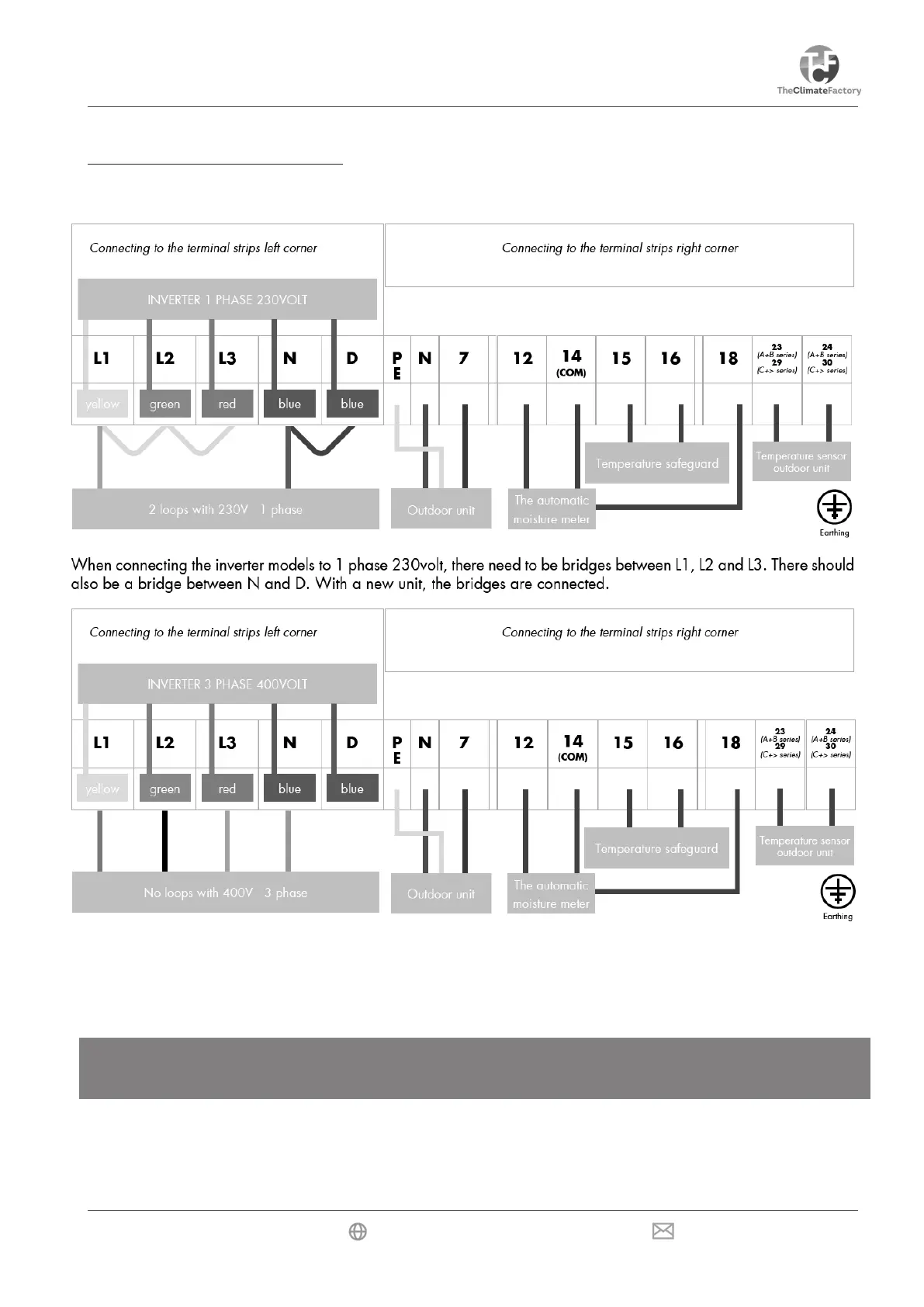

ELECTRICAL CONNECTION
When connecting the inverter models to 3 phase 400volt, there may not be any bridges between L1, L2 and
L3. There may also not be a bridge between N and D. With a new unit, the bridges are always connected.
