Optoma EP719 Service Manual

2-3
EP719 / EP716 / EP719R / EP716R /
EP719P / EP716P

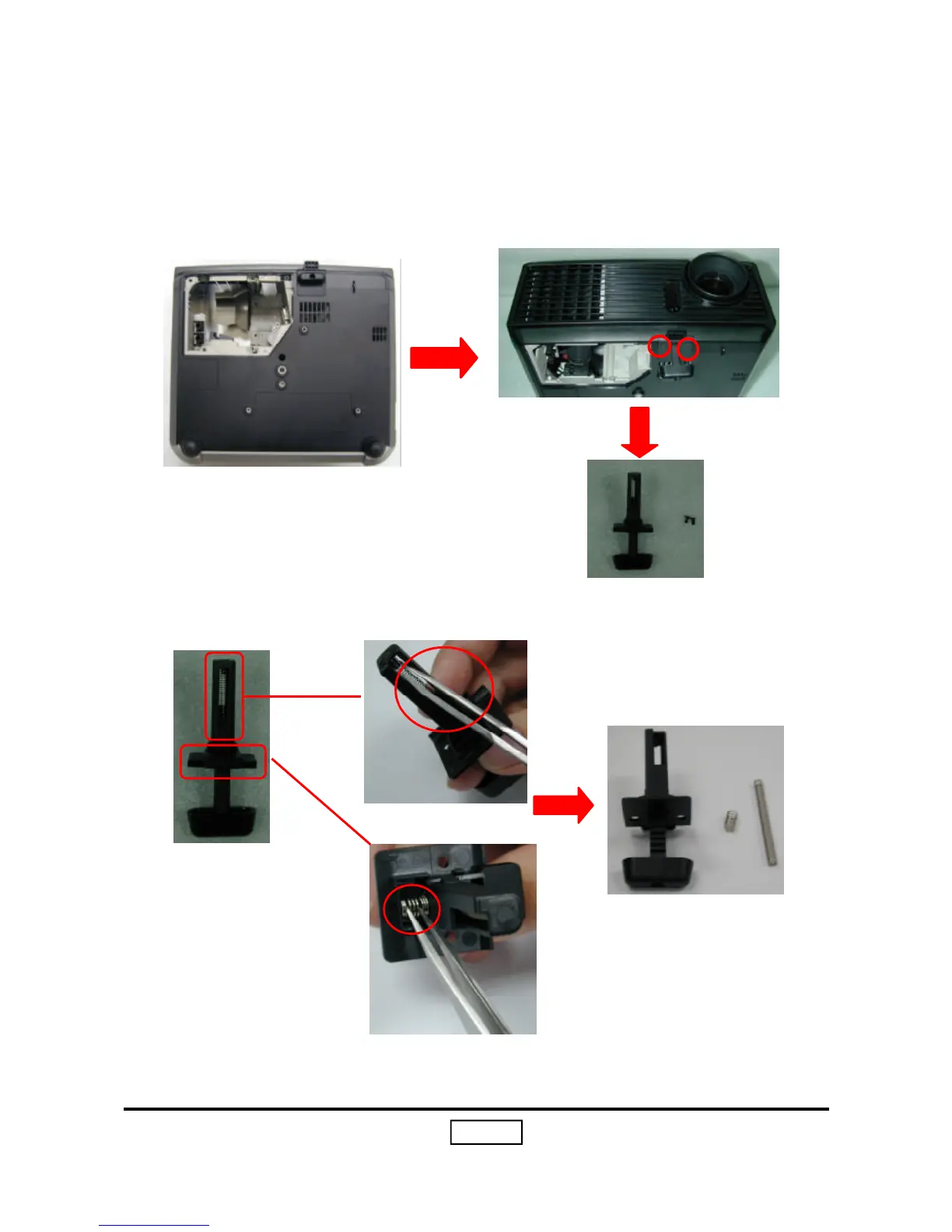

2-2 Remove Elevator Module, Keypad Board and
Top Cover
Step1: Push the elevator and unscrew two screws to remove the elevator module.
1. Remove Elevator Module
Step2: Use a nipper To clip out a small spring and a long spring front the elevator.

Optoma EP719 Specifications

Power

power supply voltage	100-240V
power consumption (max)	265 Watts
power consumption (standby)	<15 Watts

Operating Environment

operating temperature	5 - 35ºC
operating humidity	80%
noise level (STD/ECO)	32dB/28dB

Display

native resolution	1024 x 768
maximum resolution	1400 x 1050
contrast ratio	2500:1

Projection

projection distance	1.2 to 10 m
throw ratio	1.93 - 2.13:1
projection lens	F=2.7-3.0, f=21.83-23.81 mm

Weight and Dimensions

weight	2.0 kg
dimensions	230 x 95 x 210 mm
image size (diagonal)	0.6 to 7.62 m
