2-5
EP719 / EP716 / EP719R / EP716R /
EP719P / EP716P

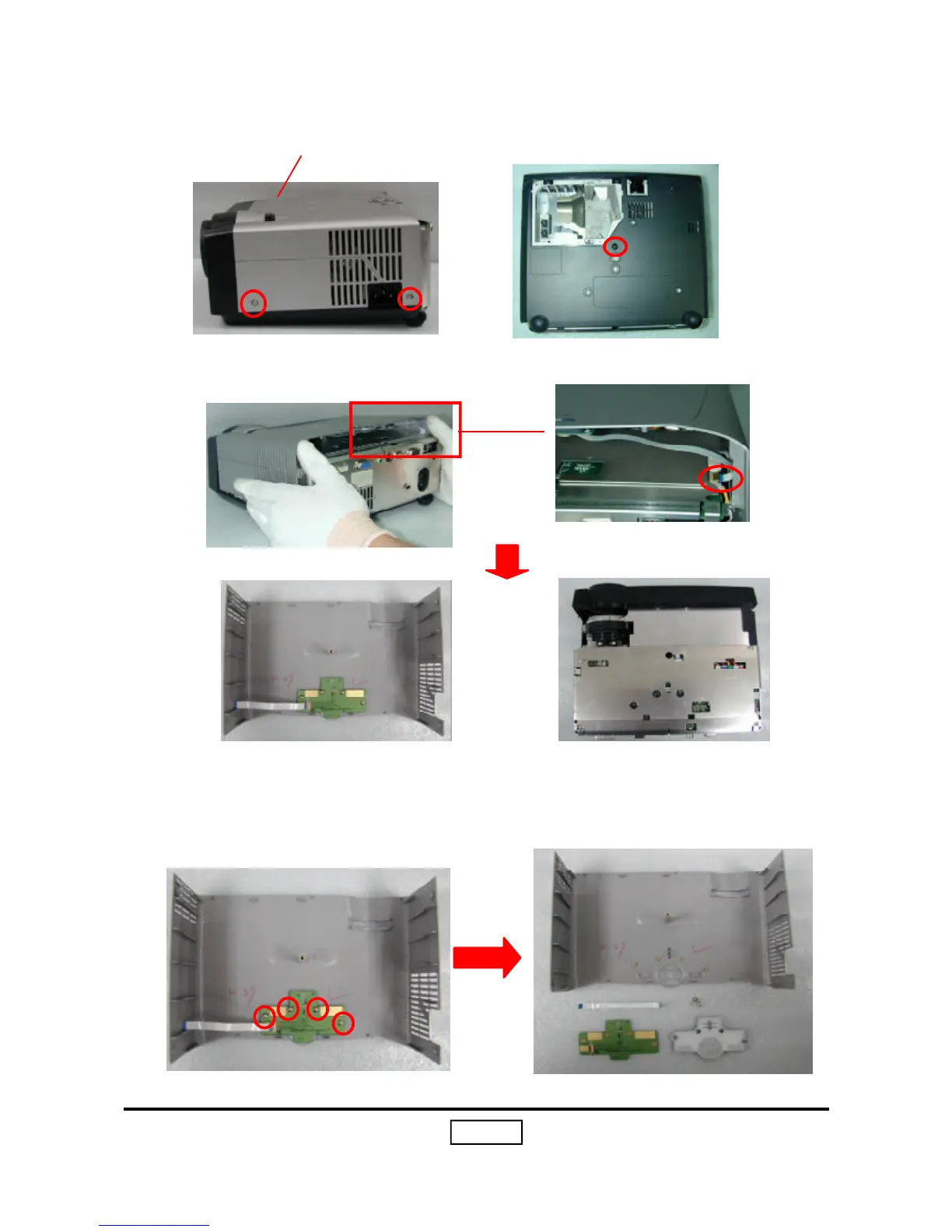

3. Remove Top Cover
Step1: Unscerw five screws. (Two screws in each side, one screw in the bottom)
There are two screws this side.
Step2: Lift the Top Cover and pull out the FPC Cable which connect main board & control board.
4. Remove Control Board and Control Botton
Step 1: Unscrew four screws.
Step 2: Pull up FPC Cable.
Control Board Control Botton
FPC Cable
