Optoma EW536 - Disassemble IO Cover and Security Bar; Disassemble Interlock Switch

EW536/HD66/DW318
Condential 2-13
2-18 Disassemble IO Cover
and Security Bar

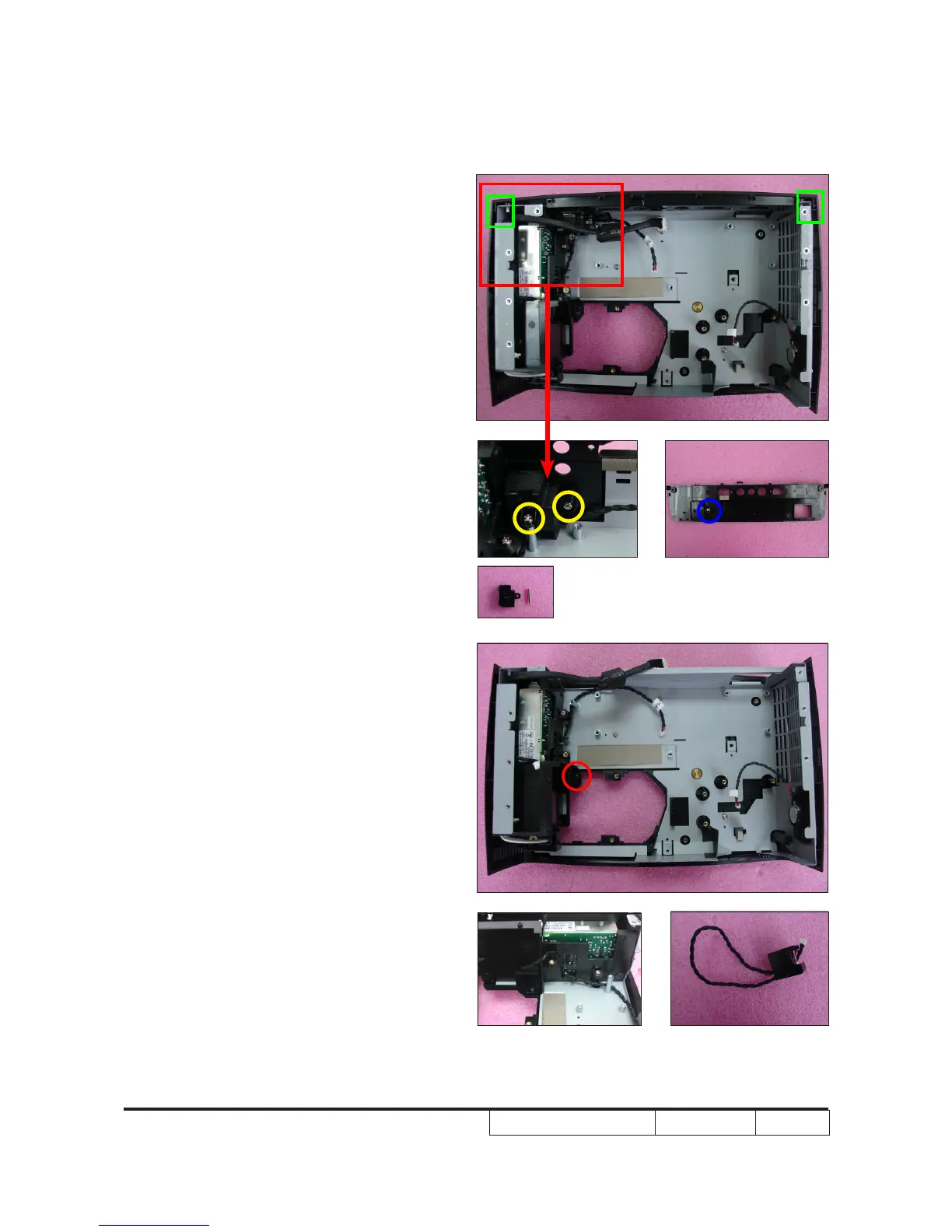

1. Unscrew 2 screws (as yellow circle).
2. Unfasten 2 tenons (as green square).
3. Disassemble the IO Cover.
4. Unscrew 1 screw (as blue circle) to
disassemble the Security Bar and
Security Bar Cap from the IO Cover.
Note: - Take care of the tenons (as green
square) when you disassemble
the IO Cover.
2-19 Disassemble Interlock
Switch
1. Unscrew 1 screw (as red circle) to
disassemble the Interlock Switch.
Note: Make sure the Interlock Switch cable be
wedged llister as the picture shown.
Interlock Switch
