2-2-2 Disassemble Top Cover

Module

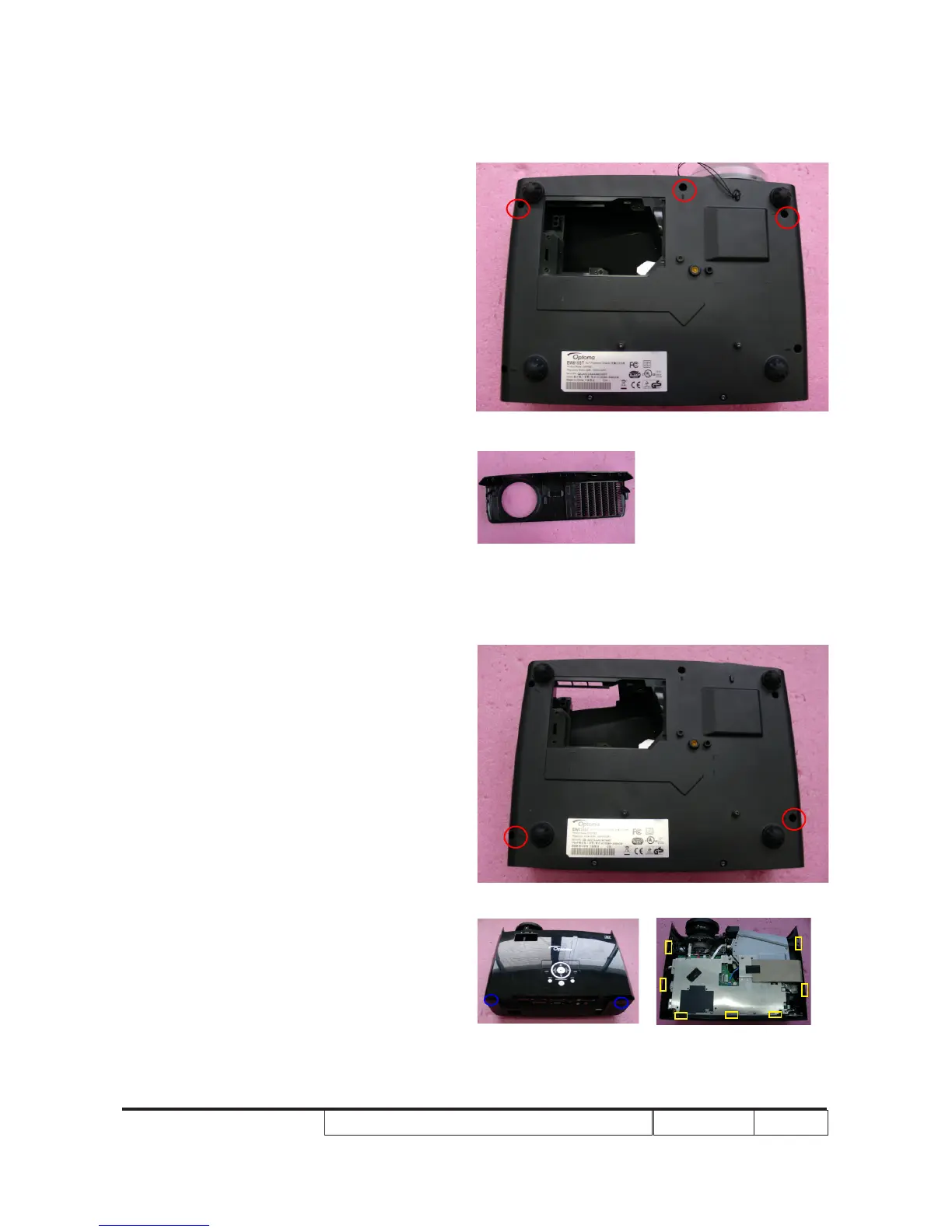

1. Unscrew 2 screws (as red circle) from

bottom cover.

2. Unscrew 2 screws (as blue circle) from

rear cover to disassemble top cover

module.

Note:When you disassemble the top cover,

please pay attention to the tenons(as

yellow square).

2-2 �epair notice �epair notice

2-2-1 Disassemble Front

Cover Module

1.You should disassemble front cover rst

before disassemble the top cover .

2.Unscrew 3 screws (as red circle) to

disassemble front cover Module.

3.Disassembled front cover module.
