EW610ST/EX610ST/EW605ST/EX605ST Condential 2-3
2-2-3 Disassemble �ear
Cover Module

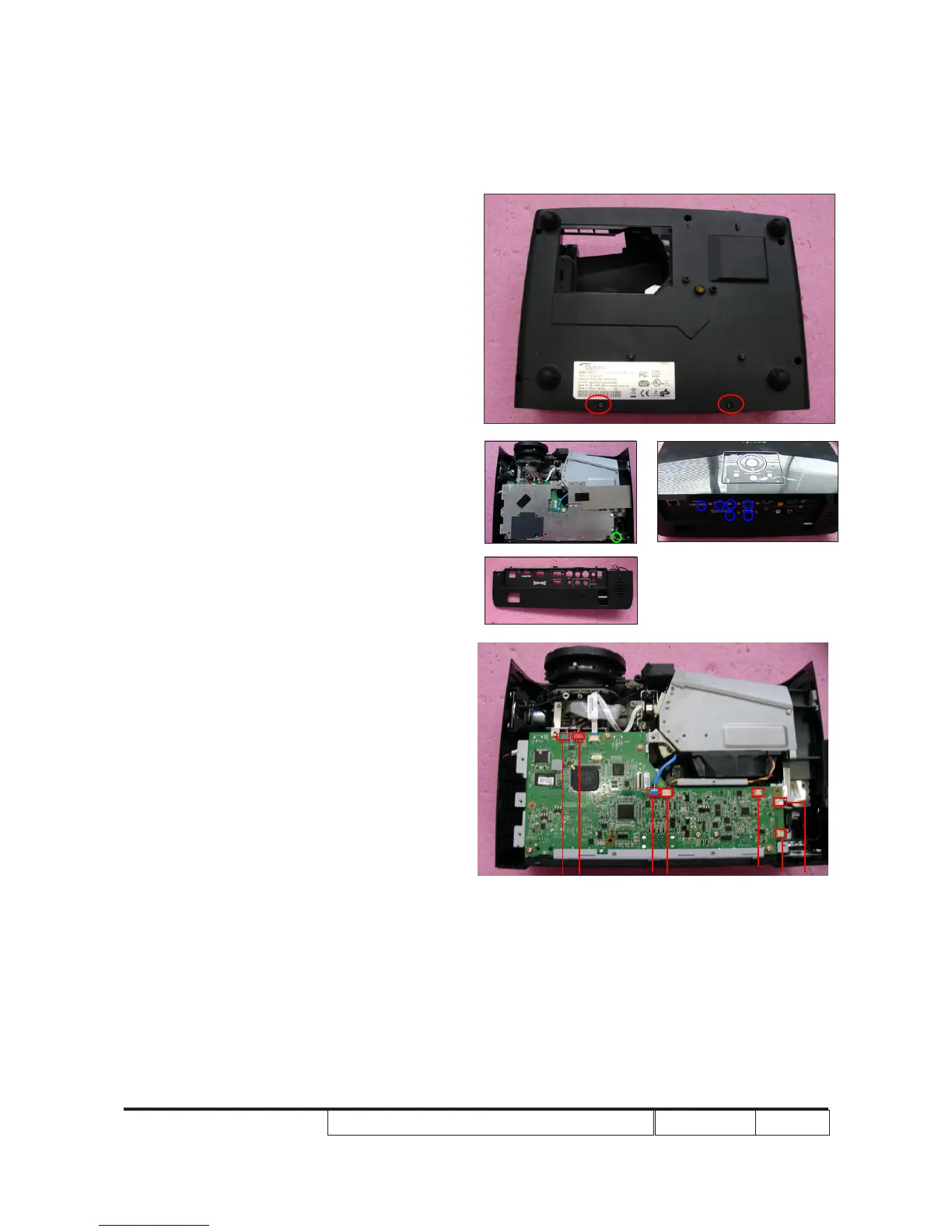

1. Unscrew 2 screws (as red circle) from
Bottom Cover.
2. Unscrew 1 screw(as green circle) from
main board.
3. Unscrew 6 hex screws (as blue circle)
from rear Cover .
4. Disassembled rear cover module.
2-2-4 Disassemble Main
Board
1.Please refer to the below table details of
each connector on Main Board.
A
B
C
D
E
F
G
