EW610ST/EX610ST/EW605ST/EX605ST Condential 2-5

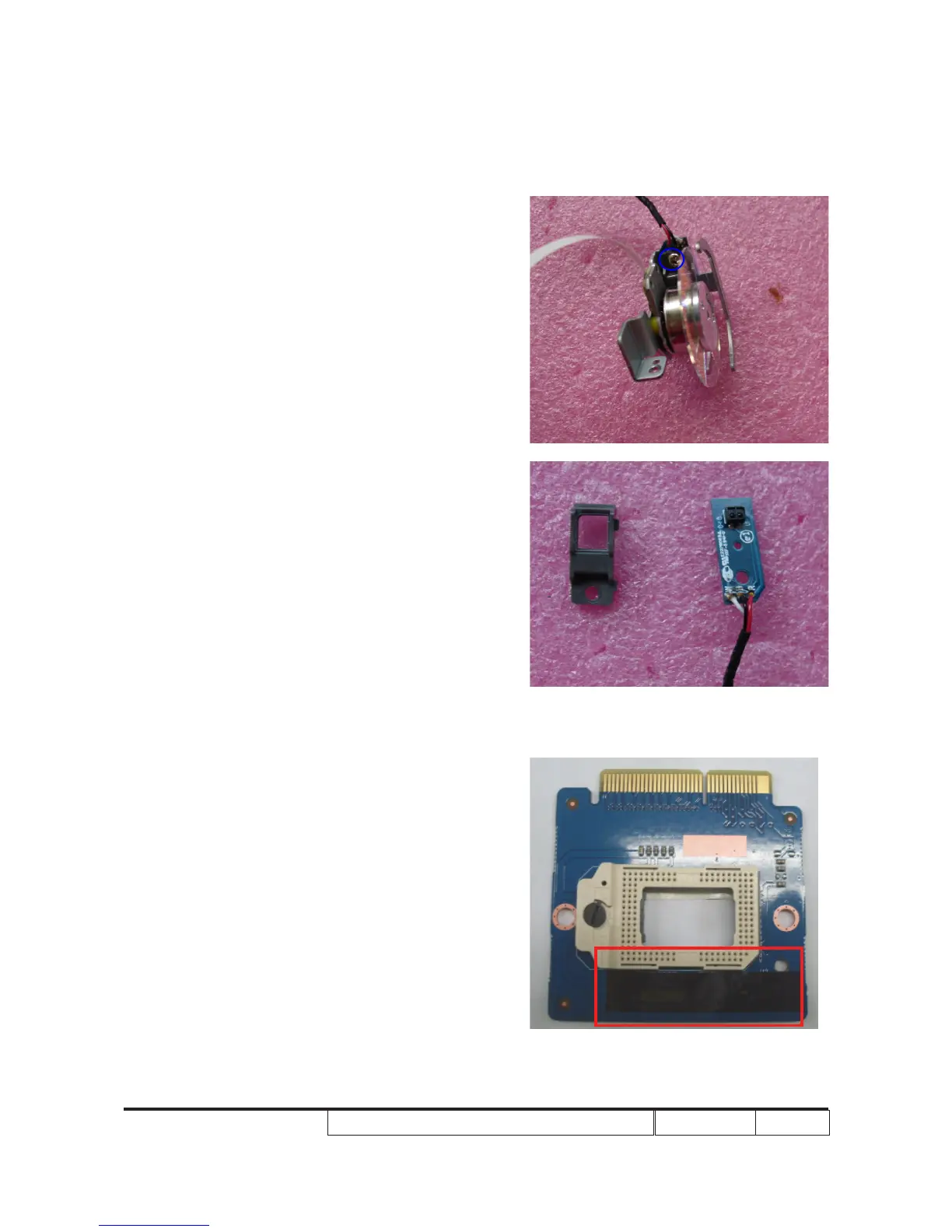

2-2-5 Disassemble Photo sensor
and Photo sensor holder
Unscrew 1 screw (as blue circle) to disassemble the
Photo Sensor Board and Photo Sensor holder from the
Color Wheel Module.
Note: - Avoid touching the glass parts of the color wheel.
2-2-6 Disassemble DMD Board
After replacing DMD board,please paste the EMI mylar
as picture show.
To Next Page
