EW610ST/EX610ST/EW605ST/EX605ST Condential 2-4

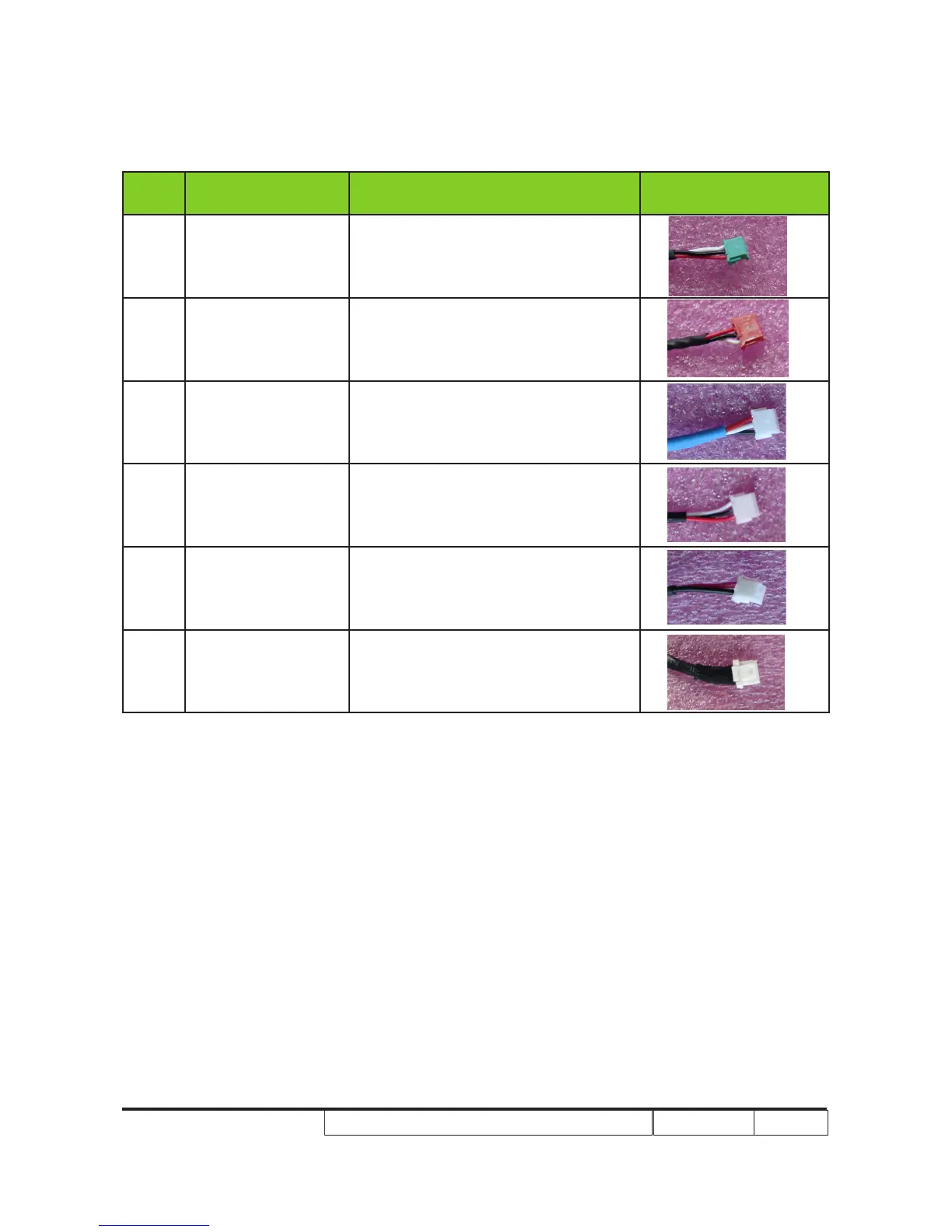

Item

Male Connector

on Main Board

The key feature Figure

A IR

Compose of Red/Black/White Wire (3

pin) and green connector

B Photo Sensor

Compose of Red/Black/White Wire (3

pin) and red connector

C Blower

Compose of Red/White/Black Wire (3

pin) and blue wire tube

D Fan

Compose of Red/White/Black Wire (3

pin) and black wire tube

E&F Speaker Compose of Red/Black Wire (2 pin)

G Lamp

Black wire tube (5 pin)

Note:There is only one speaker for EW605ST&EX605ST,the corresponding item is “F”.
