Removing the Optical cap, shield and Fan

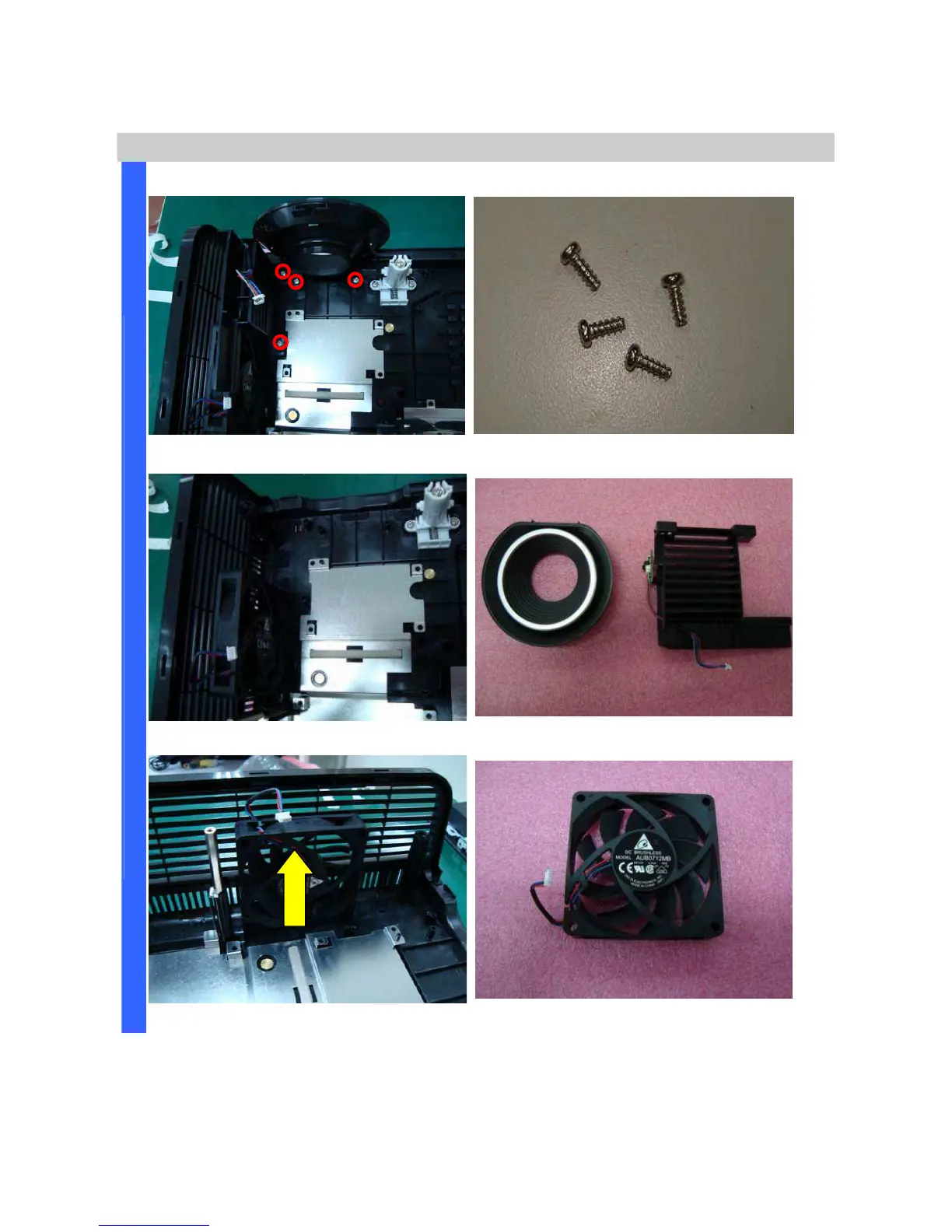

Remove the four screws. Review the four screws (S03).
Remove the Optical cap and shield. Review the Optical cap and shield.
D
I
S
A
S
S
E
M
B
L
Y
Remove the FAN. Review the FAN.
