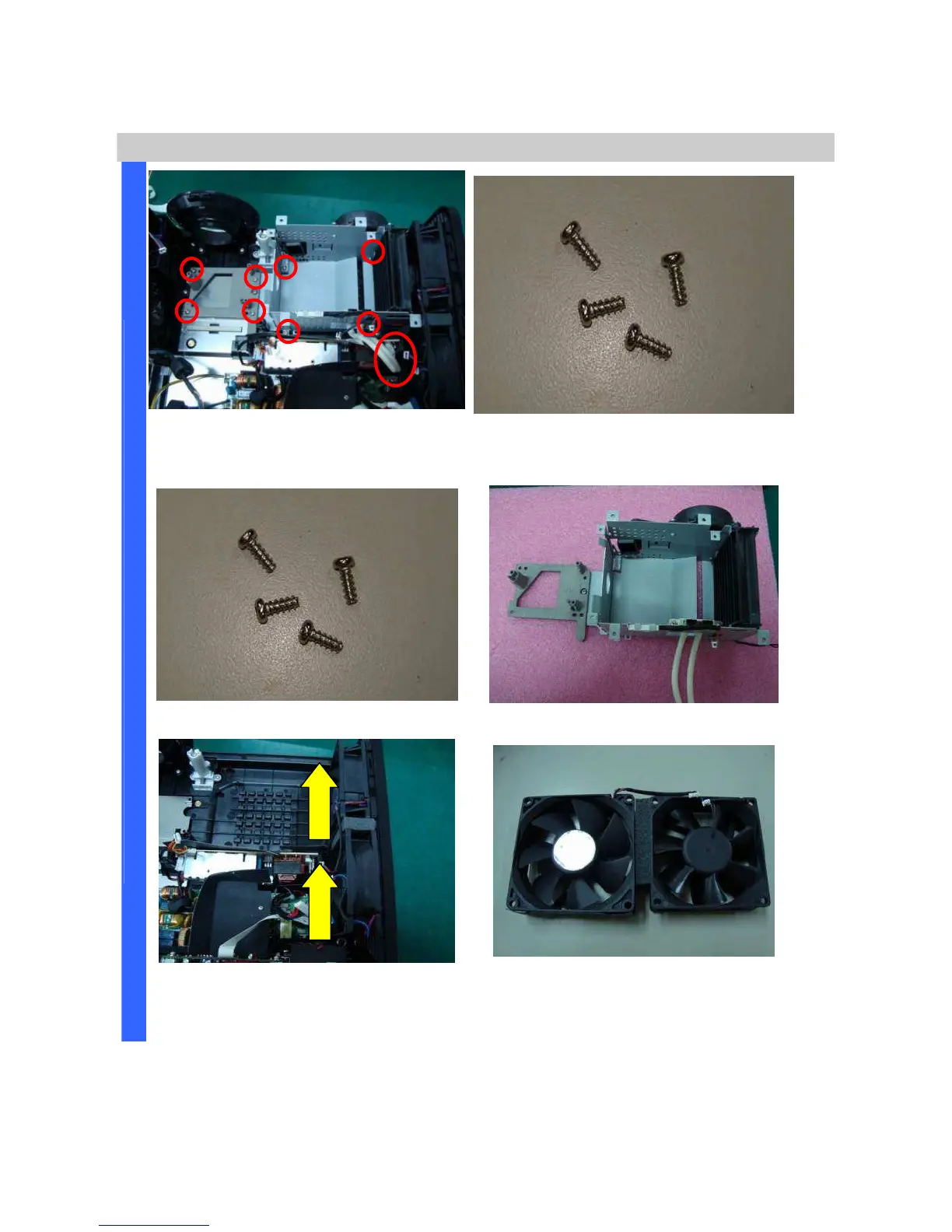

Removing LAMP CHANNEL and Fans
Remove these eight screws
and notice
the ballast connector
Review the four screws (S03).
Review the four screws (S03). Review the lamp channel.
D
I
S
A
S
S
E
M
B
L
Y
Remove the two FANS. Review the FANS.
