Optoma EX779 - Page 31

Delta Elec. Inc. EX779
Company Confidential Optoma__________________ Delta________________
31
2010/04/14

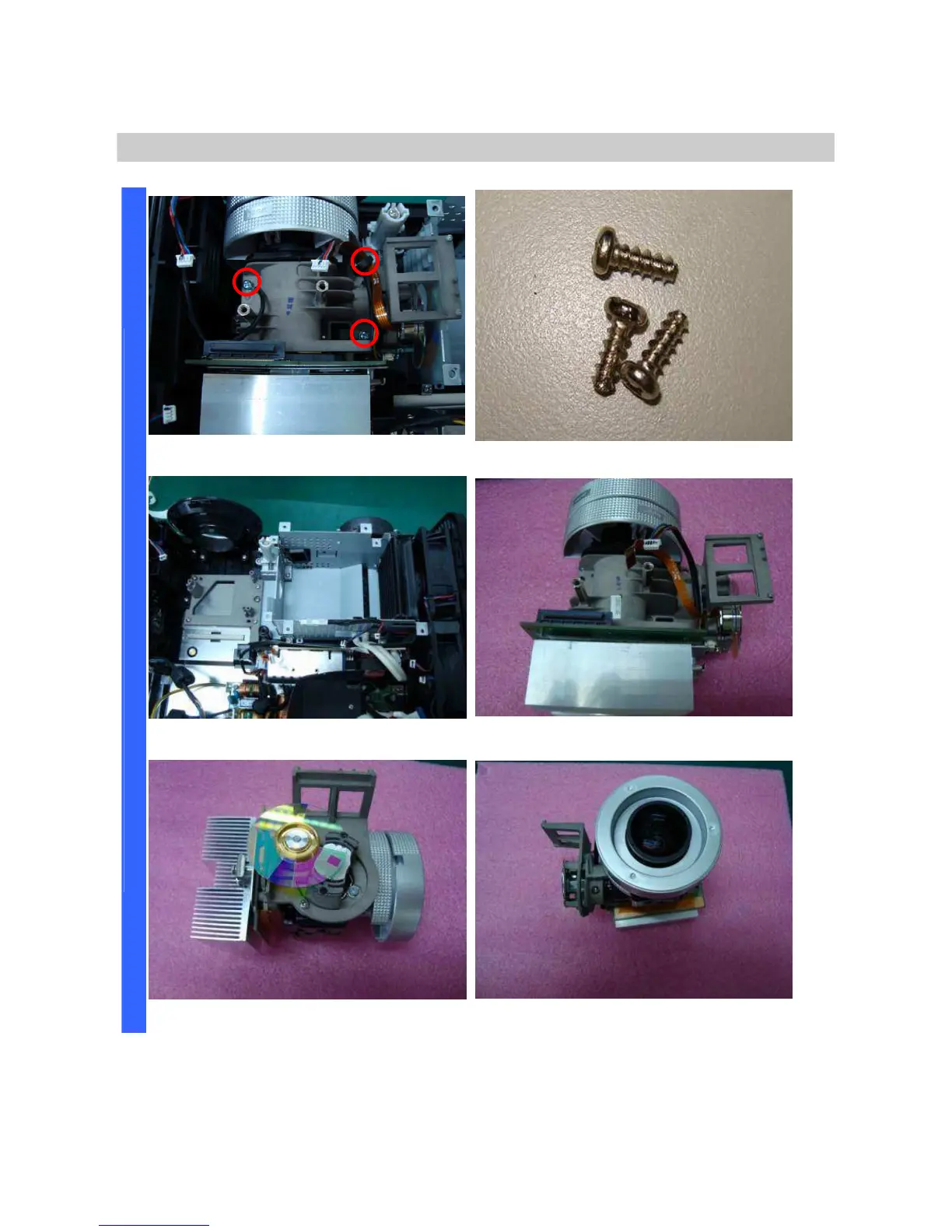

Removing Optical Engine
Remove the three screws. Review the three screws ( S09) .
The Optical Engine is removed. Review the Optical Engine #1
11
1.
D
I
S
A
S
S
E
M
B
L
Y
Review the Optical Engine #2
22
2. Review the Optical Engine #3
33
3.
