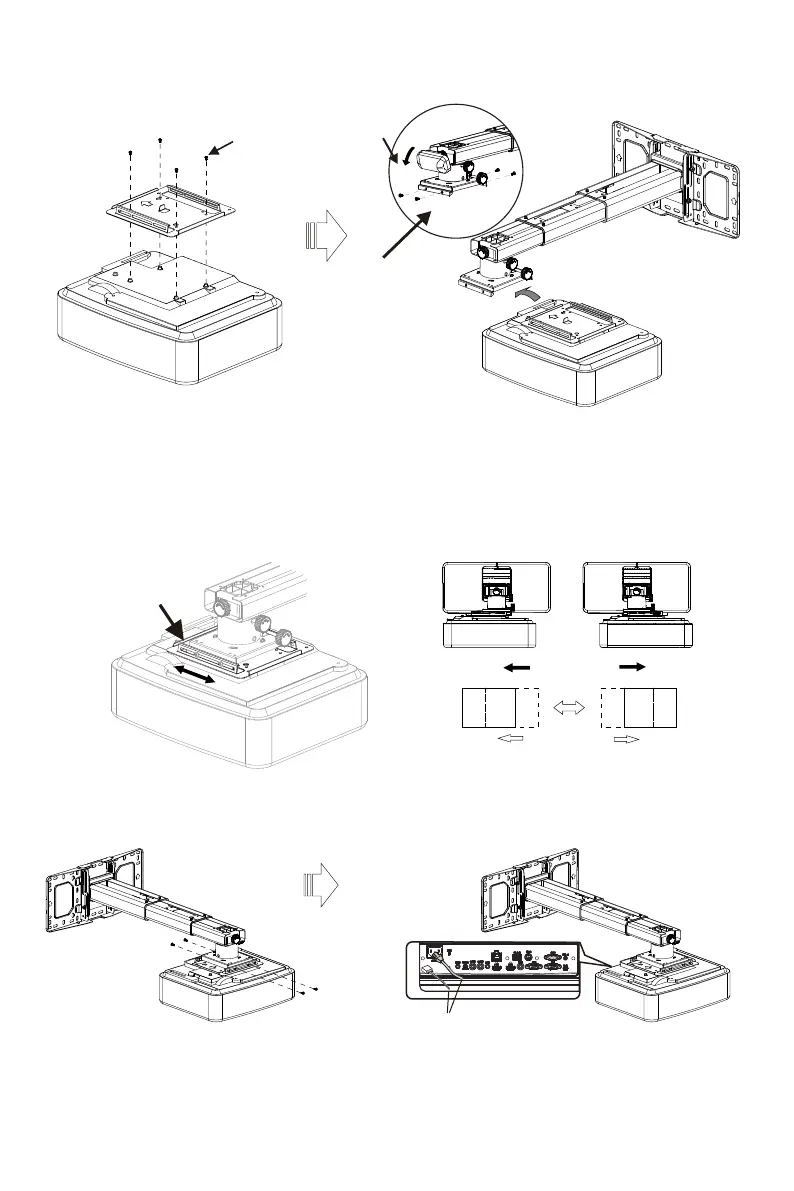

Step 3: Attach the projector to mount plate and to the mount
4
Take off the cap
Loosen the screw
● Loosen the screw on the mount and pre-tighten the projector on the mount.
Step 4: Adjusting the image horizontally
A
A
B
B
Screen Adjustment Direction
to the projector
Tighten the screws
Connect power cable and other signal cable
E
Slide the mount plate
A
B
Power cable
Signal cable
