SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

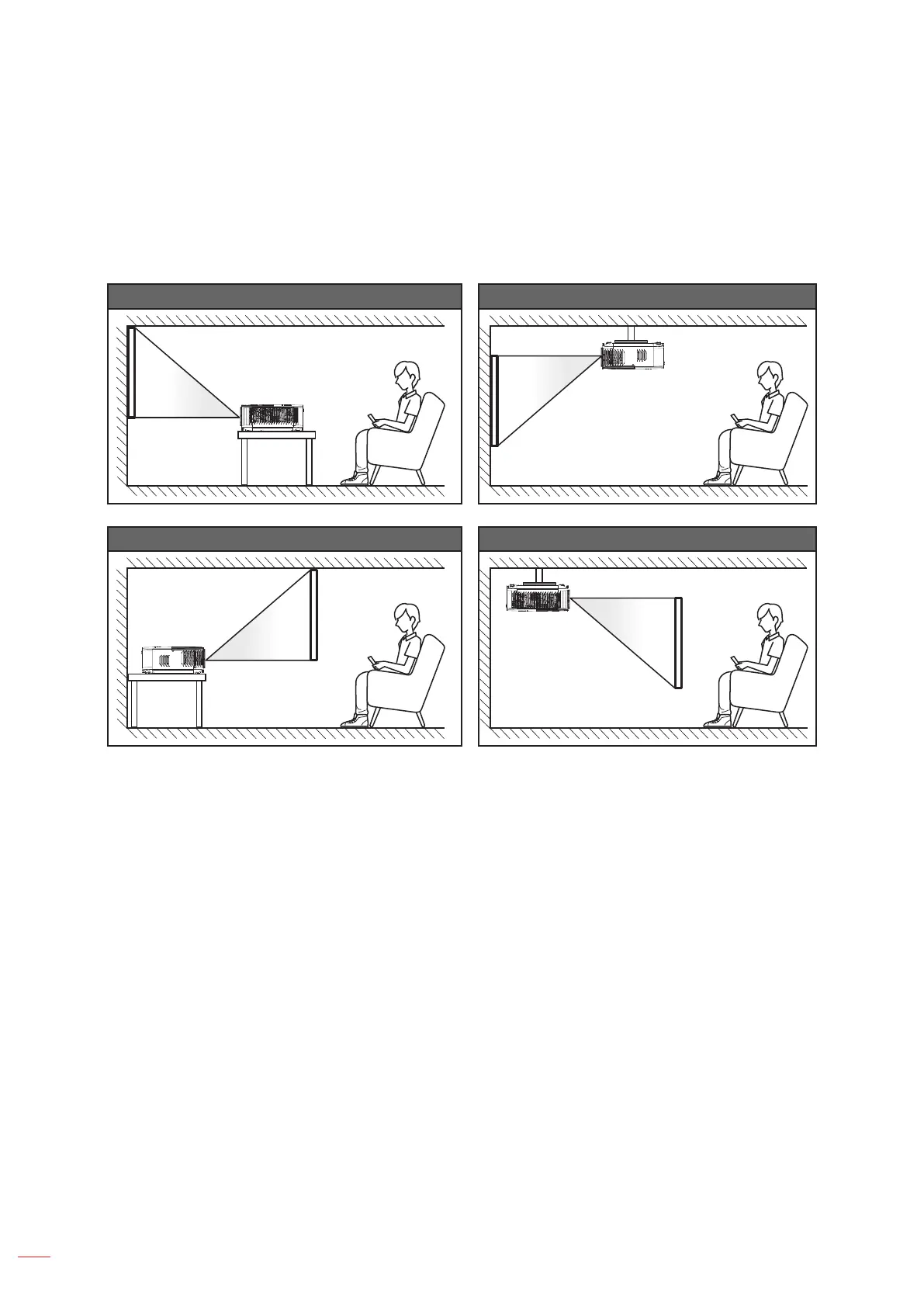

Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
 How to determine projector location for a given screen size, please refer to distance table on
page 67.
 How to determine screen size for a given distance, please refer to distance table on page 67.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate
the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard
installation advise please contact Optoma.

Optoma UHD55 Specifications

General

Native aspect ratio	16:9
Vertical scan range	24 - 120 Hz
Projection technology	DLP
Contrast ratio (typical)	1200000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Light source type	Lamp
Light source brightness	3600 lm
Service life of light source	15000 h
Throw ratio	1.21 – 1.59:1, ±3%
Zoom capability	Yes
Focal length range	12.81 - 16.74 mm
Aperture range (F-F)	1.94 - 2.23
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	3
RMS rated power	10 W
Noise level	26 dB
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3720 g
