SETUP AND INSTALLATION
Adjusting the projector image
Image height

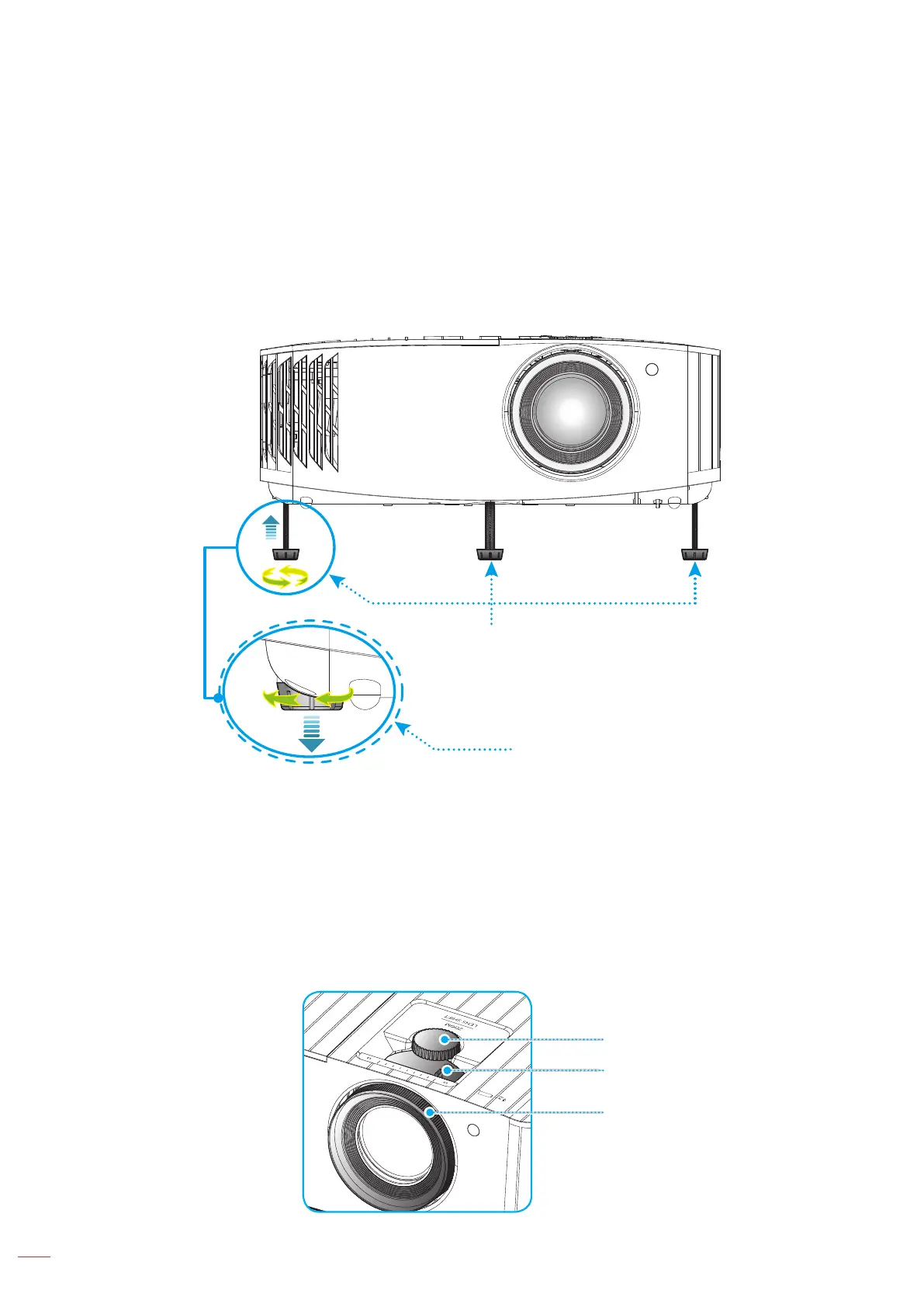

The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
 To adjust the image size and position, do the following:
a. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
b. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
 To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
Lens Shift
Zoom Lever
Focus Ring
Note: The projector will focus at a distance of 1.2m to 8.1m.

Optoma UHD55 Specifications

General

Native aspect ratio	16:9
Vertical scan range	24 - 120 Hz
Projection technology	DLP
Contrast ratio (typical)	1200000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Light source type	Lamp
Light source brightness	3600 lm
Service life of light source	15000 h
Throw ratio	1.21 – 1.59:1, ±3%
Zoom capability	Yes
Focal length range	12.81 - 16.74 mm
Aperture range (F-F)	1.94 - 2.23
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	3
RMS rated power	10 W
Noise level	26 dB
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3720 g
