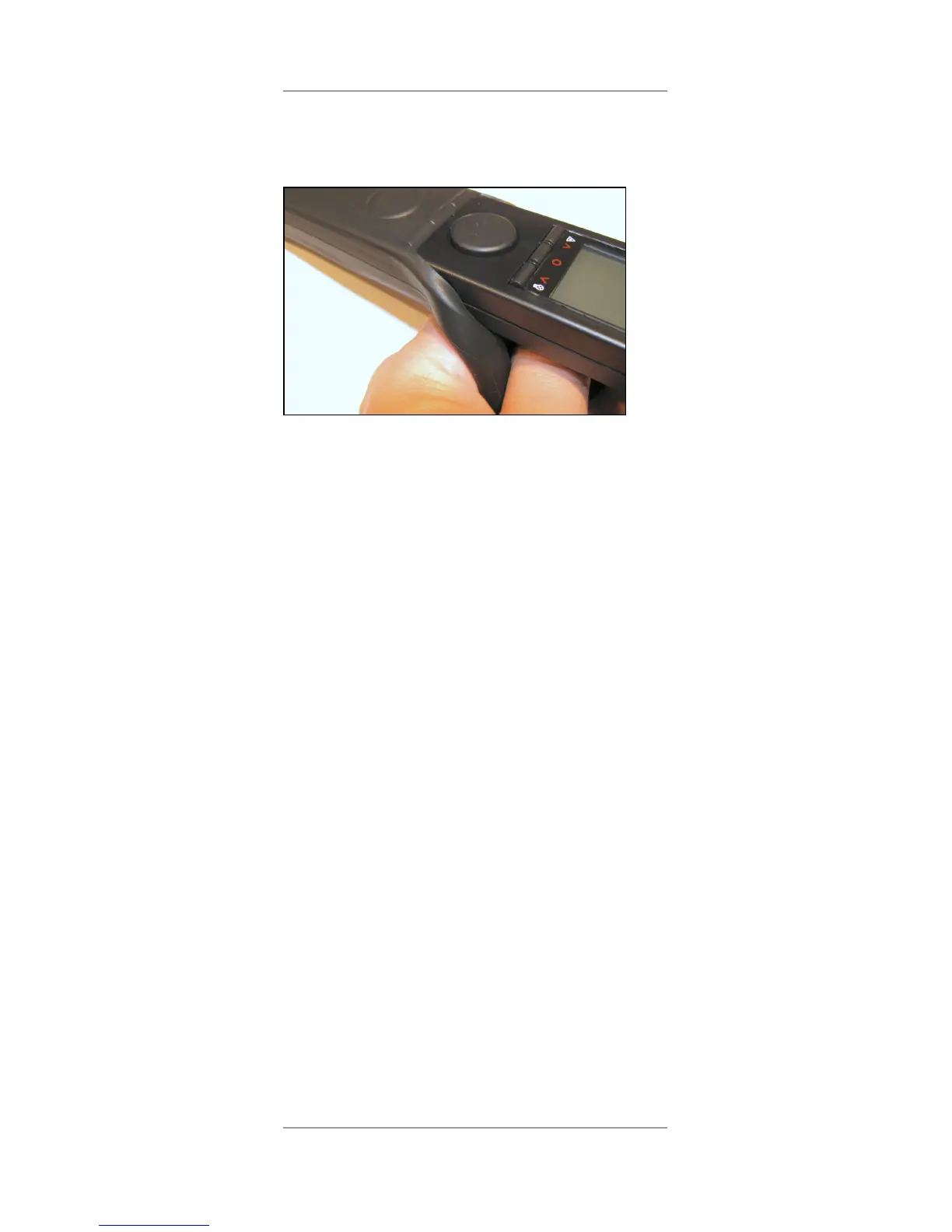

Slide the MS into the boot as shown in the
picture. Then pull the front part of the boot
carefully over the optics of the MS.
All operating elements and connections are still
accessible if the protection boot is used.
Basic Operation
TEMPERATURE MEASUREMENT
Please aim with the unit at the target and press
the T
RIGGER.
HOLD function: After release of the T
RIGGER all
display values will be shown for 7 seconds.
Shut down: If you do not press any button
during the HOLD mode the unit shuts down
automatically after 7 seconds.
DISPLAY BACKLIGHT
Please press the D
OWN button while the
T
RIGGER is pressed to switch the display
backlight on or off.
L
ASER
Please press the U
P button while the TRIGGER is
pressed to activate/ deactivate. The current
status will be shown in the display.
optris MS – DE2011-04-A
27
