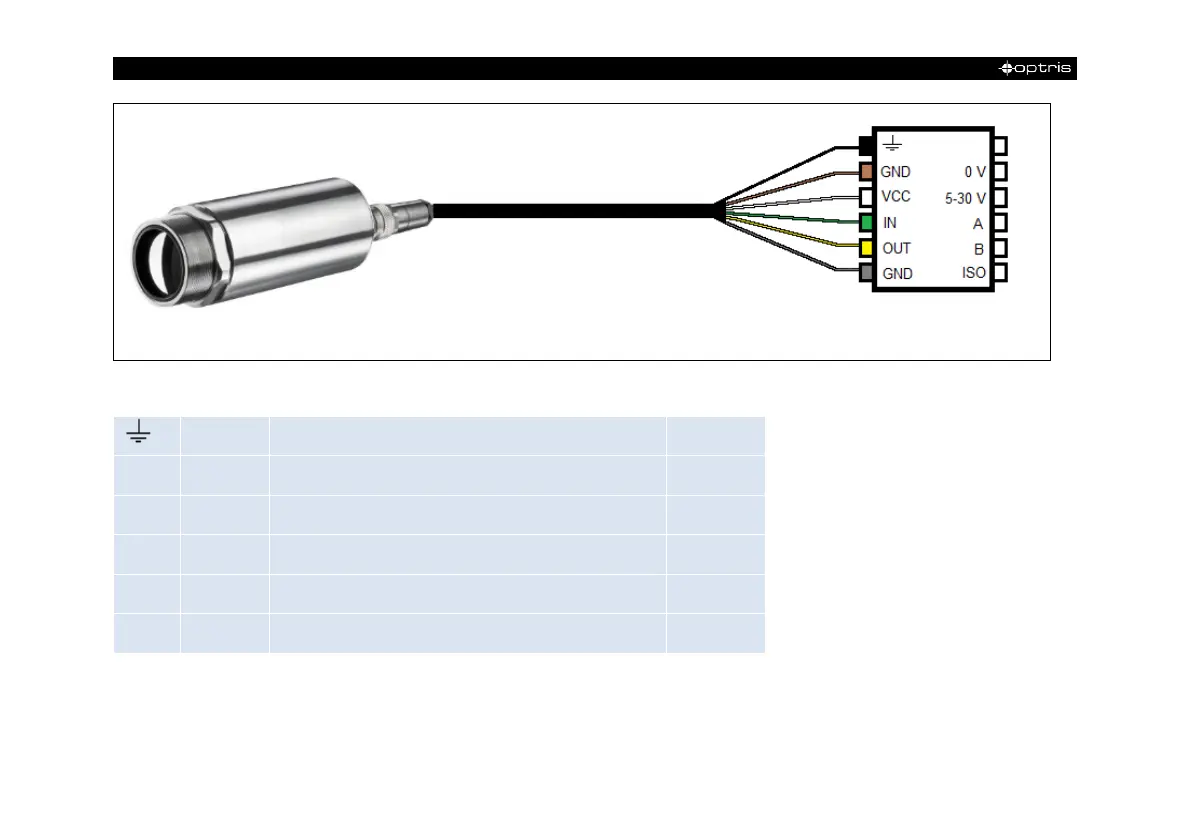

Figure 24: Configuration terminal block Xi 80/410
Shield
Black
GND
0 V
Ground
Brown
VCC
5-30 V
Power
1)
White
IN
A
Analog/Digital Input or RS485 (A)
Green
OUT
B
Analog Output or RS485 (B)
Yellow
GND
ISO
Isolated Ground for IN and OUT
Gray
1)
Power supply only necessary when using the Ethernet connection (without PoE) or self-sufficient operation
