Oracle MICROS 700 Series Setup Guide

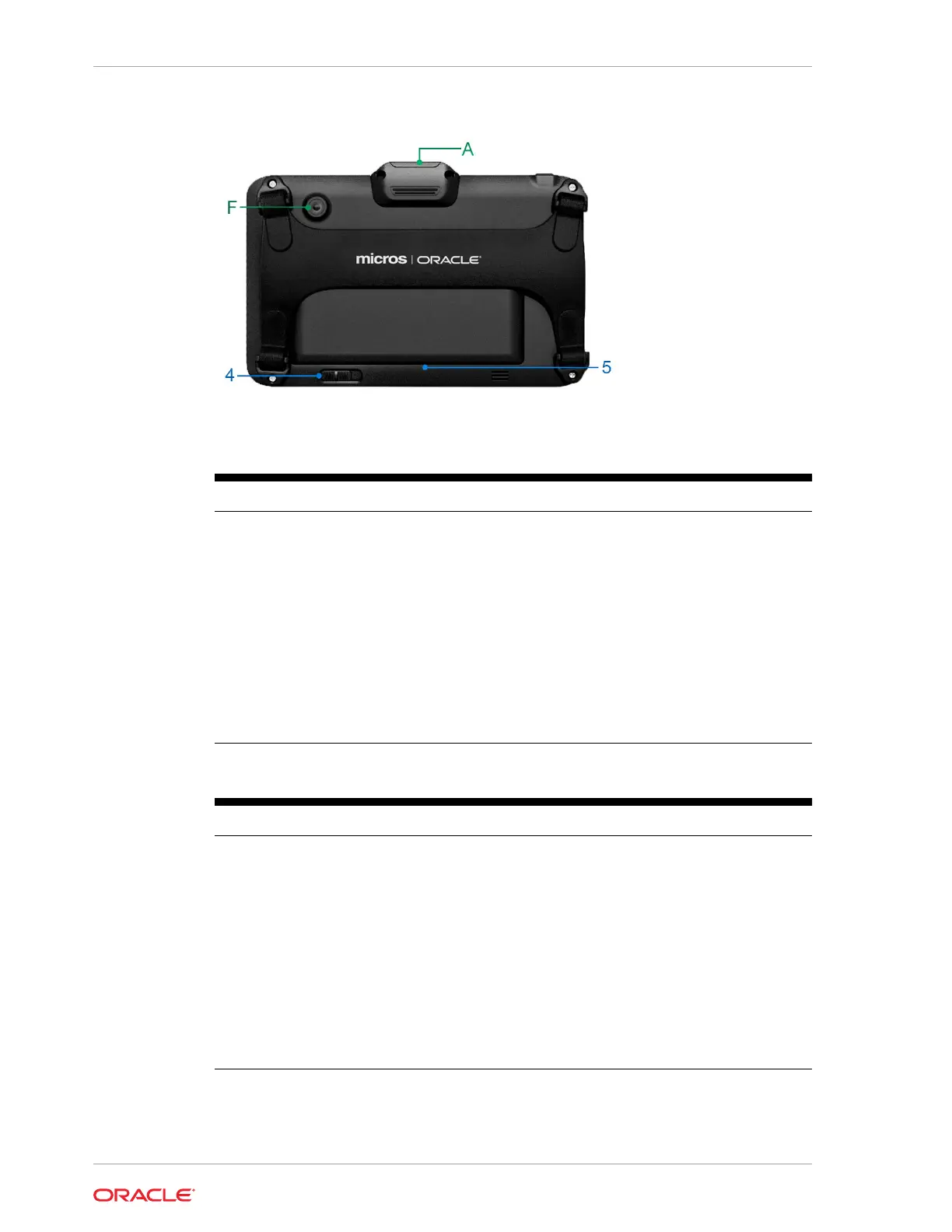

Figure 1-3 The Features of the Oracle MICROS Tablet 721 — Back View
Table 1-2 Input/Output Port on the Oracle MICROS Tablet 721
Feature Description
A. Barcode Scanner (Optional) Captures and reads information contained in a
bar code.
B. Magnetic Stripe Reader (MSR) Reads the information encoded in the
magnetic stripe of payment cards.
C. Headphone Jack Use to connect a headphone, a microphone,
or a headset.
D. USB Port Use to connect peripherals such as storage
devices, printers, and displays.
E. 12V DC Power Input Use to connect a power supply to provide
power to your tablet and charge the battery.
F. Camera Use to take photographs.
Table 1-3 Button Functions on the Oracle MICROS Tablet 721
Feature Description
1. Power Button Turns the tablet on or off.
2. Scanner Trigger Use to activate the barcode scanner.
3. Battery/Power LED Indicates the power and battery status.
Battery LED Status has more information on
the behavior of the LED.
4. Battery Latch Use to unlock and remove the battery.
5. Battery Sensor Senses the presence of a battery. Located in
the battery compartment under the battery.
Inadvertently pressing this when the battery is
removed disables the “hot swap” capability
and causes the tablet to power off.
Chapter 1
Tablet 721 Features
1-4
