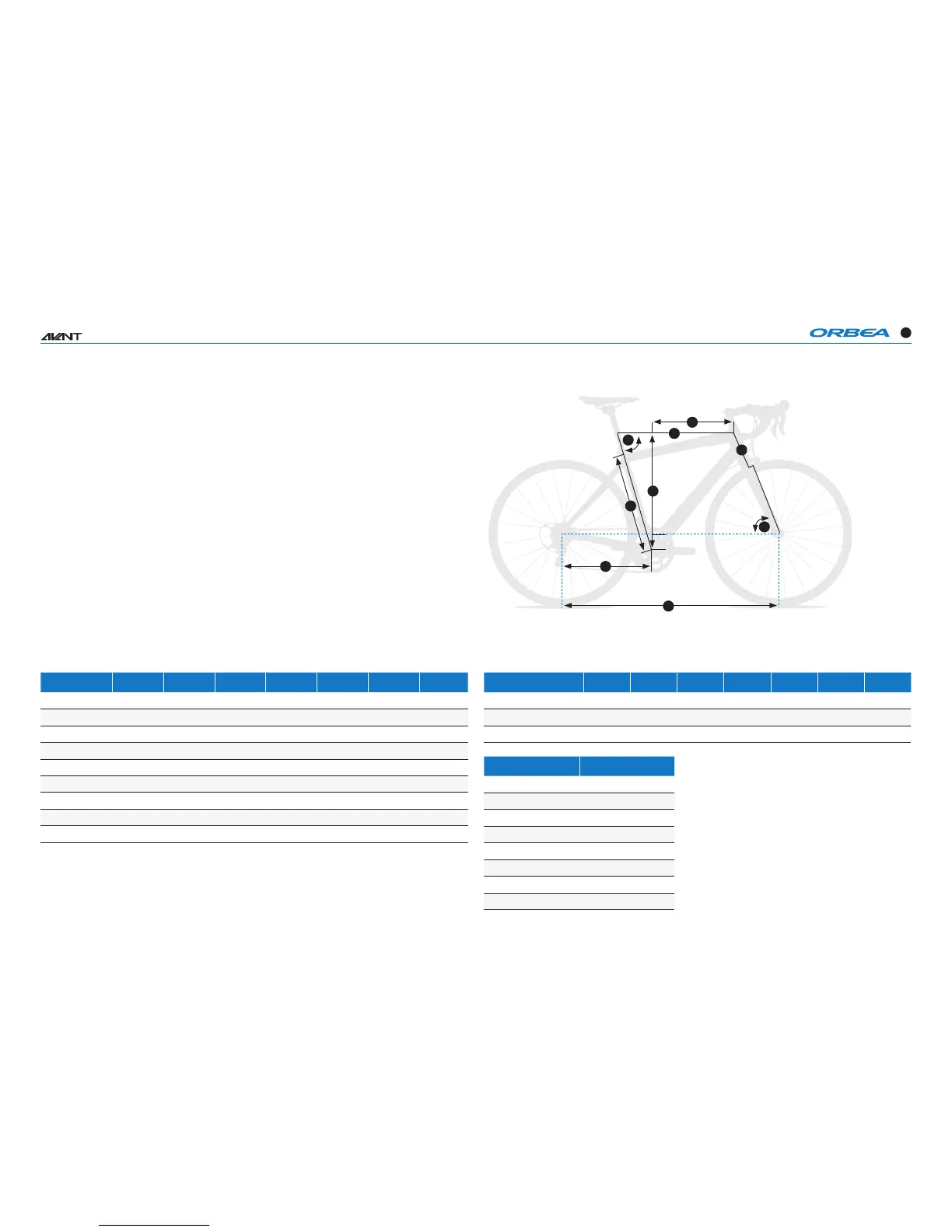

TECHNICAL SPECIFICATIONS
3
GEOMETRY AND
SPECIFICATIONS
*Altura orientativa y que puede variar según morfolo-
gia del usuario y preferencias geometricas y de uso
7
5
4
1
3
6
2
9
8
SIZES (mm) 47 49 51 53 55 57 60
1.
Seat tube 410 420 470 490 510 530 560
2.
Top tube 518 527 536 549 564 580 594
3.
Head tube 113 129 147 165 188 205 226
4.
Chain stay 414 414 414 414 418 418 418
5.
Wheelbase 978 980 985 994 1005 1014 1024
6.
Reach 363 367 371 378 383 392 400
7.
Stack 517 536 555 573 596 615 636
8.
Seat angle 73,5° 73,5° 73,5° 73,5° 73,2° 73° 73°
9.
Head angle 71,2° 71,4° 71,8° 72° 72,5° 73° 73,5°
SIZE (mm) 47 49 51 53 55 57 60
Crank 170 170 170 172 172 175 175
Stem 90 90 100 110 110 120 130*
Handlebar 400 400 400 420 420 440 440
HEIGHT (cm) SIZES
< 160 47
160-165 49
165-170 51
170-175 53
175-180 53-55
180-185 55-57
185-190 57
>190 60
