TECHNICAL MANUAL BLUE PAPER GAIN · HYDRO 202146 | ORBEA ORBEA | 47
EN
STEM

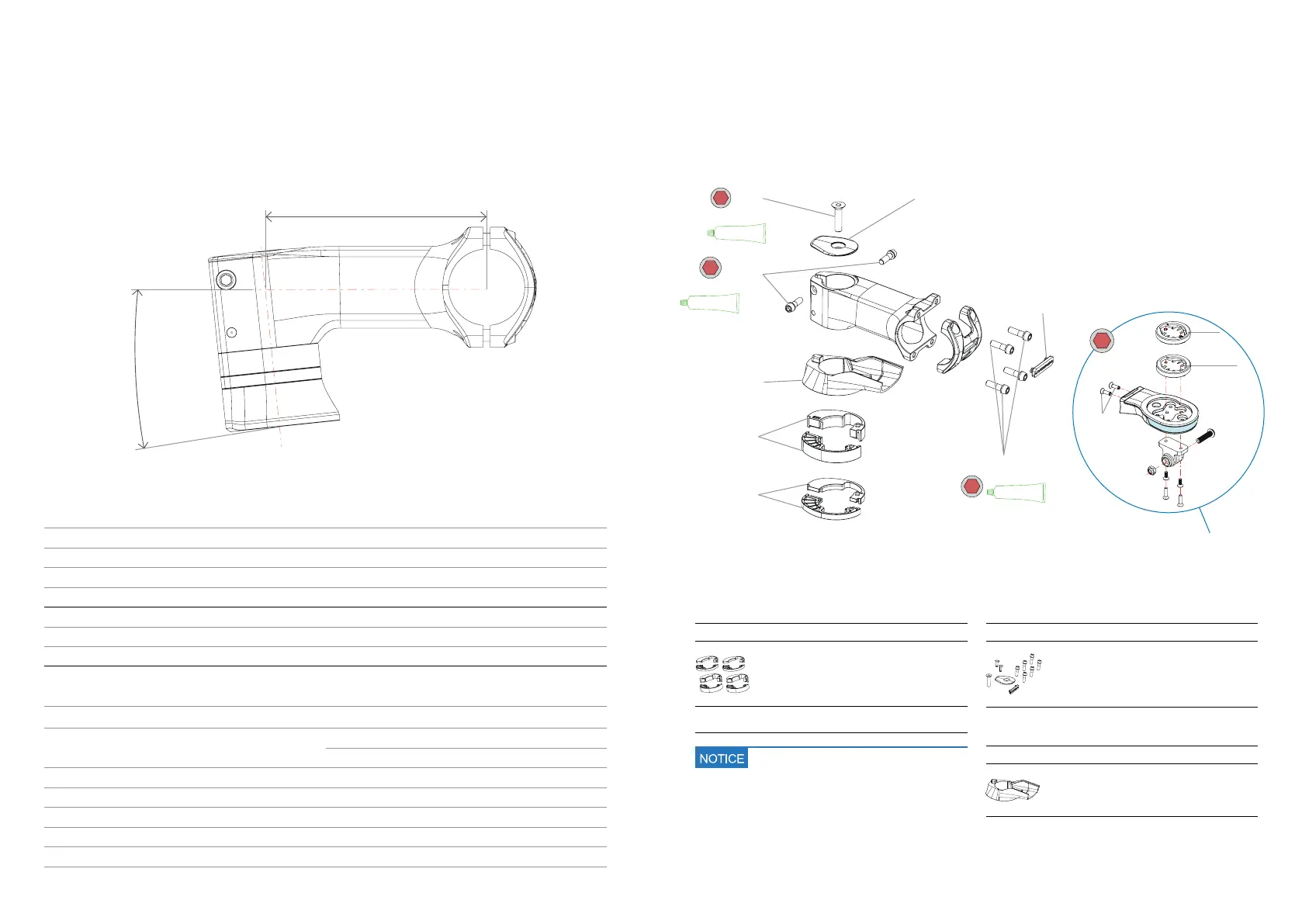

OC1 ROAD STEM ASSEMBLIES
SPARE PARTS AND ASSEMBLY.
OC1 ROAD STEM
MATERIAL ALUMINUM
Ø FORK 1" 1/8
Ø HANDLEBAR 31.8mm
STEERER TUBE CLAIMPING AREA HEIGHT
38mm
FRAME
60mm
*GCFVWDGGZVGTPCNOCZ´ 58mm
6QRDGCTKPIGZVGTPCN´
52mm
INTERNAL CABLING
Up to 2 brake hoses, 2 gear outers and a front light cable
(with ICR headset cover and headset spacers)
SHIMANO Di2 External cabling
CYCLE COMPUTER ADAPTER
ON FACE PLATE
COMPUTER MAXIMUM SIZE: GARMIN 1030
AVAILABLE LENGHTS (L) 80, 90, 100, 110, 120
TILT -2.5º
HEADSET SPACERS 5mm and 10mm. ORBEA ICR INTERNAL CABLING SPECIFIC
TOPCAP ORBEA SPECIFIC
WEIGHT 167 gr (100 mm)
OC1 ROAD STEM
(ICR INTERNAL CABLING THROUGH HEADSET)
TILT -2.5º
L
4
5 N.m
4
6 N.m
2
2 N.m
21.1
21.3
23
20.1
20.2
GREASE
GREASE
21.2
21.5
Garmin
Wahoo
21.3
21.4
22
GREASE
4
6 N.m
20 HEADSET SPACERS KIT INT CABLING. ROUND
ART Nº: X0780000 QTY.
20.1 10mm INTERNAL CABLING H/SET
SPACER.ROUND
4
20.2 5mm INTERNAL CABLING H/SET
SPACER.ROUND
4
22 OC COMPUTER MOUNT. WITH LIGHT
21 HARDWARE KIT OC1 ROAD STEM
ART Nº: X0690000 QTY.
21.1 BOLT M6x35 TOPCAP 1
21.2 TOPCAP OC1 ROAD STEM 1
21.3 BOLT M5x15 STEERER AND FACEPLATE 6
21.4 BOLT M3x10 2
21.5 LOGO ORBEA FACEPLATE 1
23 LOWER OC1 STEM COVER. INTERNAL CABLING.
ROUND
ART Nº: X0790000 QTY.
.19'41%56'/%18'4+06'40#.
CABLING ROUND
1
Consult the lights section of this manual.
