TECHNICAL MANUAL BLUE PAPER GAIN · HYDRO 202164 | ORBEA ORBEA | 65
EN

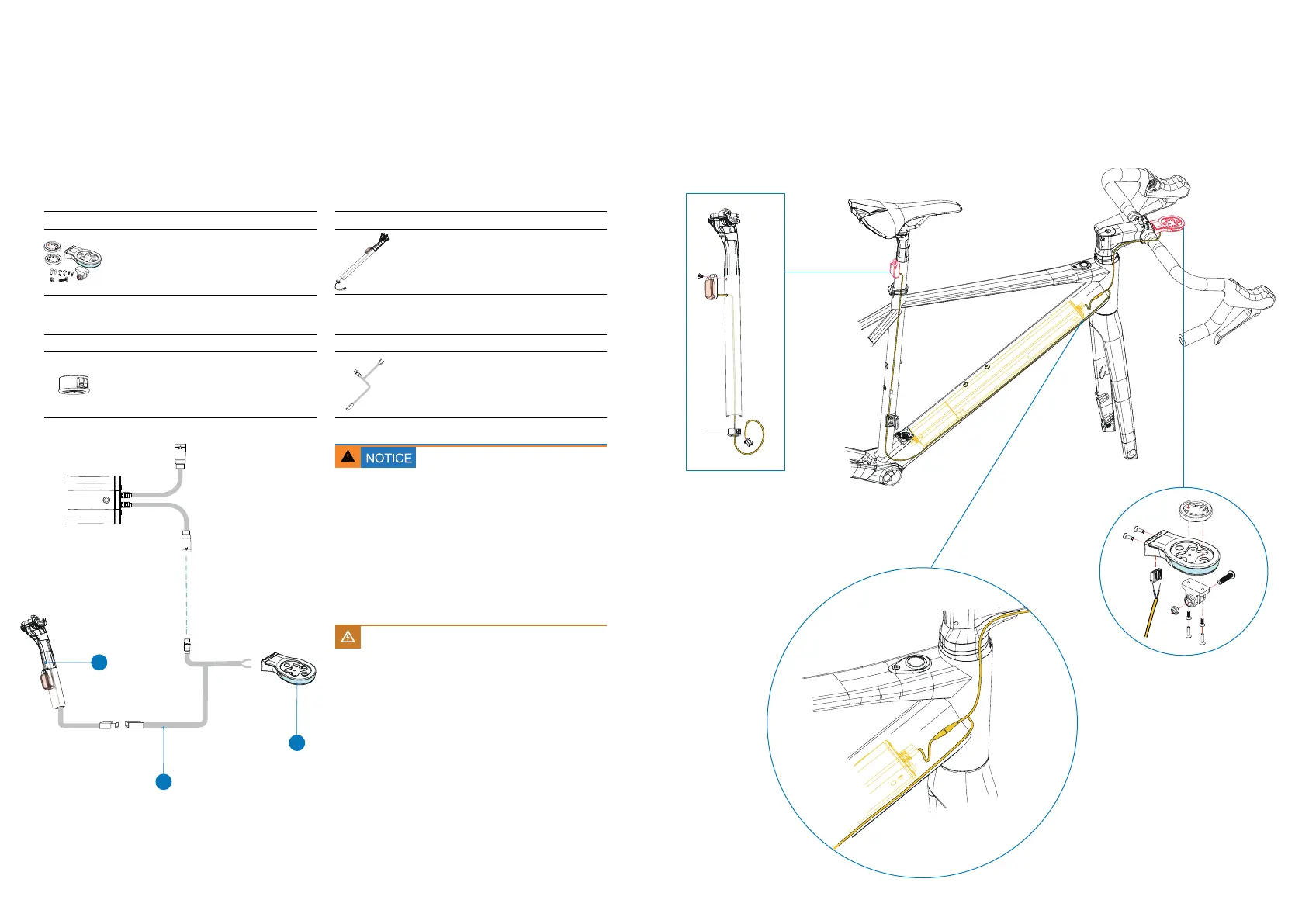

COMPONENTS DIAGRAM LIGHTS CABLE ROUTING
The installation and replacement of
lights or the lights cable on Gain may
require the removal and assembly of
several key components of the bicycle,
such as the fork, the chainset and/or
the internal battery, and are therefore
beyond the mechanical knowledge of
must users. Always take your Orbea bi-
cycle to an authorized Orbea dealer for
the installation or replacement of these
components.
Always take the necessary precautions
when working with electric components
to avoid electric shocks and damage to
the components.
Connect all components in the correct
way to avoid short circuits and exposu-
re to elements.
Cover any crimped cable connections
(if there were any) with heat shrink
tubing or electrical tape to avoid short
circuits.
43
46
44
MAHLE X35
BATTERY
43 OC COMPUTER MOUNT. INTEGRATED LIGHT. 6V
ART Nº: X1490000 QTY.
COMPUTER MOUNT. INTEG. LIGHT
1
GARMIN/WAHOO ADAPTER
1
CAMERA BRACKET
1
FACEPLATE M3x10 FIXING BOLT
1
45 RUBBER PLUG 27.2
LIGHT CABLE GUIDE
ART Nº: X1280000 QTY.
RUBBER PLUG 27.2 LIGHT CABLE GUIDE
1
44 GAIN SEATPOST 27.2 350mm + LEZYNE REAR
STVZO LIGHT
ART Nº: X1273500 QTY.
GAIN SEATPOST 27.2 350mm + LEZYNE
4'#4568<1.+)*6
1
46 MAHLE X35 LIGHTS CABLE. 2 LIGHTS
BARE CABLE (F) + JST CONNECTOR (R)
ART Nº: X1320000 QTY.
MAHLE X35 LIGHTS CABLE. 2 LIGHTS
BARE CABLE (F) + JST CONNECTOR (R)
1
45
