Orbea Keram MTB User Manual

BLUE PAPER KERAM BOSCH GEN4 20204 | ORBEA ORBEA | 5 TECHNICAL MANUAL
SIZE S-27,5” M-29” L-29” XL-29”

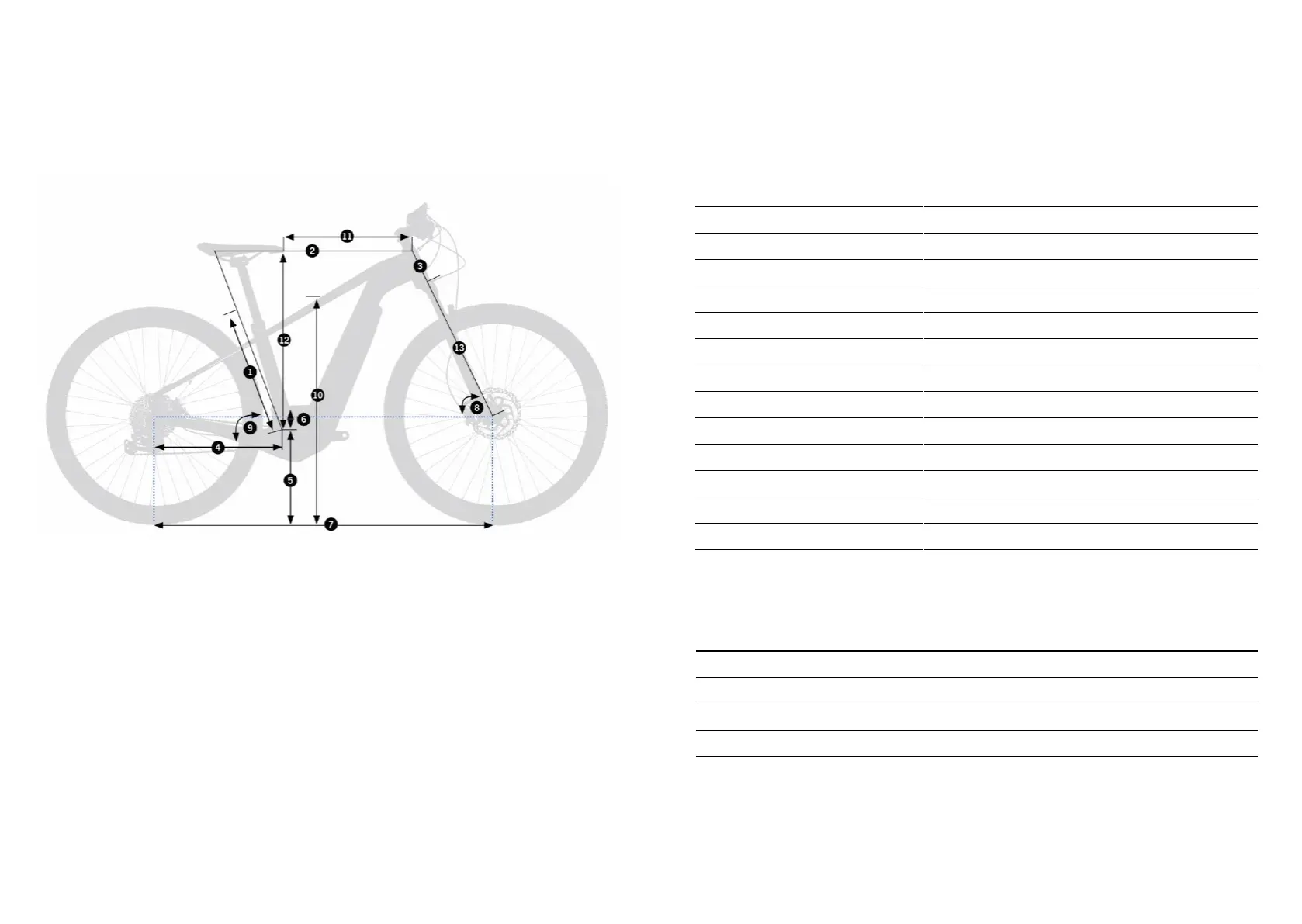

1 - Seat tube (c-t) 400 405 457 515
2 - Top tube (eff) 538 569 603 638.4
3 - Head tube 105 114 133 158
4 - Chainstay 475 475 475 475
5 - Bb height 307 313 313 313
6 - Bb drop 43 63 63 63
7 - Wheelbase 1112 1149 1173 1210
8 - Head angle 67º 67º 68º 68º
9 - Seat angle 73º 73º 73º 73º
10 - Standover heigh 798 825 861 893
11 - Reach 355 375 402 430
12 - Stack 600 636 659 752
13 - Fork length 518 530 530 530
GEOMETRY & ERGONOMY
HEIGHT (CM) HEIGHT (IN) SIZE
150-165 59.1”-65.0” S-27.5”
165-175 65.0”-68.9” M-29”
175-185 68.9”-72.8” L-29”
185-195 72.8”-76.8” XL-29”
* The sizing measurements are orientative.
* The headtube angle measurement on MTB, Asphalt and Comfort models may change slightly depending on the
travel of the fork specicated.
