BLUE PAPER KERAM BOSCH GEN4 20208 | ORBEA ORBEA | 9 TECHNICAL MANUAL

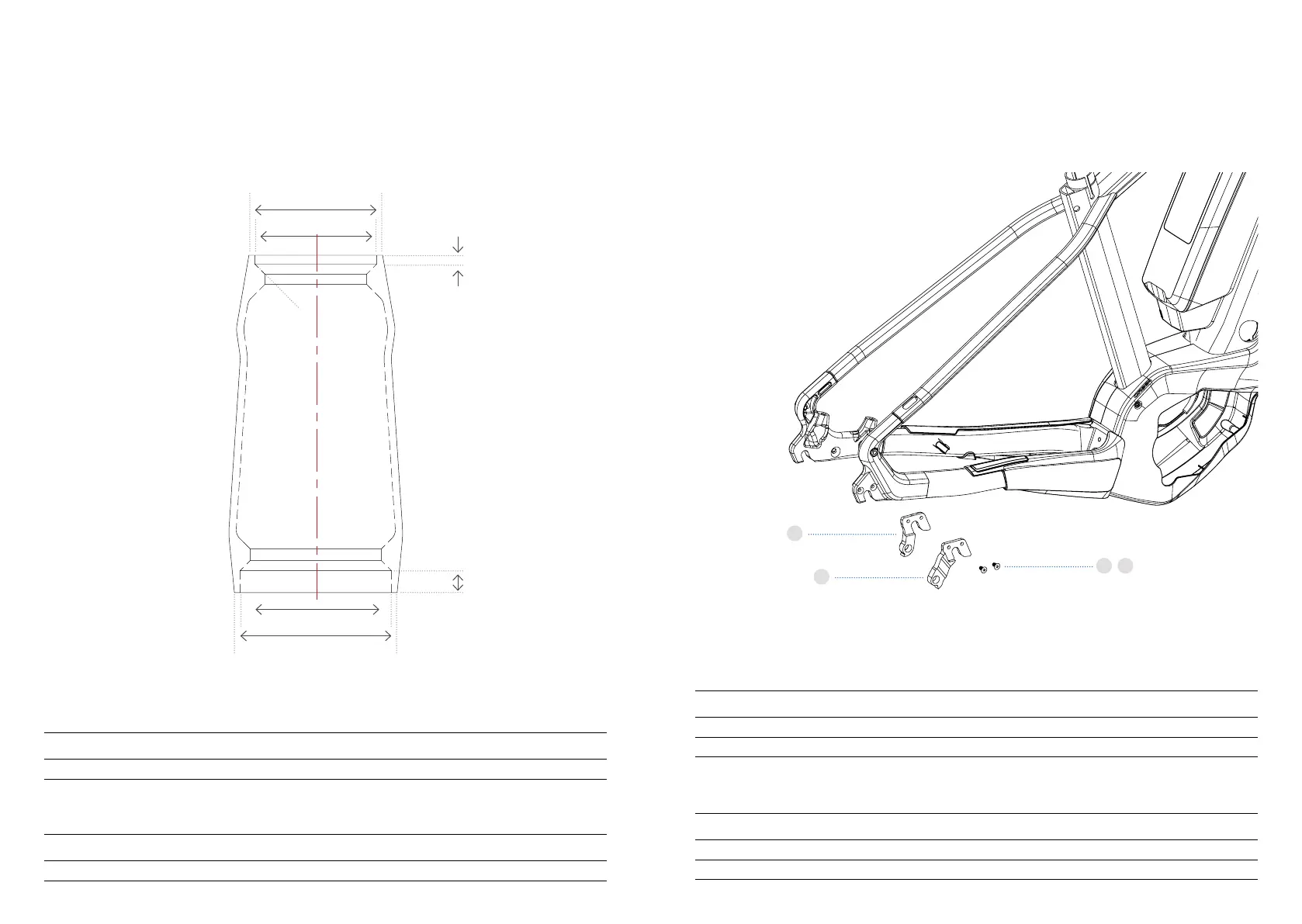

HEADTUBE AND HEADSET REAR DERAILLEUR
3
7.5
Ø 46
Ø 52.1
Ø 56
Ø 42
45º
HEADSET 1 1/8-1 1/2 INTEGRATED (INCLUDES TOPCAP AND STARNUT)
KIT Nº: Y0000127 QUANTITY
HEADSET 1 1/8-1 1/2 INTEGRATED
1
QR STANDARD REAR DER. HANGER
01 KIT Nº: Y0000117 QUANTITY
1.1
QR STANDARD REAR DER. HANGER
1
1.2
BOLT M4x9
2
QR DIRECT MOUNT REAR DER. HANGER
13 KIT Nº: Y0000118 QUANTITY
13.1
QR DM REAR DER. HANGER
1
13.2
BOLT M4x9
2
1 1/8 LOWER BEARING ADAPTOR (FOR 1 1/8 STRAIGHT STEERER TUBE FORKS)
ART Nº: 14031591 QUANTITY
1 1/8 LOWER BEARING ADAPTOR
1
1.1
13.1
13.2 1.2
