BLUE PAPER KERAM BOSCH GEN4 202010 | ORBEA ORBEA | 11 TECHNICAL MANUAL
KERAM 19 SEATPOST CLAMP
02 ART Nº: 11160252 QUANTITY
KERAM 19 SEATPOST CLAMP
1
LEFT CHAINSTAY PROTECTOR
03 KIT Nº: Y0000224 QUANTITY
3.1
LEFT CHAINSTAY PROTECTOR
1
3.2
BOLT M4x25
1
RIGHT CHAINSTAY PROTECTOR
04 KIT Nº: Y0000225 QUANTITY
4.1
RIGHT CHAINSTAY PROTECTOR
1
4.2
BOLT M4x25
1
CHARGING PORT RUBBER PROTECTOR
05 ART Nº: 11000468 QUANTITY
CHARGING PORT RUBBER PROTECTOR
1
BATTERY KEYHOLE RUBBER PROTECTOR
06 ART Nº: 11000467 QUANTITY
BATTERY KEYHOLE RUBBER PROTECTOR
1
BATTERY COVER KIT
07 KIT Nº: Y0000226 QUANTITY
7.1
BATTERY COVER KERAM 19 BLACK
1
7.2
BATTERY COVER LOCK MALE
1
7.3
BATTERY COVER LOCK FEMALE
1
7.4
WASHER 4,5mm
1
7.5
WASHER M6
1

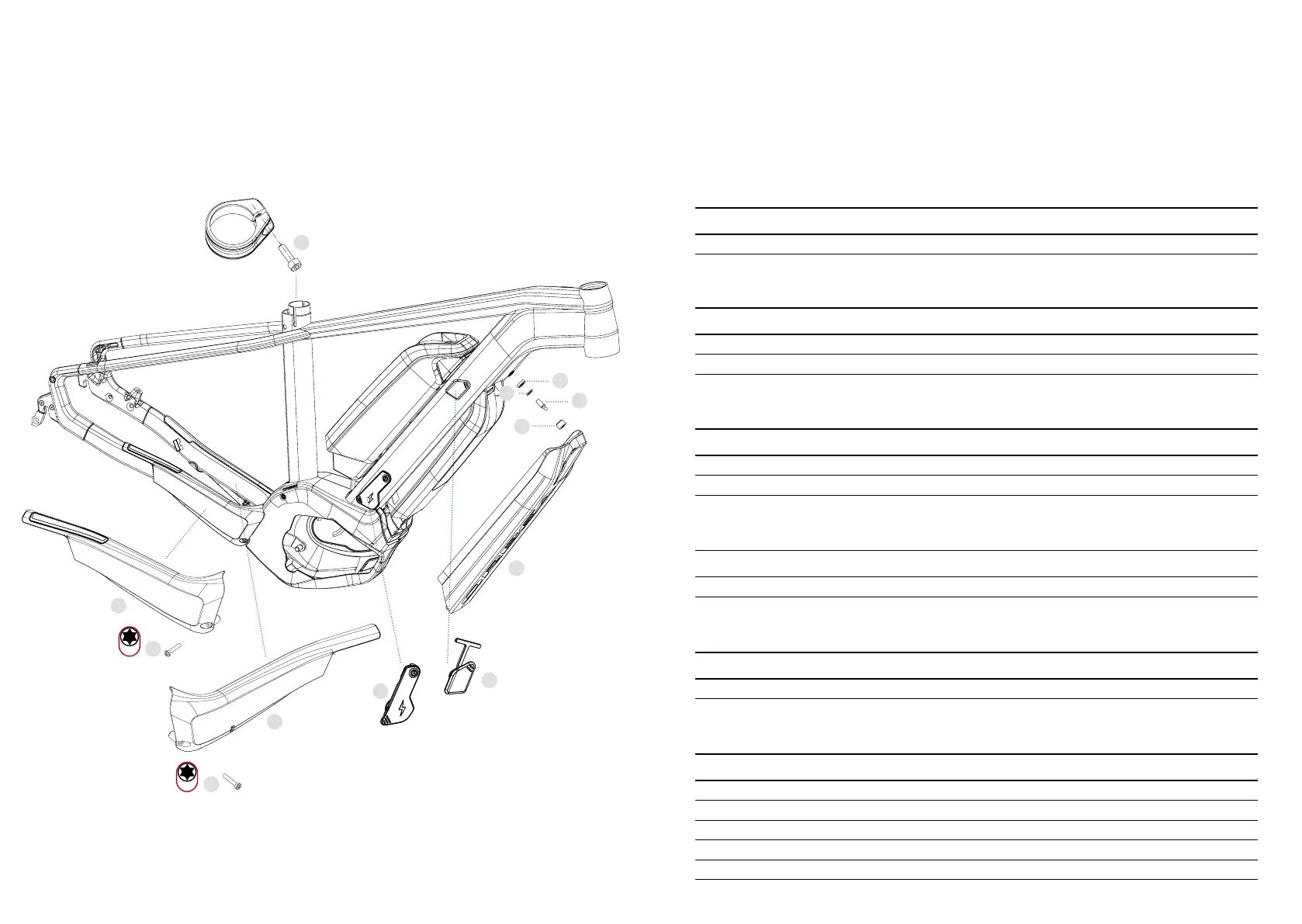

PROTECTORS
2
4.1
3.1
5
6
7.1
7.4
7.2
7.3
3.2
4.2
1 Nm
20
1 Nm
20
7.5
