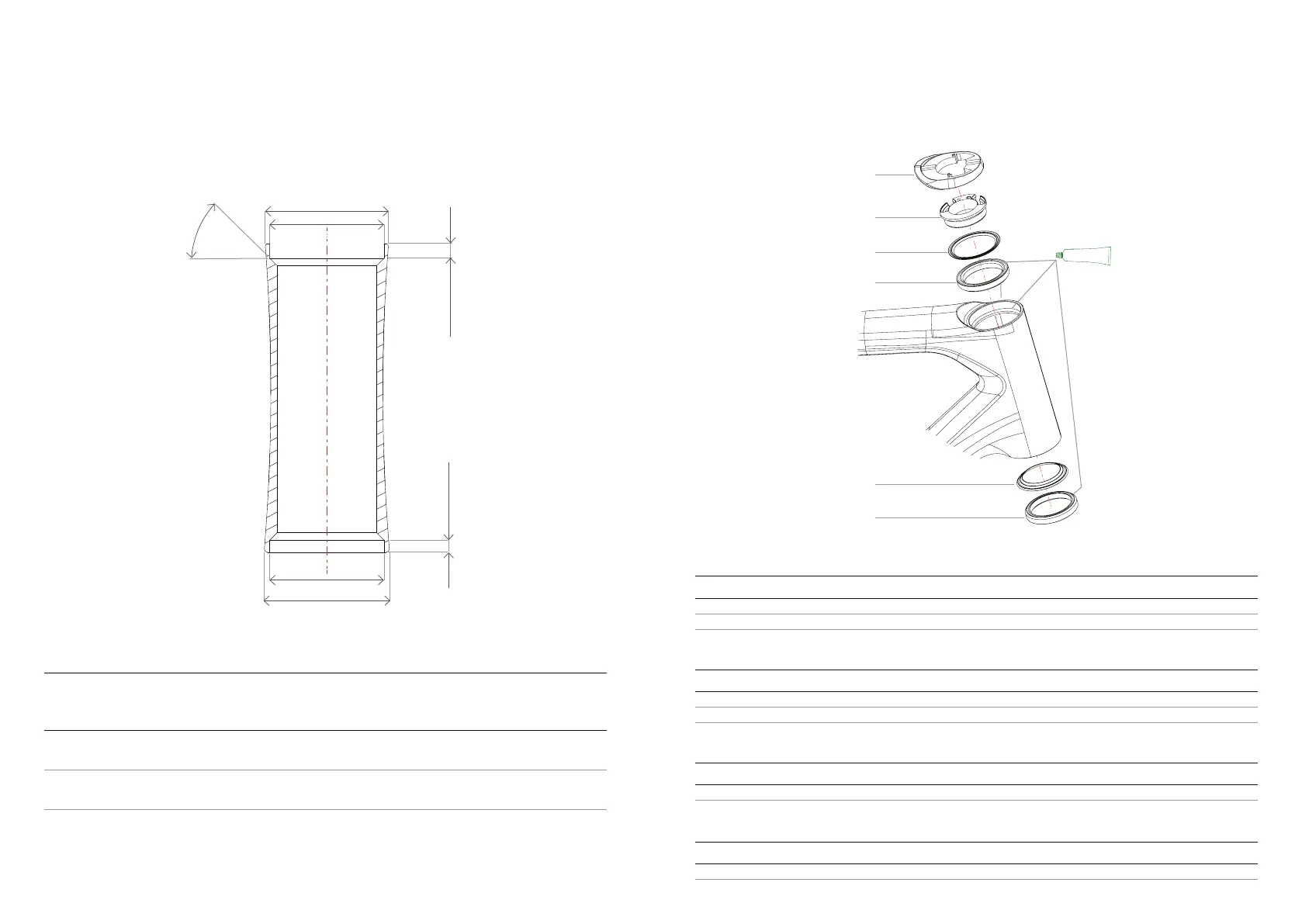

TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202120 | ORBEA ORBEA | 21
EN
* ID: Internal headtube diameter.
** OD: External headtube diameter.
HEADSET
HEADTUBE DIMENSIONS
01 HEADSET ICR BEARING KIT
ART Nº: X043 QUANTITY
1.1 TOP BEARING 1-1/2 INTERN. CABLING 1
1.1 BOTTOM BEARING 1-1/2 1
02 HEADSET DUST SEAL KIT
ART Nº: X044 QUANTITY
2.1 TOP DUST SEAL H/SET ROAD 1
2.1 BOTTOM DUST SEAL H/SET ROAD 1
03 COMPRESSION RING INTERNAL CABLING. ROAD
ART Nº: X045 QUANTITY
COMPRESSIÓN RING INTERNAL CABLING. ROAD 1
04 FRAME HEADSET COVER. ORCA OMR
ART Nº: X046 QUANTITY
FRAME HEADSET COVER. ORCA OMR 1
HEADSET ASSEMBLY
AND SPARES
Ø 58
Ø 58
Ø 52.1 ± 0.05
Ø 52.1 ± 0.05
45º
8.3
+0
-0.2
8.3
+0
-0.2
GREASE
1.2
4
3
2.1
2.2
1.1
Headset
URGEKƂECVKQPU
TYPE ID* OD**
Bearing
angle
Compression ring/
crown race
contact angle
SHIS
CODE
Bearing
dimensions
TOP
1-1/8"
Integrated
52.1mm 58mm 45º 45º IS52/42
Angular contact
bearing 42x52x7mm
BOTTOM
1-1/2"
Integrated
52.1mm 58mm 45º 45º IS52/40
Angular contact
bearing 40x52x7mm

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
