TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202126 | ORBEA ORBEA | 27
EN

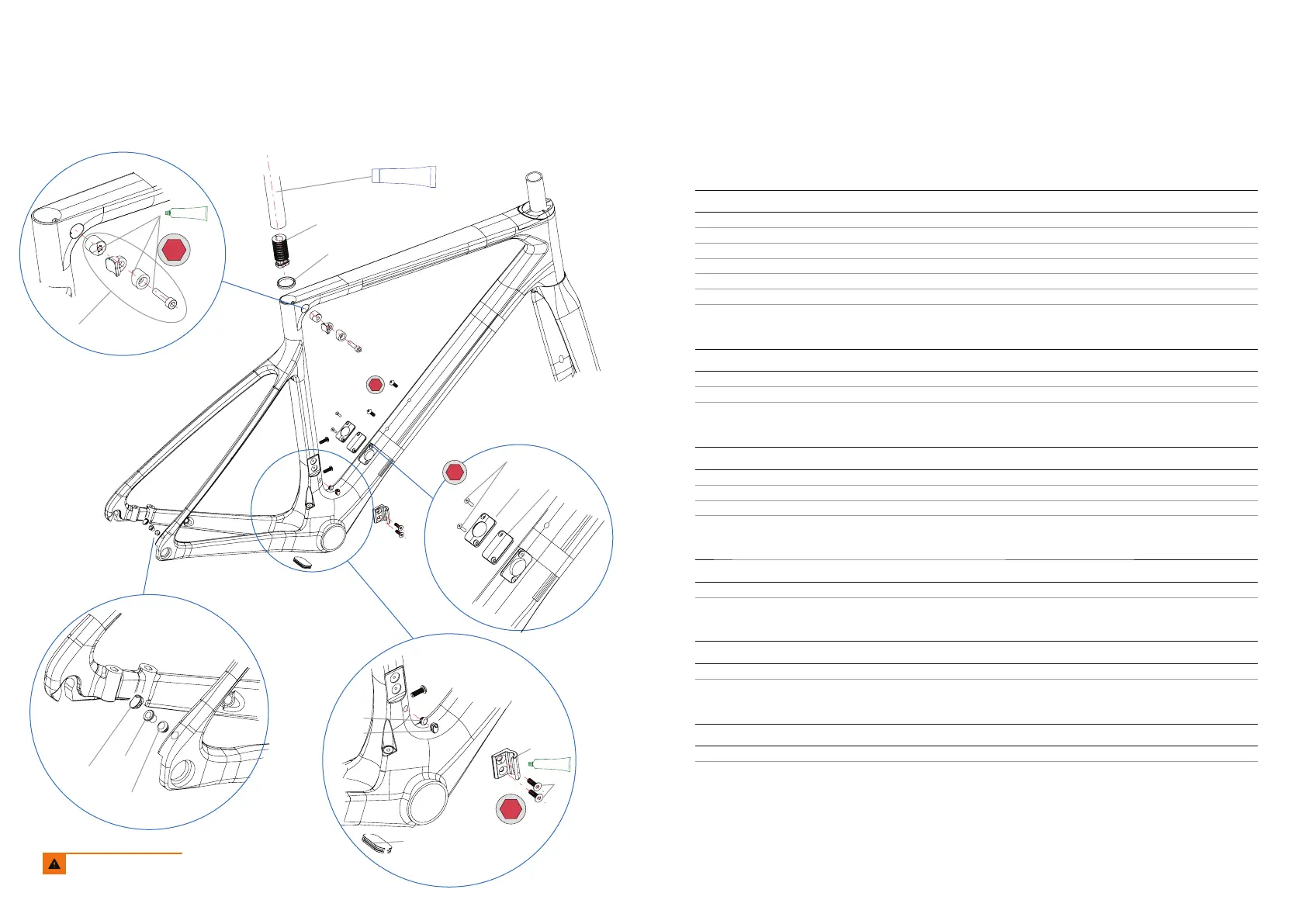

FRAME HARDWARE
Always follow the recommended
torque settings.
15 GROMMET/CABLEGUIDE KIT ORCA OMR MECHANICAL/DI2/ETAP
ART Nº: X057 QUANTITY
15.1 BLIND GROMMET FRONT DER. MECH/ETAP 1
15.2 DI2 GROMMET FRONT DER. 1
15.3 SEATSTAY STOP MECHANICAL 1
15.4 DI2 SEATSTAY GROMMET 1
15.5 BLIND GROMMET SEATSTAY ETAP 1
15.6 BB COVER 1
16 FRONT DERAILLEUR HANGER
ART Nº: X058 QUANTITY
16.1 FRONT DER. HANGER 1
16.2 BOLT M5x16 2
17 DOWNTUBE COVER KIT
ART Nº: X059 QUANTITY
17.1 DI2 JUNCTION COVER DT 1
17.2 BLIND DT COVER MECH/ETAP 1
17.3 BOLT M3x12 2
18 SEATPOST WEDGE ORCA OMX/OMR
ART Nº: X060 QUANTITY
SEATPOST WEDGE ORCA OMX/OMR 1
19 RUBBER COLLAR SEATPOST 27.2
ART Nº: X061 QUANTITY
RUBBER COLLAR SEATPOST 27.2 1
20 DI2 BATTERY SEATPOST HOLDER 27.2
ART Nº: X062 QUANTITY
DI2 BATTERY SEATPOST HOLDER 27.2 1
3
4 N.m
FIBER CARBON GRIP
5
8 N.m
2
3 N.m
18
20
19
17.3
17.1
17.2
15.4
15.3
15.5
3
4 N.m
15.1
16.1
16.2
15.2
15.6
GREASE
GREASE

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
