TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202130 | ORBEA ORBEA | 31
EN
CABLING

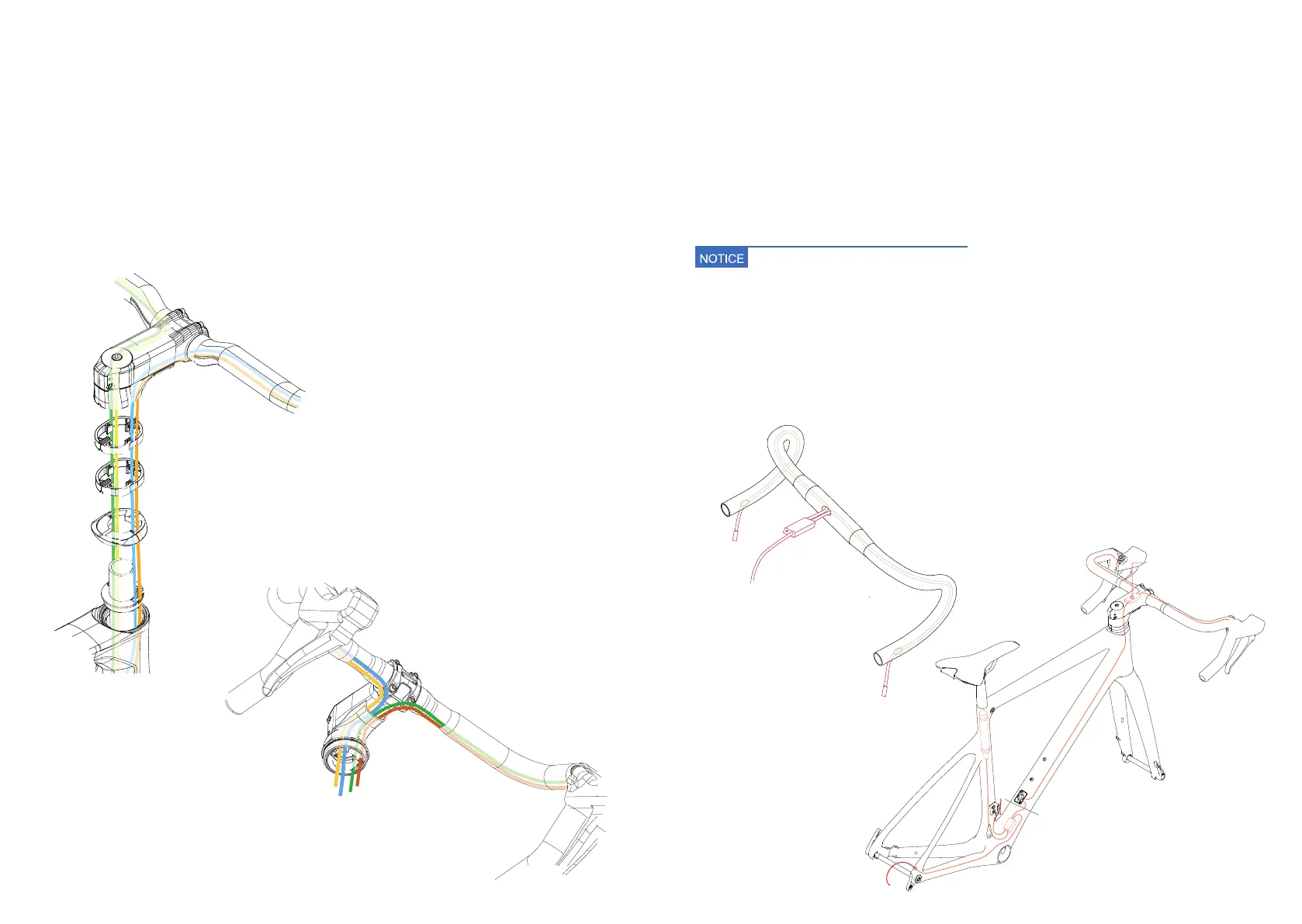

INTERNAL CABLE ROUTING THROUGH HEADSET
AND TOP BEARING ADAPTOR
DI2 CABLE ROUTING
EW-RS910
SM-JC41
(inside stem)
To Shimano
DI2 STi lever
SM-JC41
(inside stem)
BT-DN110
EW-RS910
WITH OC1 STEM
WITH ICR01 STEM
Di2 internal cable routing in handlebars OC1 Alloy, OC2
Alloy, OC2 Carbon, OC1 AllRoad Alloy.
Housing the Shimano SM-JC41 Di2 junction
inside the stem is only possible in models
with the ICR01 stem.
In models with the OC1 road stem, the Di2
cables will be routed externally on the hand-
NGDCTCPFVJG&KLWPEVKQPYKNNDGƂZGFWP-
der the stem with the Shimano silicon band.

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
