Orbea ORCA M20 User Manual

TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202124 | ORBEA ORBEA | 25
EN

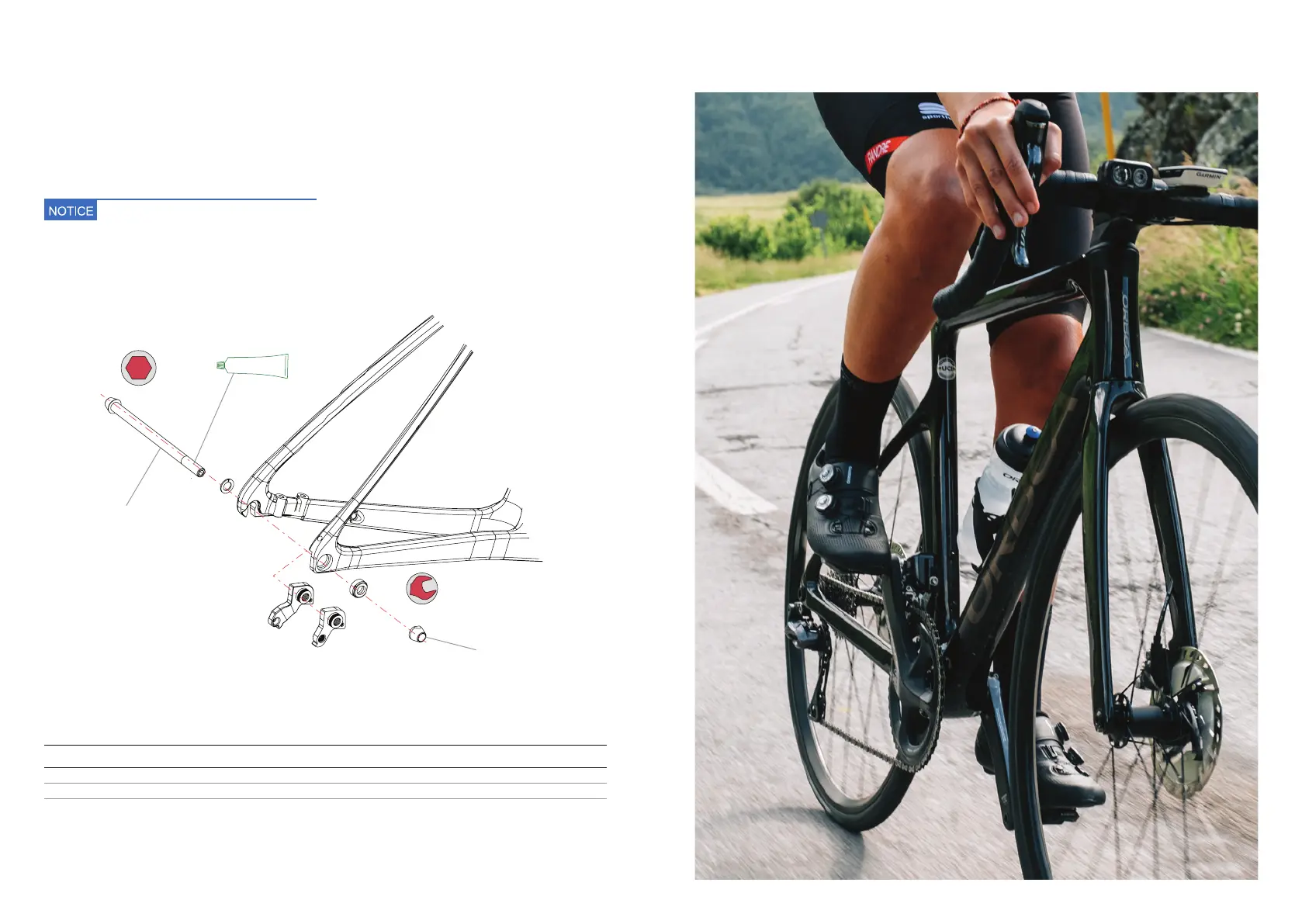

14 TRAINER AXLE. DOUBLE LEAD 2P1.0x35mm THREAD
ART Nº: X056 QUANTITY
14.1 TRAINER AXLE 12x183x2P1.0x35mm 1
14.2 TRAINER AXLE NUT 12mm 1
TRAINER AXLES COMPATIBILITY
3
5
4 N.m
17
6
10 N.m
GREASE
14.1
14.2
To use your Orca OMR on a trainer, a dou-
ble-lead 2Px1.0 thread pitch trainer axle
must be used. Installing axles with a diffe-
rent thread pitch will damage the frame.

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
