TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202134 | ORBEA ORBEA | 35
EN
The ICR01 stem is available in lenght from 80mm to 130mm in 10mm increments.
The bottom cover is specic for each stem lenght.
30 ICR01 STEM HARDWARE KIT (LENGHT SPECIFIC BOTTOM COVER NOT INCLUDED)
ART Nº: X066 QUANTITY
30.1 BOLT M6x40 STEM TOPCAP 1
30.2 STEM TOPCAP 1
30.3 BOLT M5x15 STEERER AND FACEPLATE 6
30.4 BOLT M3x10 2
30.5 LOGO ORBEA FACEPLATE 1
STEMS
ASSEMBLY AND SPARES.

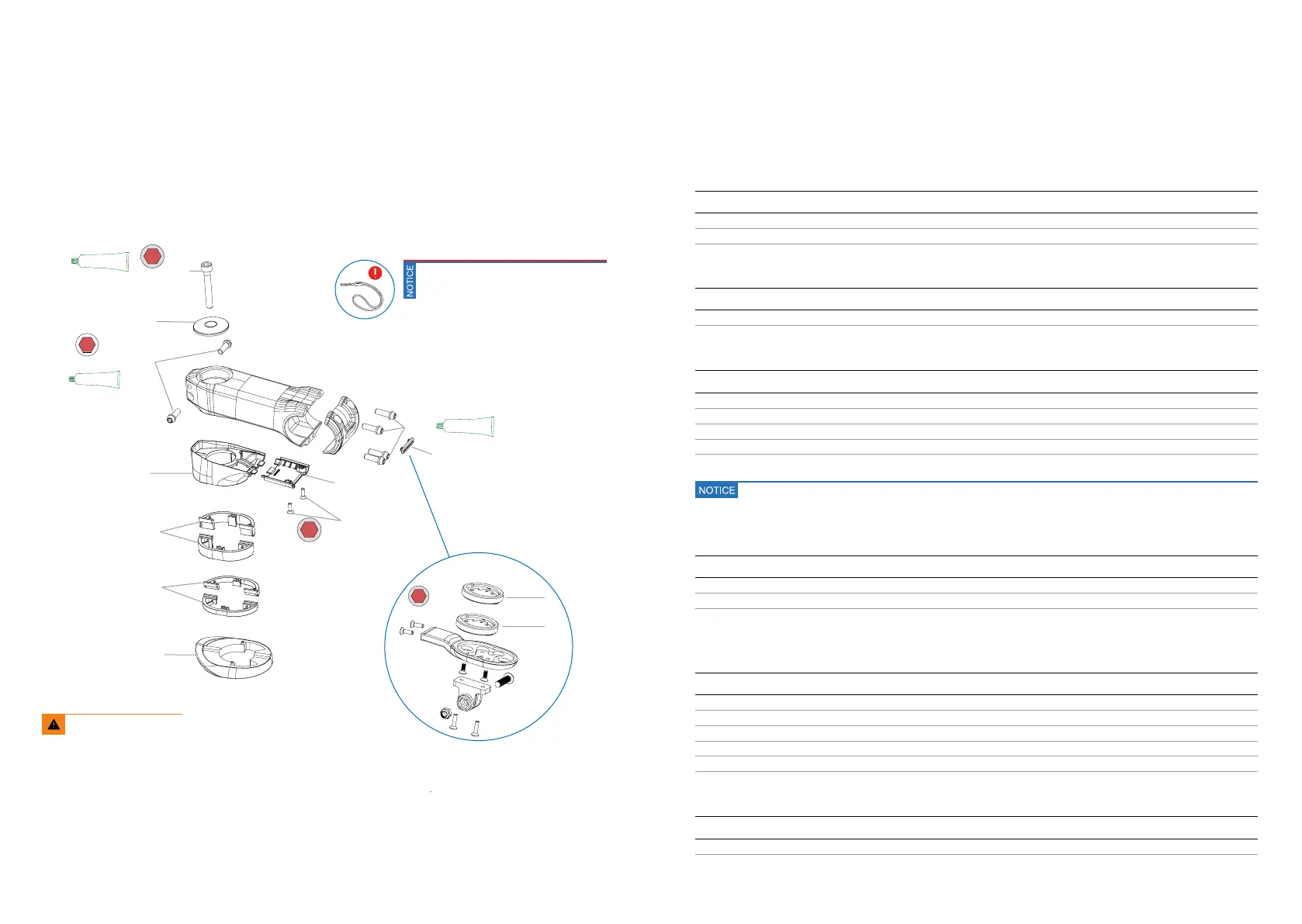

ICR01 STEM
24 BOTTOM COVER LENGHT SPECIFIC ICR01
ART Nº: X067 QUANTITY
24.1 BOTTOM COVER ICR01 (length specic)* 1
24.2 BOLT M3x10 2
21 HEADSET SPACERS KIT ICR STEM
ART Nº: X063 QUANTITY
21.1 ICR01 STEM SPACER 10mm 2
21.2 ICR01 STEM SPACER 5mm 2
22 ANGLE TOP COVER ICR01 STEM
ART Nº: X064 QUANTITY
ANGLE TOP COVER ICR01 STEM 1
23 COMPUTER HOLDER FACEPLATE KIT. ROAD ICR/OC1/OC2 STEMS
ART Nº: X065 QUANTITY
CAMERA BRACKET 1
GARMIN+WAHOO ADAPTER 1
COMPUTER BRACKET FACEPLATE 1
BOLT M3x10 2
4
6 N.m
2
2 N.m
2
30.1
30.2
30.3
22
21.1
21.2
4
GREASE
24.2
23
GARMIN
WAHOO
30.3
30.5
24.1
2
2 N.m
GREASE
04 HEADSET FRAME COVER. ORCA OMR
ART Nº: X046 QUANTITY
HEADSET FRAME COVER. ORCA OMR 1
* Available for each stem length: 80mm, 90mm, 100mm, 110mm, 120mm, 130mm.
5
6 N.m
Always follow the recommended
torque settings.
Orbea, as all computer manufacturers, recom-
mends to use the tether included with the computer
around the handlebar to avoid damage to the com-
puter or its loss in case of a fall or an accident or if
the device detaches from the mount.
GREASE
