Orbea ORCA M20 User Manual

TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202138 | ORBEA ORBEA | 39
EN
STEMS

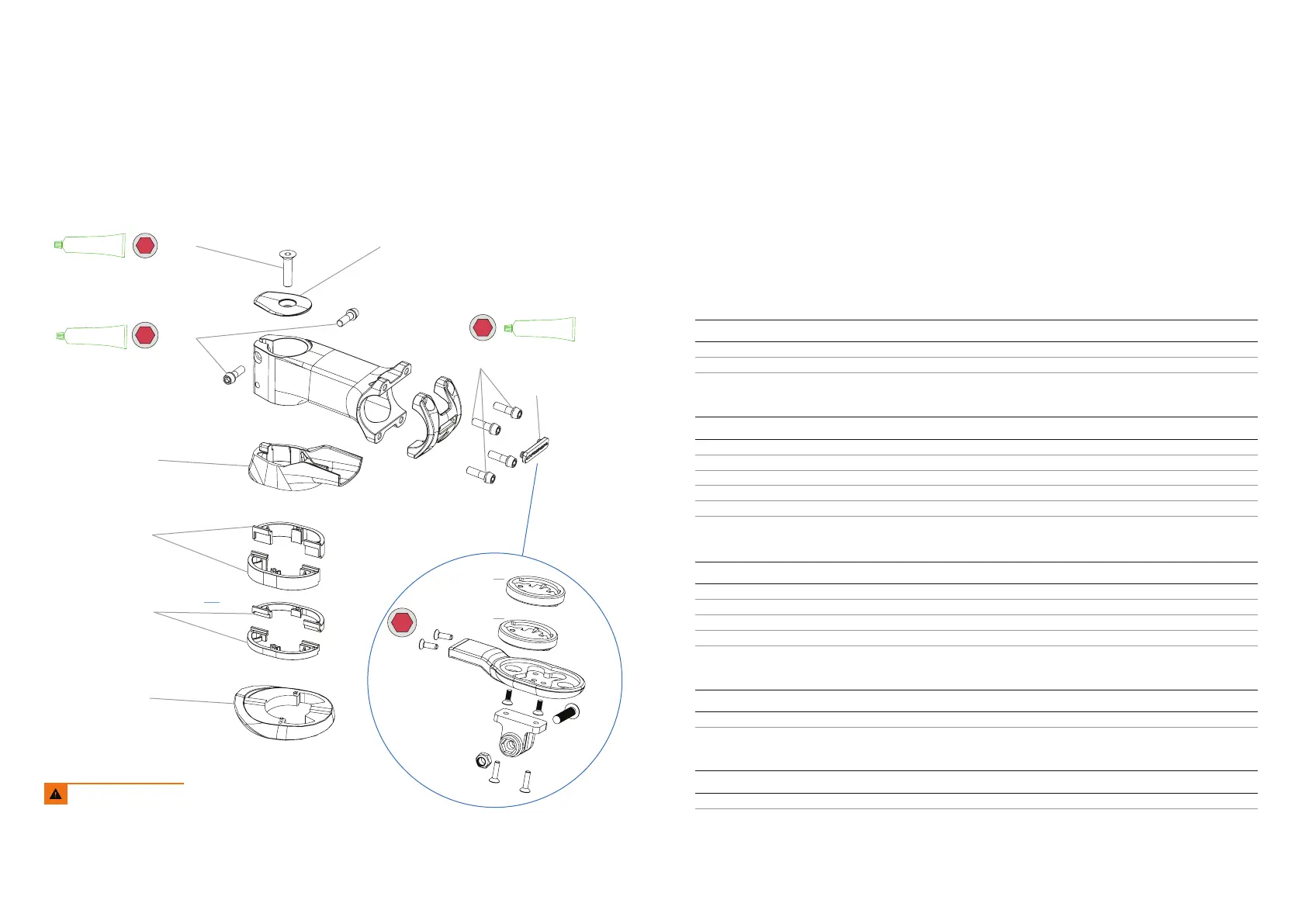

ASSEMBLY AND SPARES. OC1 STEM
4
5 N.m
GREASE
38.1 38.2
38.5
38.3
40
37.1
37.2
41
38.3
2
2 N.m
GREASE
4
6 N.m
38.4
GARMIN
WAHOO
39
4
6 N.m
GREASE
Always follow the recommended
torque settings.
37 HEADSET SPACERS KIT ICR STEM OVAL
ART Nº: X063 QUANTITY
37.1 HEADSET SPACER ICR01 10mm 4
37.2 HEADSET SPACER ICR01 5mm 4
38 HARDWARE KIT STEM ROAD OC1
ART Nº: X069 QUANTITY
38.1 BOLT M6x35 TOPCAP 1
38.2 TOPCAP STEM ROAD OC1 1
38.3 BOLT M5x15 STEERER AND FACEPLATE 6
38.4 BOLT M3x10 2
38.5 LOGO ORBEA FACEPLATE 1
39 COMPUTER HOLDER FACEPLATE KIT. ROAD ICR/OC1/OC2 STEMS
ART Nº: X065 QUANTITY
CAMERA BRACKET 1
GARMIN+WAHOO ADAPTER 1
COMPUTER BRACKET FACEPLATE 1
BOLT M3x10 2
40 LOWER COVER INTERNAL CABLING ROAD OC1. OVAL
ART Nº: X070 QUANTITY
LOWER COVER INTERNAL CABLING ROAD OC1. OVAL 1
41 HEADSET FRAME COVER. ORCA OMR
ART Nº: X046 QUANTITY
HEADSET FRAME COVER. ORCA OMR 1

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
