Orbea ORCA M20 User Manual

TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202116 | ORBEA ORBEA | 17
EN

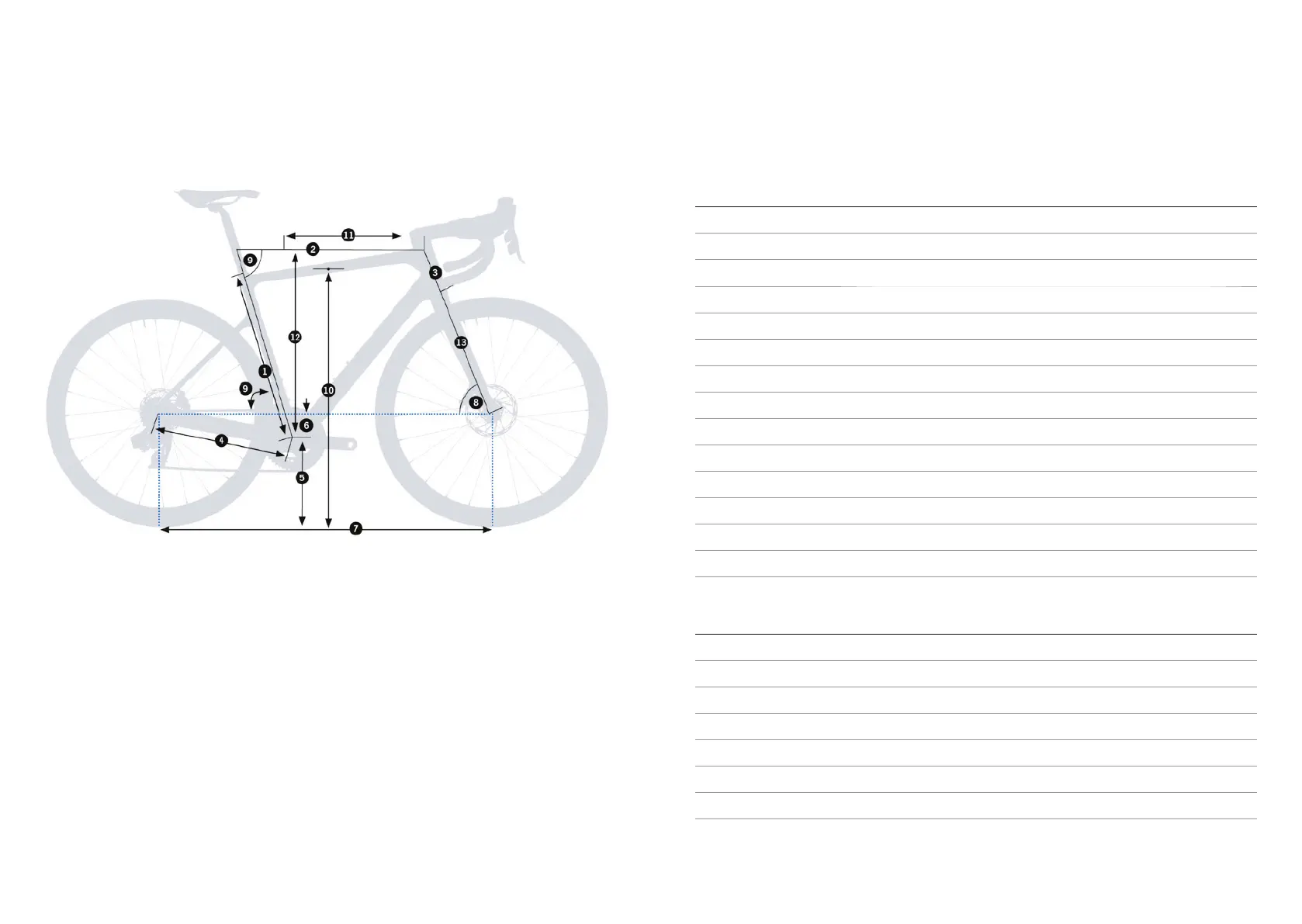

GEOMETRY AND SIZING
ORCA OMR
HEIGHT (CM) HEIGHT (IN) SIZE*
155-160 61.1”-63.0” 47
160-166 63.0”-65.4” 49
167-172 65.7”-67.7” 51
173-179 68.1”-70.5” 53
180-185 70.9”-72.8” 55
186-191 73.2”-75.2” 57
192-207 75.6”-81.5” 60
SIZES 47 49 51 53 55 57 60
1 - Seat Tube (C-T)
440 460 480 500 520 540 570
2 - Top Tube (EFF)
510 523 535 548 560 576 590
3 - Head Tube
105 113 130 148 168 186 213
4 - Chainstay
408 408 408 408 408 408 408
5 - BB Height
267 267 267 269 269 269 269
6 - BB Drop
72 72 72 70 70 70 70
7 - Wheelbase
972 976 980 981 991 1002 1016
8 - Head Angle
71º 71,5º 72,2º 72,8º 73º 73,2º 73,2º
9 - Seat Angle
74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - Standover
735 747 766 787 807 825 851
11 - Reach
367 372 377 382 388 395 401
12 - Stack
513 522 540 559 579 597 623
13 - Fork Length
370 370 370 370 370 370 370
14 - Rake
48 48 48 43 43 43 43
* These sizing measurements are an approximate guide. The most effective method to choose the right size for you is to try the
bicycle at one of our authorized dealers.

Orbea ORCA M20 Specifications

General

Seatpost	Orbea OC2 Carbon
Frame Material	Carbon
Fork	Orbea Carbon Fork
Handlebar	Orbea OC2 Road, 31.8mm
Stem	OC2
Wheels	Vision Team 30 Disc
Saddle	Prologo Kappa
