TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202136 | ORBEA ORBEA | 37
EN

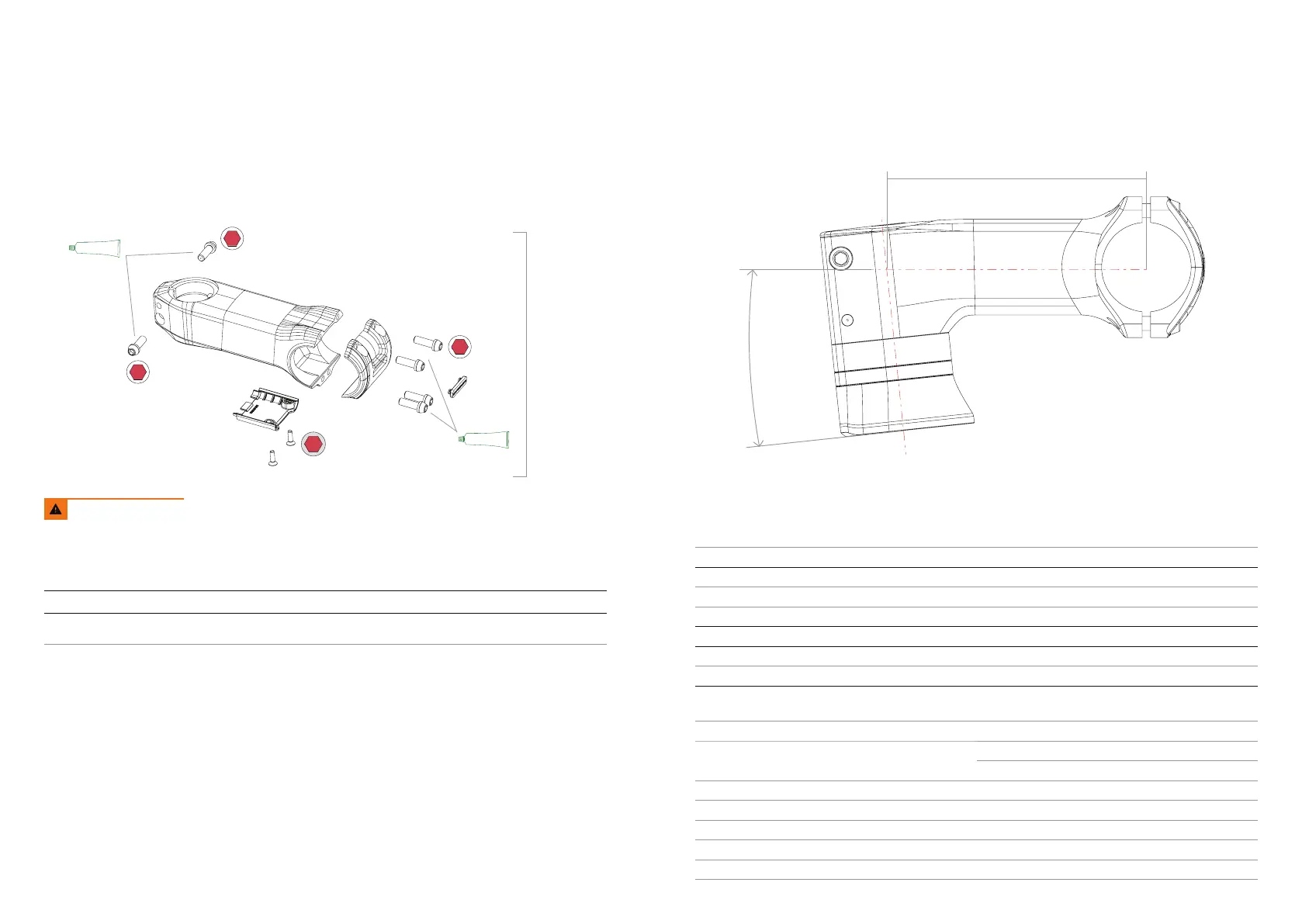

OC1 STEM ASSEMBLIES
ON ORCA OMR
MATERIAL ALUMINIUM
Ø STEERER TUBE 1” 1/8
Ø HANDLEBAR 31.8mm
STEERER TUBE CLAMPING HEIGHT
38mm
FRAME
Headtube maximum external Ø 58mm
Headset bearing external Ø
52mm
INTERNAL CABLING
2 gear outers and 2 brake outers
(with internal cabling lower cover and headset spacers)
SHIMANO DI2 Di2 junction outside of stem
COMPUTER HOLDER
On FACE PLATE
Max size computer GARMIN 1030
AVAILABLE LENGHTS (L) 80, 90, 100, 110, 120
TILT -2.5º
HEADSET SPACERS OOCPFOO1TDGC+%4URGEKƂE
TOPCAP 1TDGCURGEKƂE
WEIGHT 167gr (100mm)
OC1 ROAD STEM
WITH HEADSET INTERNAL CABLING
TILT -2.5°
L
STEMS
ICR01 STEMS
31 ICR01 ROAD STEM
ART Nº: X068 QUANTITY
+PENWFGUDQVVQOEQXGTUK\GURGEKƂECPFDQNVU/Z:
Angle cover and topcap not included
1
4
6 N.m
4
6 N.m
4
6 N.m
GREASE
GREASE
31
Always follow the recommended
torque settings.
2
2 N.m
* Available in lengths: 80mm, 90mm, 100mm, 110mm, 120mm, 130mm.
